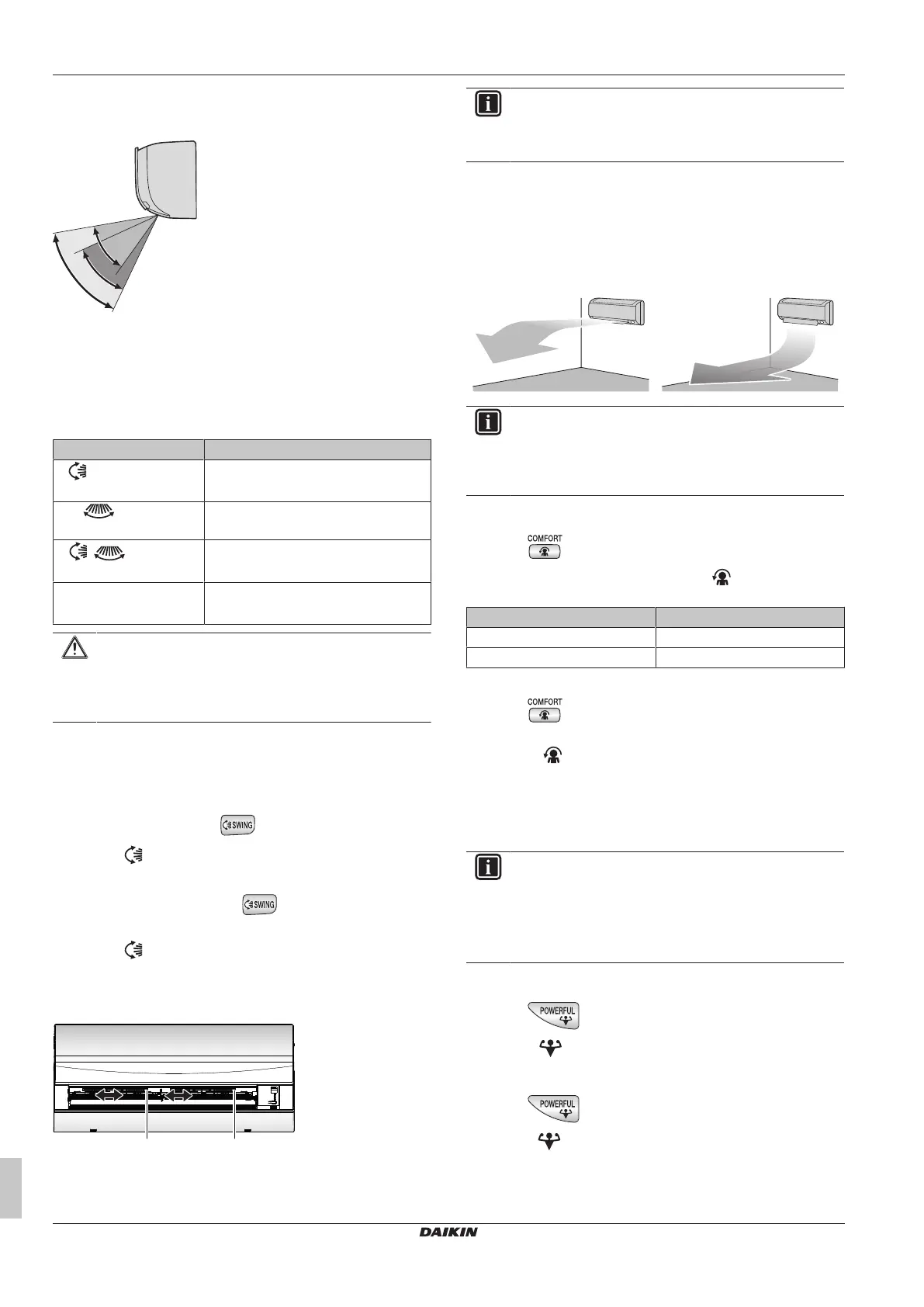

The movable range of the flap varies according to the operation
mode. The flap will stop at the upper position when the airflow rate is
changed to low during the up and down swing setting.
a
b
c
a Flap range in cooling or drying operation
b Flap range in hating operation
c Flap range in fan only operation
When. Adjust the airflow direction as desired.
What. The system directs the airflow differently, depending on the
user selection (swinging or fixed position). It does so by moving
horizontal blades (flaps) or vertical blades (louvers).
Setting Airflow direction
Vertical automatic
swing
Moves up and down.
Horizontal
automatic swing
Moves from side to side.
+ 3-D airflow
direction
Moves alternately up and down and
from side to side
[—] Stays in a fixed position.
CAUTION
ALWAYS use the wireless remote control or other user
interface (if applicable) to adjust the position of the flaps
and louvers. When the flaps and louvers are swinging and
you move them forcibly by hand, the mechanism will break.
The movable range of the flap varies according to the operation
mode. The flap will stop at the upper position when the airflow rate is
changed to low during the up and down swing setting.
To adjust the airflow direction
1 To use auto swing, press .
Result: will appear on the LCD.
Result: The flap (horizontal blade) will begin to swing.
2 To use fixed position, press when the flap reaches the
desired position.
Result: disappears from the LCD.
To adjust the louvers (vertical blades)
1 Hold 1 or both knobs and move the louvers.
aa
a Knobs
INFORMATION
When the unit is installed in a corner of a room, the
direction of the louvers should be facing away from the
wall. Efficiency will drop if a wall blocks the air.
5.3.4 Comfort airflow operation
This operation can be used in heating or cooling operation mode. It
will provide a comfortable wind that will NOT come in direct contact
with people. The system automatically sets the fixed airflow position
upward in Cooling and downward in Heating operation mode.
Cooling operation mode Heating operation mode
INFORMATION
Powerful and Comfort airflow operation CANNOT be used
at the same time. The last selected function takes priority.
If the vertical automatic swing is selected, Comfort airflow
operation will be cancelled.
To start/stop Comfort airflow operation
1 Press to start.
Result: The flap position will change, is displayed on the
LCD, and the airflow rate is set to automatic.
Mode Position of flap…
Cooling/Drying Up
Heating Down
Note: Comfort airflow operation is NOT available in Fan only mode.
2 Press to stop.
Result: The flap will return to the position from before the Comfort
airflow mode; disappears from the LCD.
5.3.5 Powerful operation
This operation quickly maximizes the cooling/heating effect in any
operation mode. You can get the maximum capacity.
INFORMATION
Powerful operation CANNOT be used together with Econo
and Comfort airflow operation. The last selected function
takes priority.
Powerful operation will NOT increase the capacity of the
unit if it already operates at maximum capacity.
To start/stop Powerful operation
1 Press to start.
Result: is displayed on the LCD. Powerful operation runs
for 20minutes; after that, operation returns to the previously set
mode.
2 Press to stop.
Result: disappears from the LCD.
