4.1 Removal of Panels
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points

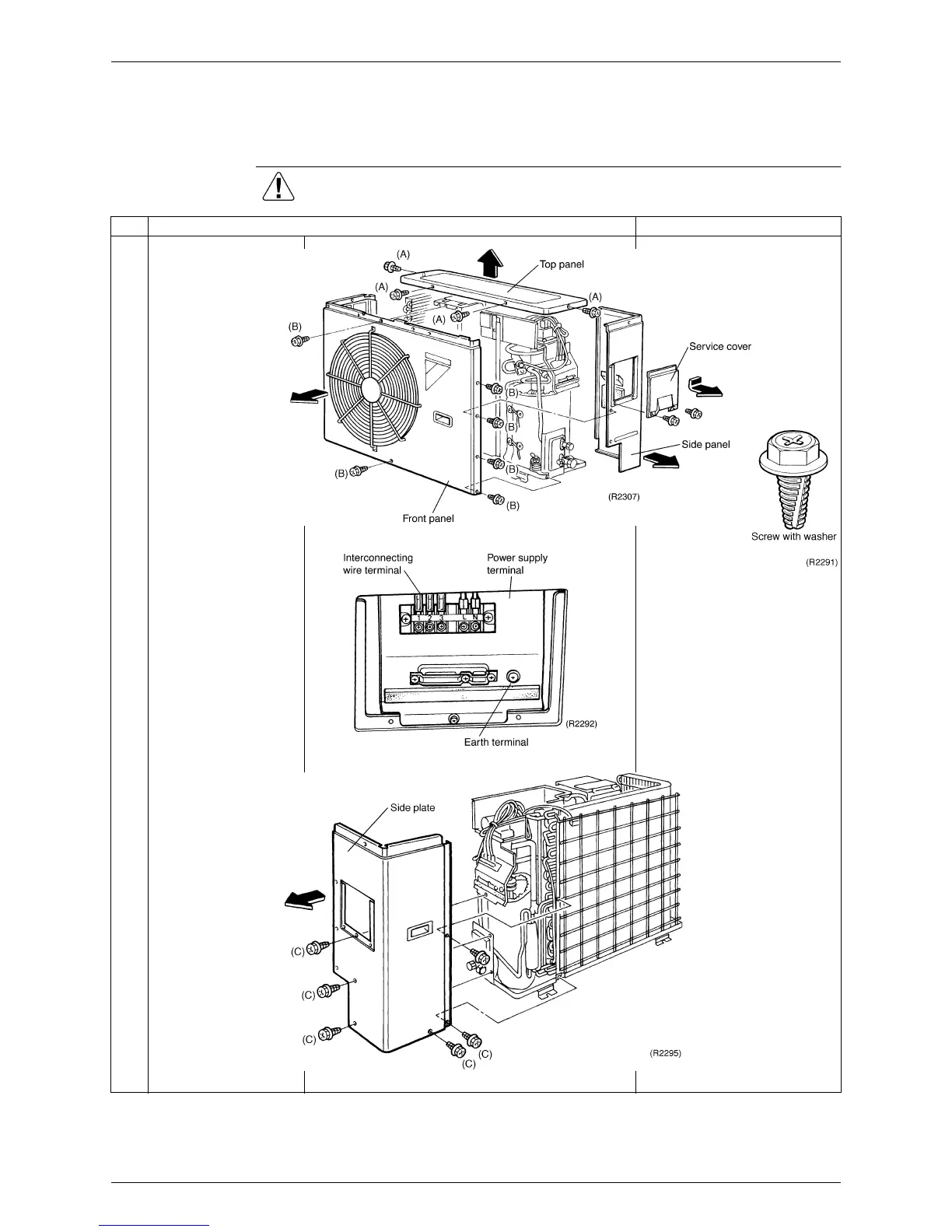

1
To dismount the top
panel, remove the
four mounting
screws (A).
2
To dismount the front
panel, remove the six
mounting screws (B).
3
To dismount the service
cover, remove the two
mounting screws.
4
To dismount the side
panel, remove the six
mounting screws (C).
