Daikin FTY25CVMA - Removal of Compressor

Si01-406 R50/60CV1A
Removal Procedure 179

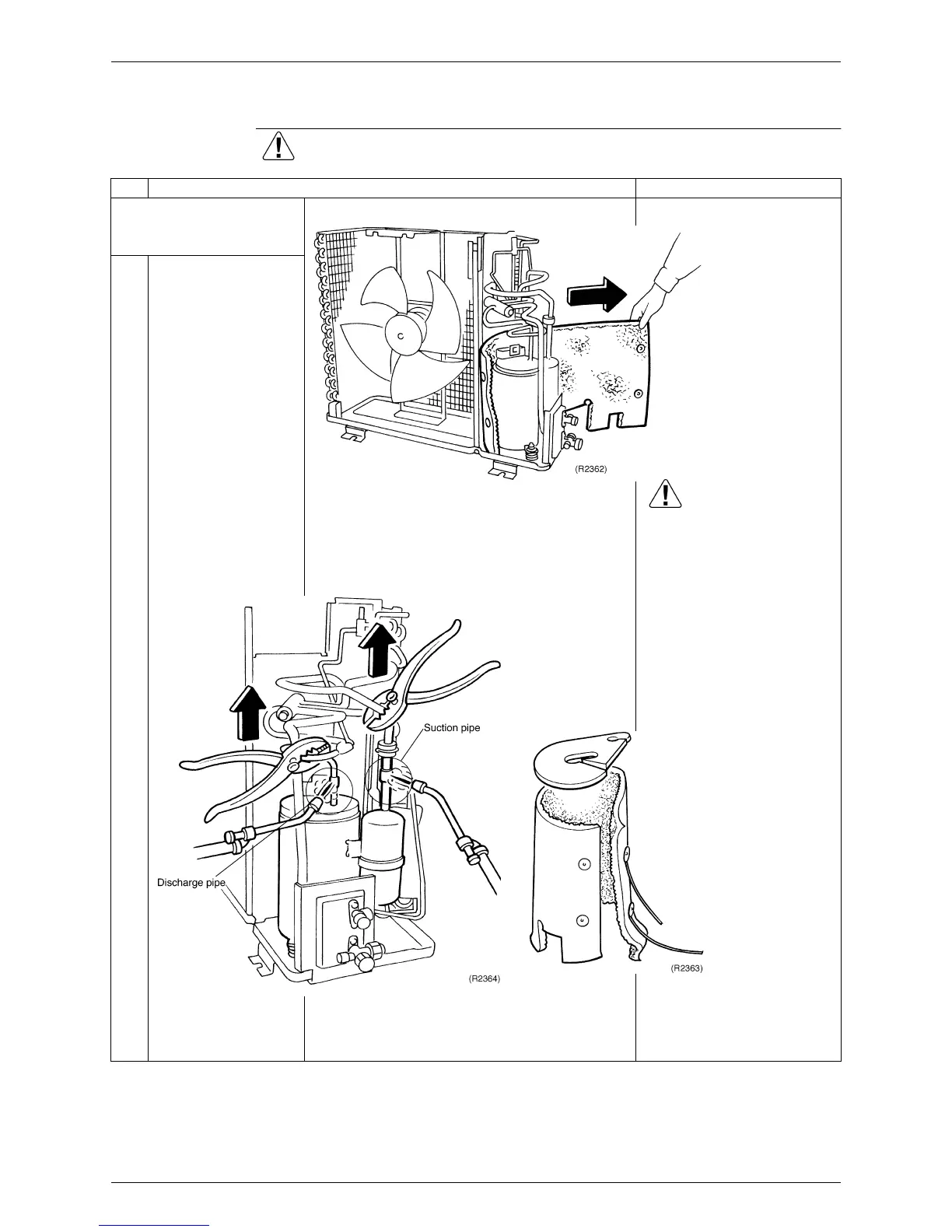

4.3 Removal of Compressor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points

Make sure that there is no
refrigerant in the unit
before disassembling.
WARNING
If refrigerant gas leaks during
servicing work, ventilate the
area. (If refrigerant gas
contacts flames, hazardous
gas can generate.)

When removing sound-
insulation material, do not
pull it with excessive force,
since it is inserted between
pipes.
1
Pull out sound
insulation material (side
insulation) from right
side.
2
Disconnect suction pipe
and discharge pipe of
compressor at brazed
sections.
