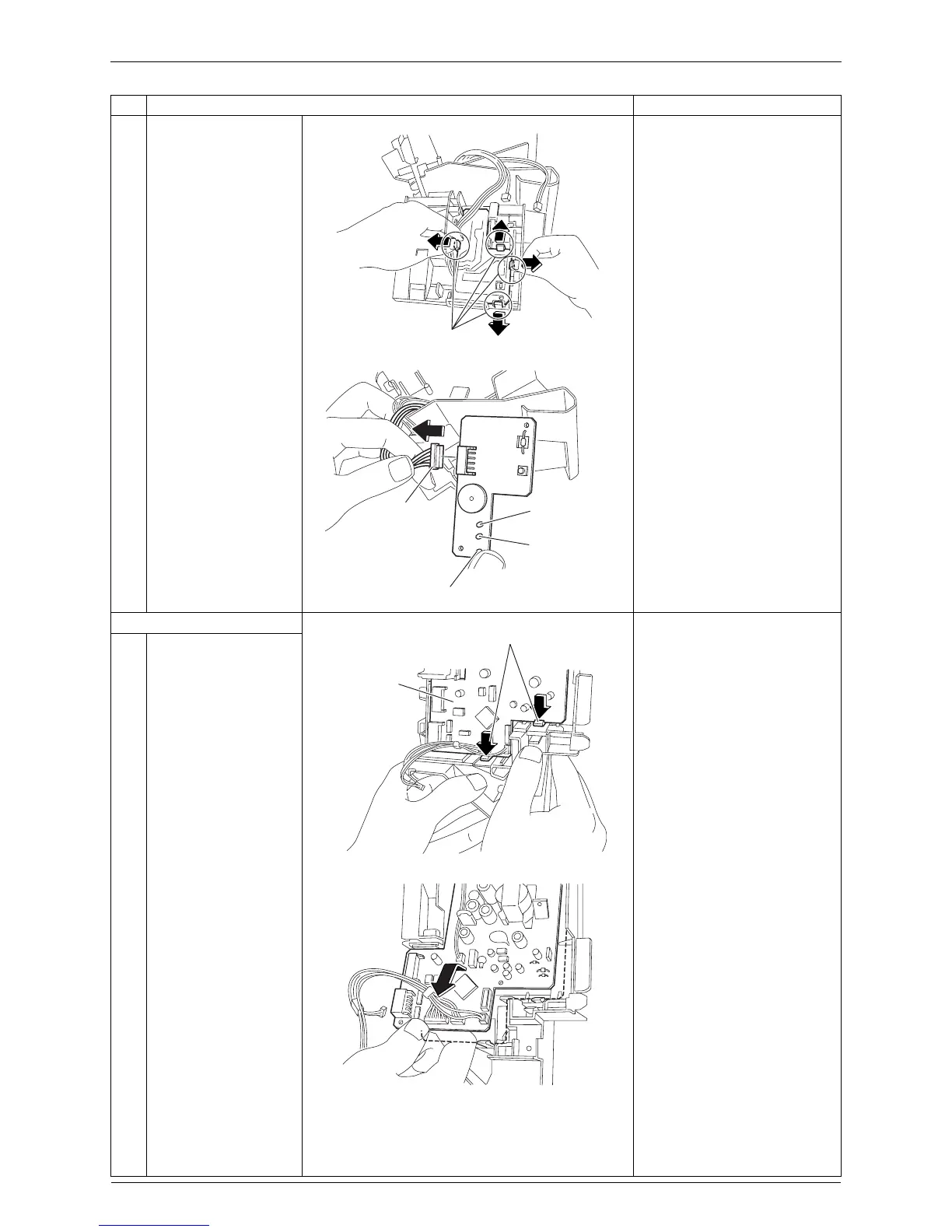

Removal of PCBs (Pattern 1) Si041137
18 Removal Procedure
2
Unfasten the 4 hooks
and remove the display
PCB.
3
Disconnect the
connector [S49] from
the display PCB.
7. Remove the control PCB.
1
Unfasten the lower 2
hooks of the control
PCB.
2
Lift up the bottom of the
control PCB and pull it
out.

The control PCB is also fixed
by 2 upper hooks. When
reassembling, be sure to fit
all the 4 hooks.
Step
Procedure Points
(R10318)
Hook
(R8096)
LED 3 (Green)
LED 1 (Green)
[S49]
LED 2 (Yellow)
(R8097)
Hook
Control PCB
(R8098)
