Si041137 Removal of PCBs (Pattern 1)
Removal Procedure 17

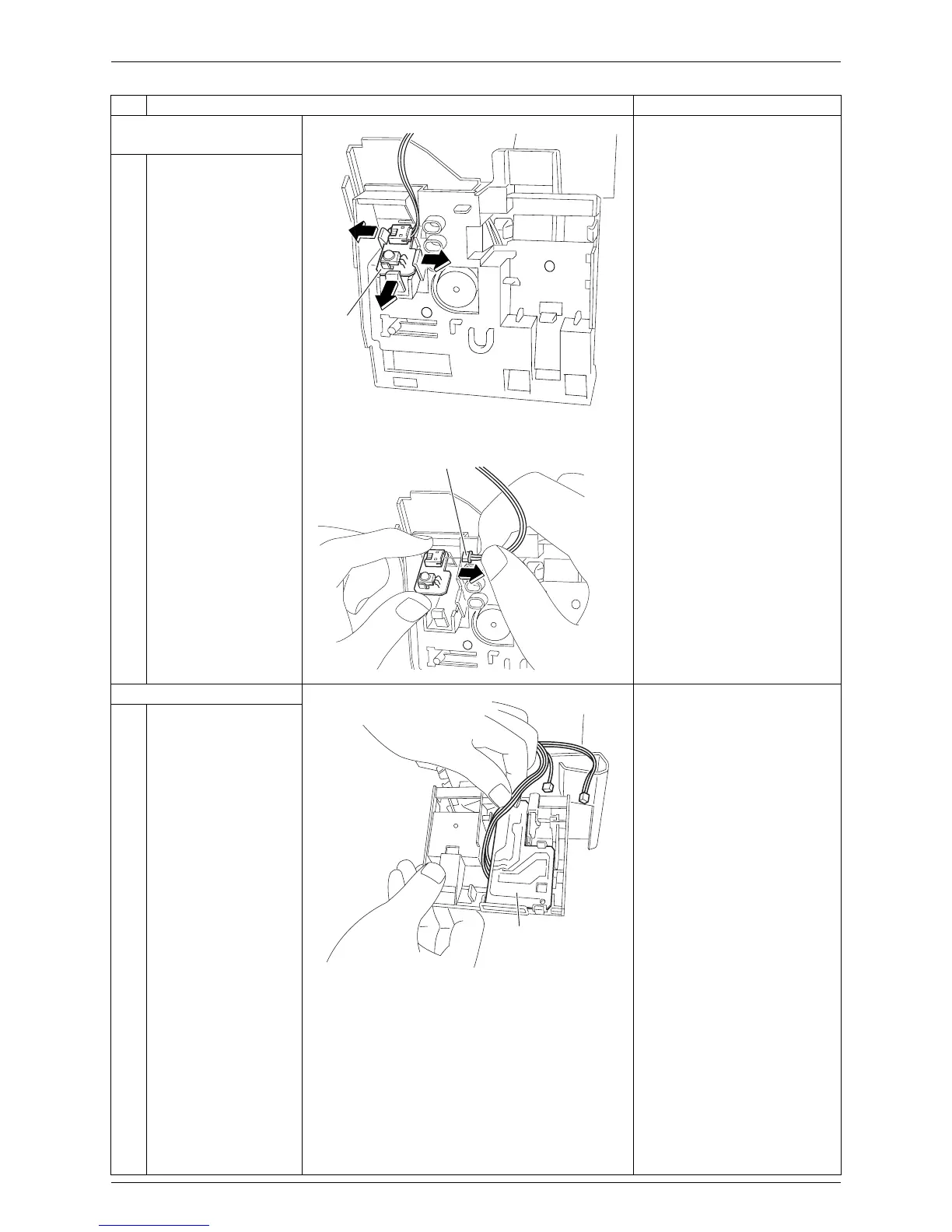

5. Remove the signal
receiver PCB.
1
Unfasten the 3 hooks
and remove the signal
receiver PCB.
2
Disconnect the
connector [S48] from
the signal receiver
PCB.
6. Remove the display PCB.

The display PCB is
positioned on the rear side of
the signal receiver unit.
1
The figure shows the
connection of the wire
harness for the display
PCB.
Step
Procedure Points
(R8090)
Signal
receiver
PCB
(R8091)
[S48]
(R8094)
Display PCB
