Daikin FTYN25KV1A - Detaching Vertical Swing Motor (Pattern 2)

Removal of Swing Motors (Pattern 2) Si041137
30 Removal Procedure
7

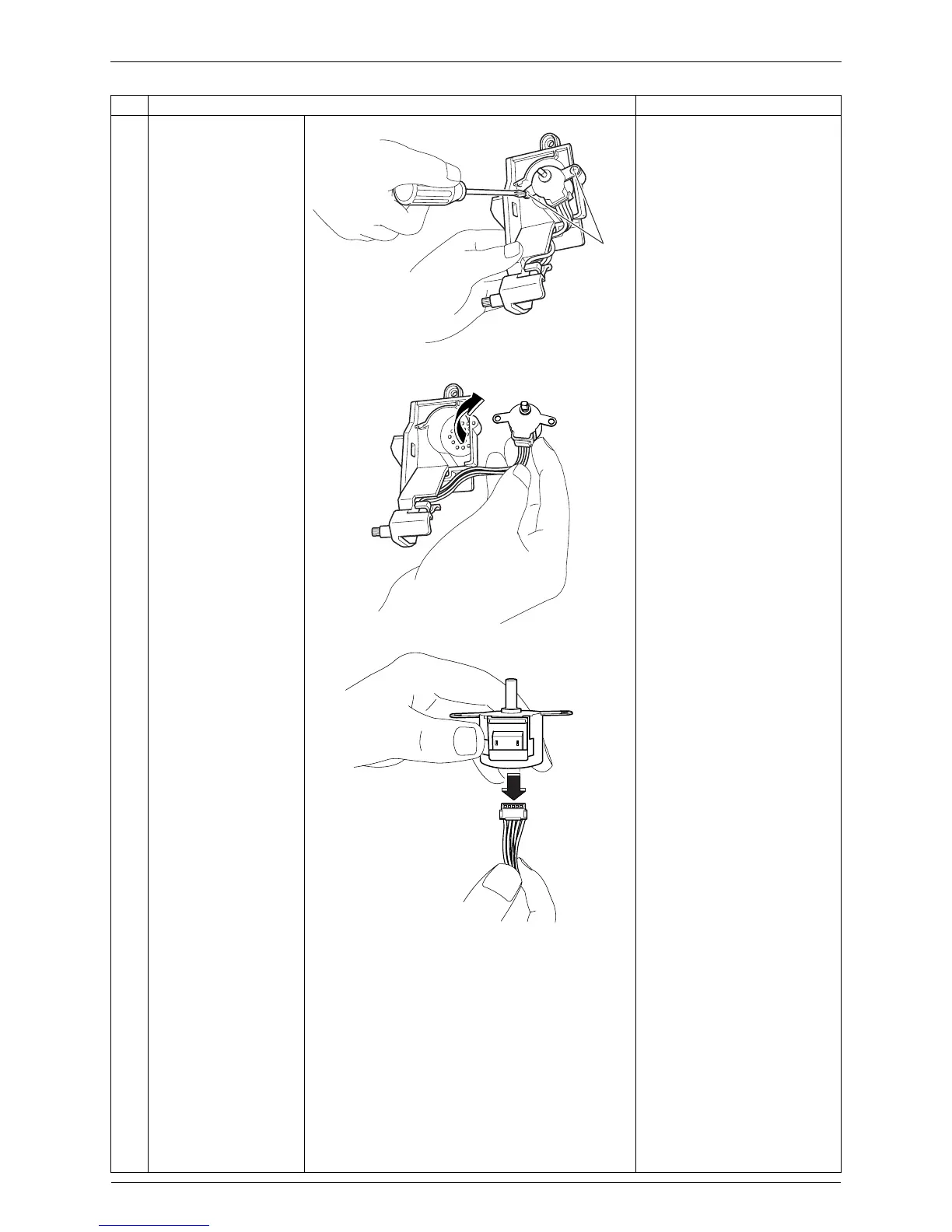

Remove the 2 screws.
8
Remove the swing
motor for vertical
blades.
9
Disconnect the
connector.

Connector : green
Step Procedure Points
(R13128)
Screw
(R13129)
(R10334)
