Daikin FTYN25KV1A - Lifting Heat Exchanger by Right Side; Final Heat Exchanger Removal

Si041137 Removal of Indoor Heat Exchanger
Removal Procedure 33
5

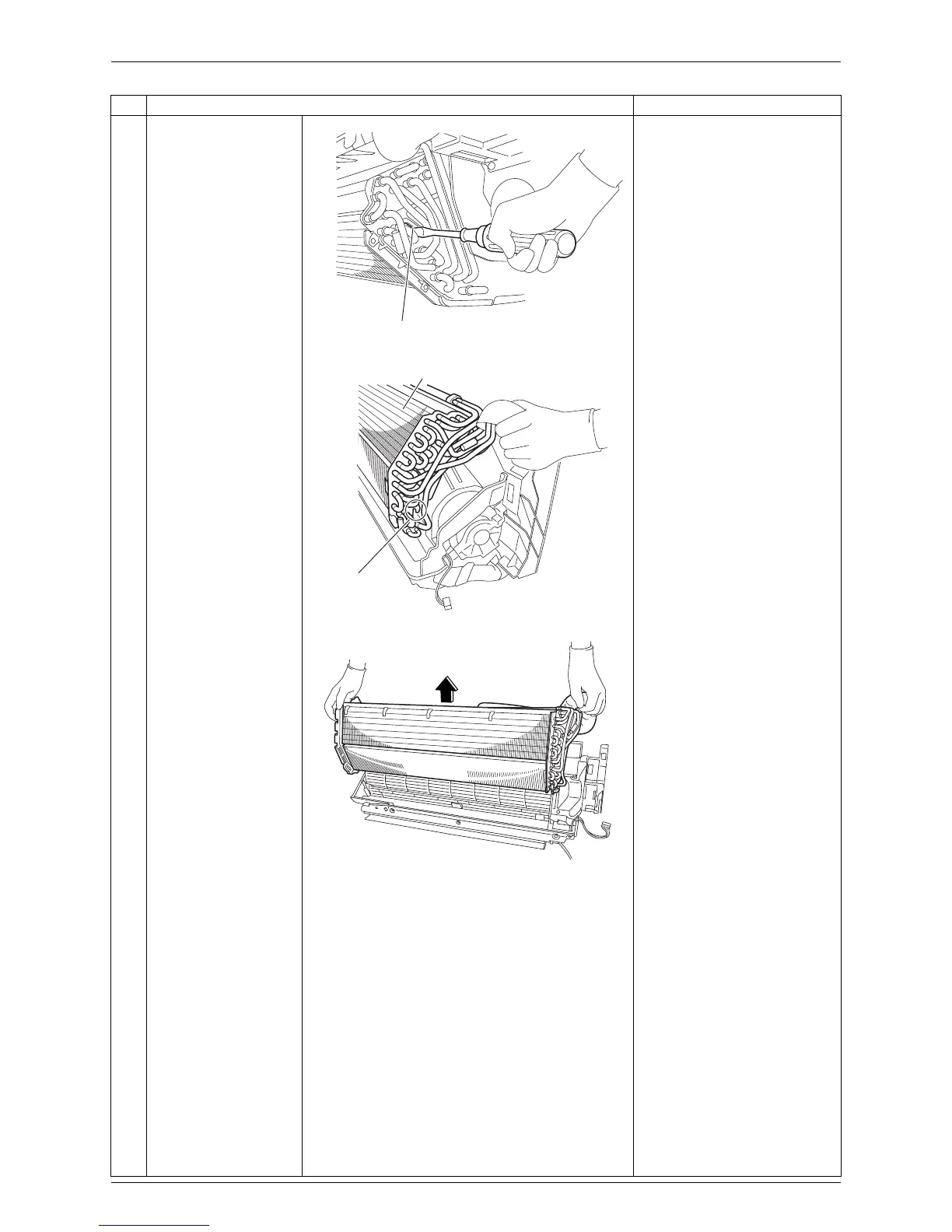

Unfasten the upper
hook on the right side
with a flat screwdriver.
6
After unfastening the
lower hooks, lift up the
indoor heat exchanger
by its right side.

When reassembling the
indoor heat exchanger,
make sure that the right
hooks (upper and lower) are
fastened.
7
Remove the indoor
heat exchanger.
Step
Procedure Points
(R13138)
Upper hook
(R13139)
Indoor heat exchanger
Lower hook
(R13140)
