Daikin FTYN71GV1A Service Manual

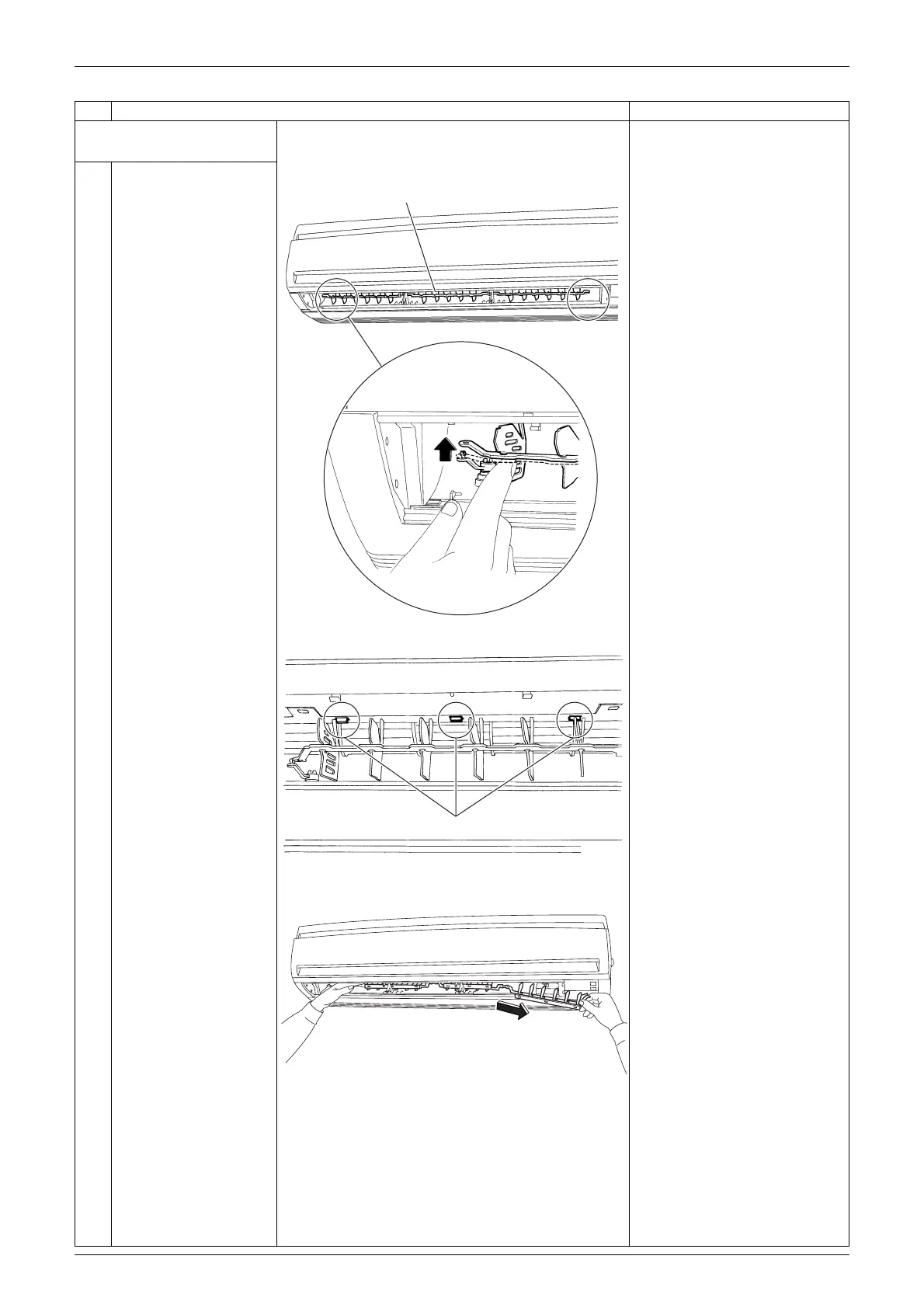

Removal of Horizontal Blades / Vertical Blades Si04-855
8 Removal Procedure
2. Remove the vertical
blades.

The unit has 3 sets of
vertical blades linked to one
another with interlock rods.
1
Release the right and
left shafts.
2
Unfasten the 3 hooks
for each set of vertical
blades.
3
Pull the vertical blades
rightward and remove
them.
Step Procedure Points
Vertical blade
(R6705)
Hook
(R2768)
(R6706)
