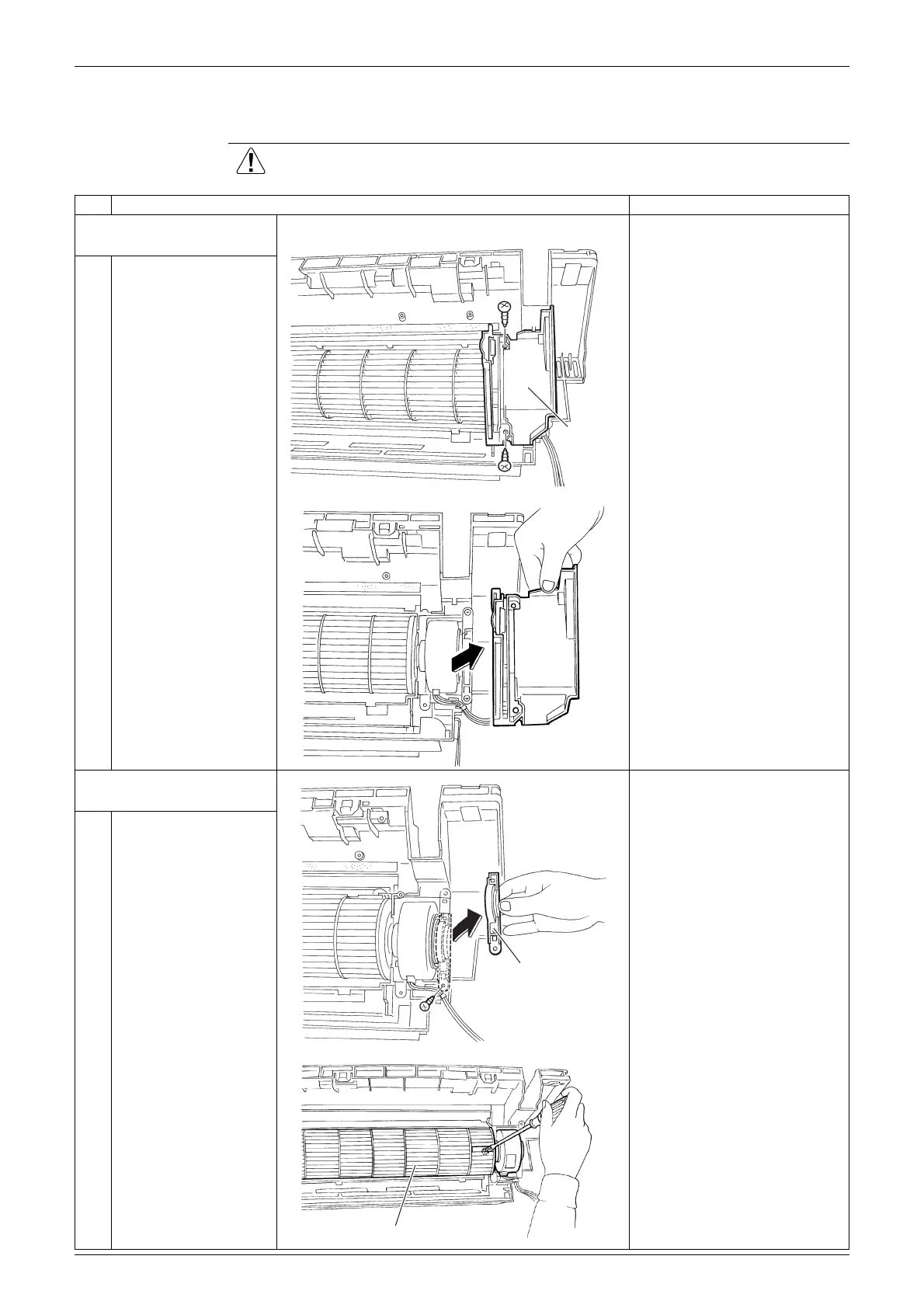

Removal of Fan Motor / Fan Rotor Si04-855
18 Removal Procedure
6. Removal of Fan Motor / Fan Rotor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
plate.
1
Remove the 2 screws.
You can remove the fan
rotor without detaching the
right side plate.
2
Lift the right side plate
and remove it.
2. Remove the fan motor
and rotor.
1
Remove the screw and
remove the fan motor
fixing plate.
2
Remove the screw of
the fan rotor.
(R2803)
Right
side plate
(R2804)
Fan motor fixing plate
(R2805)
Fan rotor
(R2806)
