Daikin FTYN71GV1A Service Manual

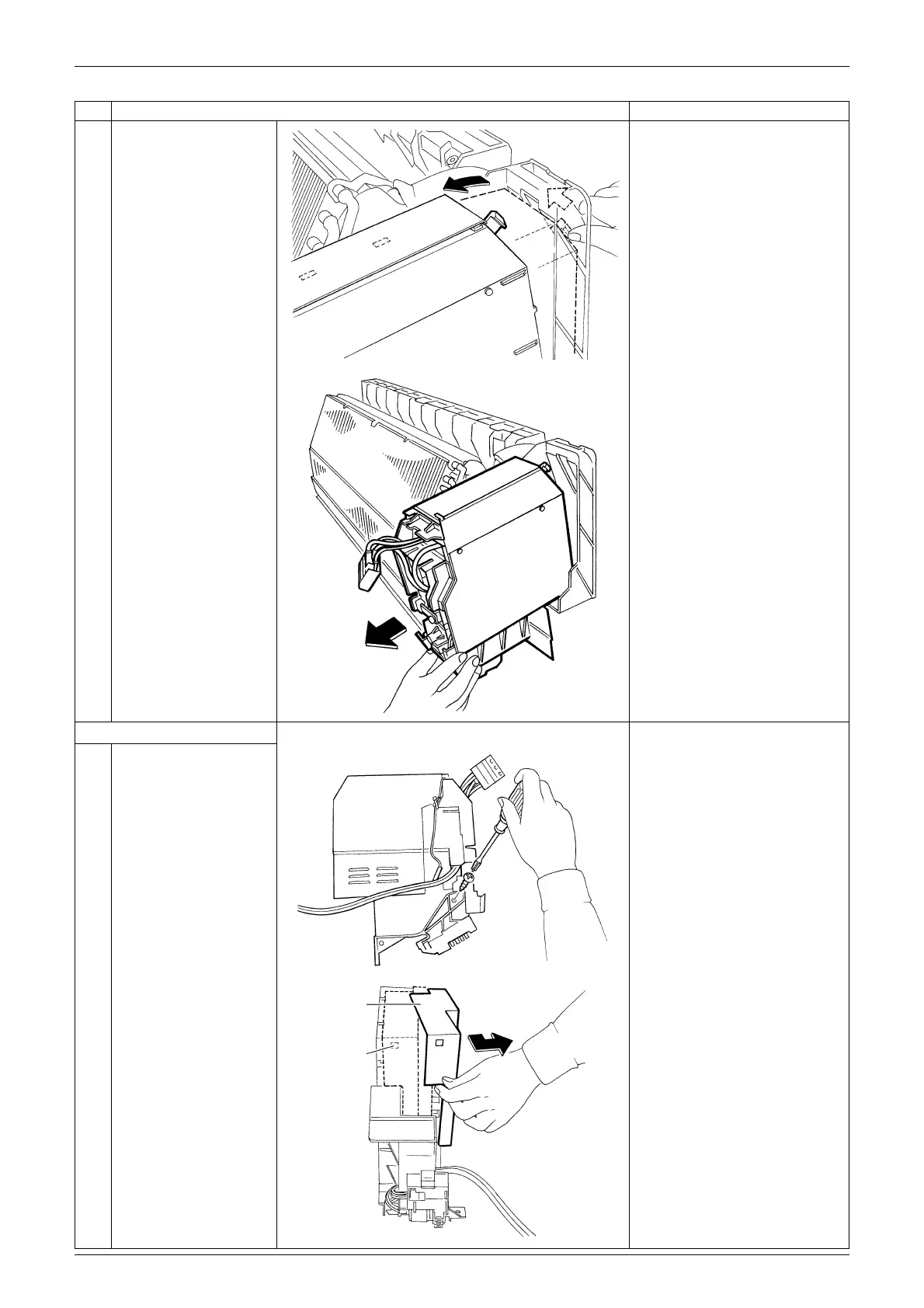

Si04-855 Removal of Electrical Box / PCBs / Swing Motors
Removal Procedure 11
10
Dislocate the electrical
box to the left and
unfasten the back hook.

The electrical box has a
hook on its back.
11
Pull the electrical box
out.

Catch the back hook of the
electrical box when
reassembling.
2. Remove the PCBs.
1
Remove the screw on
the electrical box.

Screw: M4 × 16
2
Push the shield plate
and unfasten the hook.

The shield plate also has 2
hooks on the upper side.
Step Procedure Points
(R2777)
(R2778)
(R2779)
Shield
plate
Hook
(R13224)
