Daikin FTYN71GV1A Service Manual

Removal of Electrical Box / PCBs / Swing Motors Si04-855

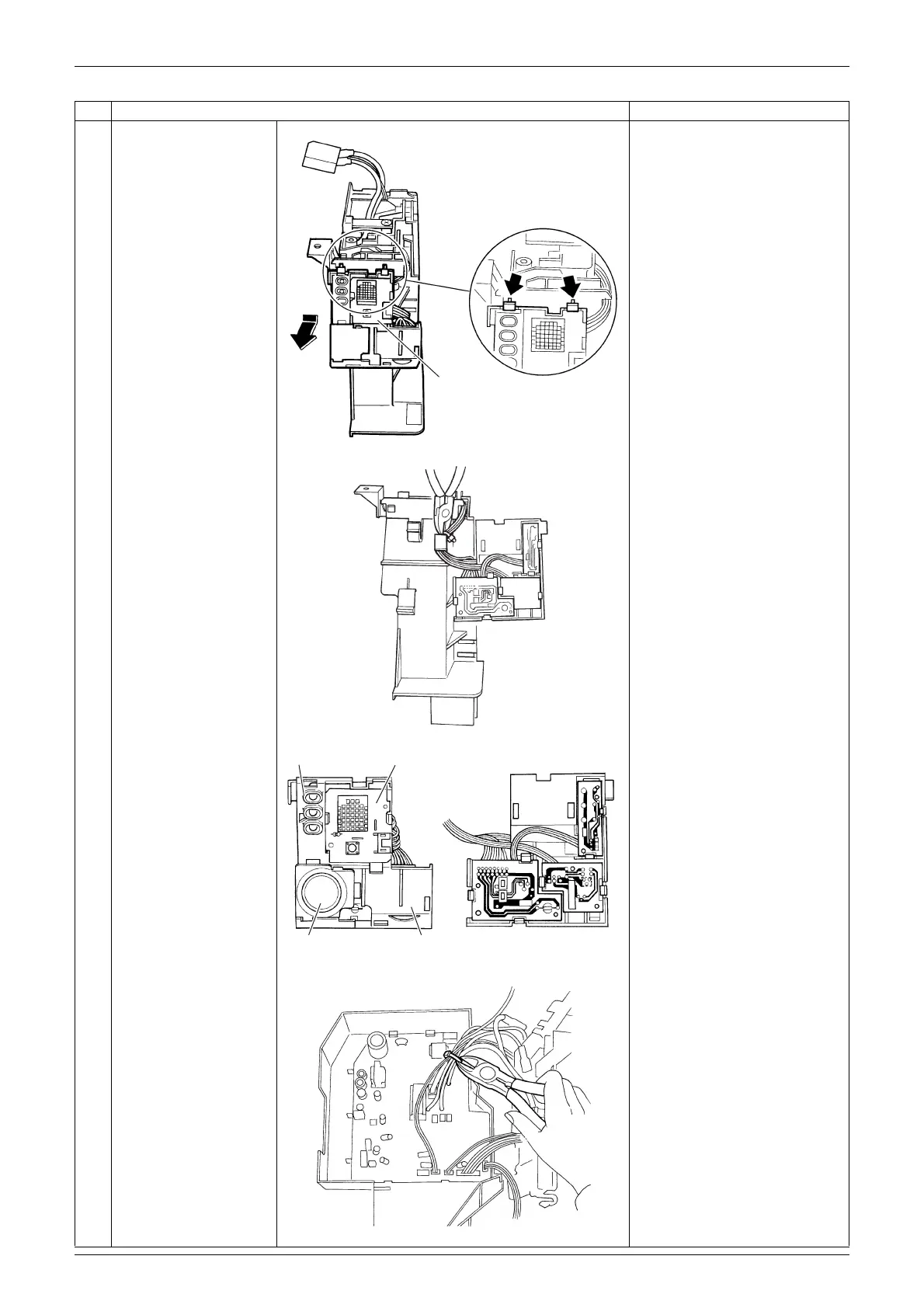

12 Removal Procedure
3
Press the signal
receiver unit down and
unfasten the hooks on
the upper side, and
then unfasten the hooks
on the lower side.
4
Cut the clamp.
5
The signal receiver unit
has 4 PCBs.
Unfasten the hooks and
remove each PCB.
Disconnect every
connector from each
PCB.

Remove the signal receiver
unit while pushing the hooks
of connectors.

Some models have no
INTELLIGENT EYE sensor
PCB.
6
Cut the clamp.
Step Procedure Points
Signal receiver unit
(R12895)
(R17177)
Display PCB
Signal receiver PCB
Buzzer PCB
INTELLIGENT EYE
sensor PCB
(R2783)
(R15508)
