Daikin FVXM35A3V1B9 Operation Manual

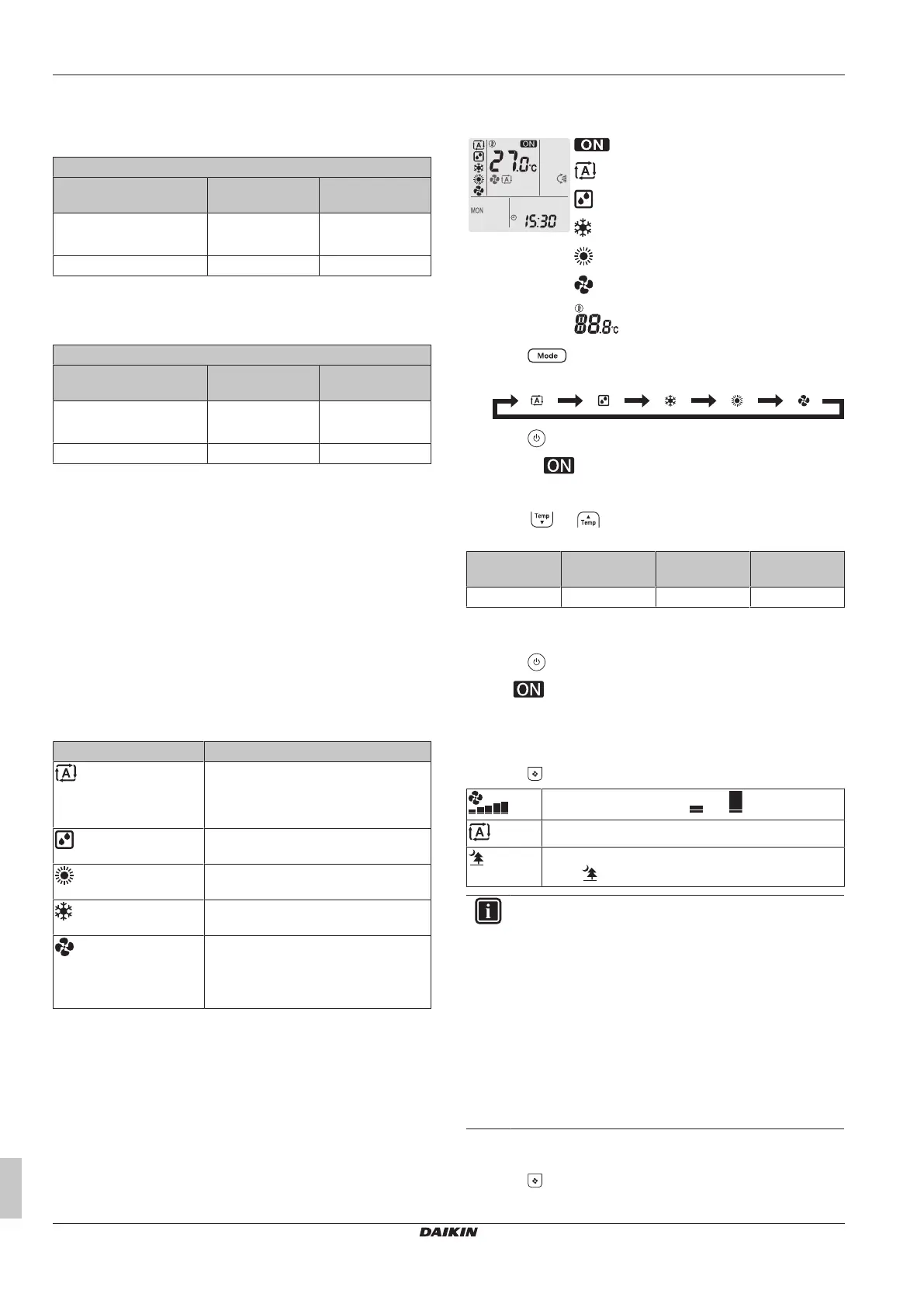

5 Operation
Operation manual
8
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
3P477071-2M – 2022.09
5.1 Operation range
Use the system in the following temperature and humidity ranges for
safe and effective operation.
CVXM, FVXM
Cooling and
drying
(a)(b)
Heating
(a)
Indoor temperature 18~32°C DB
14~23°CWB
10~30°CDB
Indoor humidity ≤80%
(b)
—
(a)
A safety device might stop the operation of the system if the unit
runs outside its operation range.
(b)
Condensation and water dripping might occur if the unit runs
outside its operation range.
FVXTM
Cooling and
drying
(a)(b)
Heating
(a)
Indoor temperature 18~32°C DB
14~23°CWB
10~30°CDB
Indoor humidity ≤80%
(b)
—
(a)
A safety device might stop the operation of the system if the unit
runs outside its operation range.
(b)
Condensation and water dripping might occur if the unit runs
outside its operation range.
5.2 Operation mode and temperature
setpoint
When. Adjust the system operation mode and set the temperature
when you want to:
▪ Heat up or cool down a room
▪ Blow air in a room without heating or cooling
▪ Decrease the humidity in a room
What. The system operates differently, depending on the user
selection.
Setting Description
Automatic
The system cools down or heats up a
room to the temperature setpoint. It
automatically switches between cooling
and heating if necessary.
Drying
The system decreases the humidity in a
room.
Heating
The system heats up a room to the
temperature setpoint.
Cooling
The system cools down a room to the
temperature setpoint.
Fan
The system only controls the airflow
(airflow rate and airflow direction).
The system does NOT control the
temperature.
Additional info:
▪ Outside temperature. The system's cooling or heating effect
decreases when the outside temperature is too high or too low.
▪ Defrost operation. During heating operation, frost might occur on
the outdoor unit and decrease the heating capacity. In that case,
the system automatically switches to defrosting operation to
remove the frost. During defrosting operation, hot air is NOT
blown from the indoor unit.
5.2.1 To start/stop operation mode and to set
the temperature
: Unit is operating
: Operation mode = Automatic
: Operation mode = Drying
: Operation mode = Cooling
: Operation mode = Heating
: Operation mode = Fan only
: Shows the set temperature.
1 Press one or more times to select the operation mode.
Result: The mode will be set as follows:
2 Press to start operation.
Result: is displayed on the LCD. The Daikin eye
indication lamp changes colour according to the operation. See
"3.1.1Daikin eye indication lamp"[46].
3 Press or one or more times to lower or raise the
temperature.
Cooling
operation
Heating
operation
Automatic
operation
Drying or Fan
only operation
18~32°C 10~30°C 18~30°C —
Note: When using drying or fan only mode, you cannot adjust the
temperature.
4 Press to stop operation.
Result: disappears from the LCD. The Daikin eye indication
lamp goes off.
5.3 Airflow rate
1 Press to choose:
5 airflow rate levels, from " " to " "
Automatic airflow rate operation
Indoor unit quiet operation. When the airflow rate is
set to " ", the noise from the unit will be reduced.
INFORMATION
▪ If the unit reaches the temperature setpoint in cooling
or automatic mode, the fan will stop operating
▪ If the unit reaches the temperature setpoint in heating
mode, the fan will operate cyclically at low fan speed.
▪ When using drying operation mode, you CANNOT
adjust the airflow rate setting.
▪ The airflow rate in the automatic airflow rate operation
is set according to the room temperature; in some
cases, it may be lower than in the indoor unit quiet
operation and if the airflow rate is changed to the
indoor unit quiet operation at this time, the operating
noise may become higher.
5.3.1 To adjust the airflow rate
1 Press to change the airflow setting as follows:
