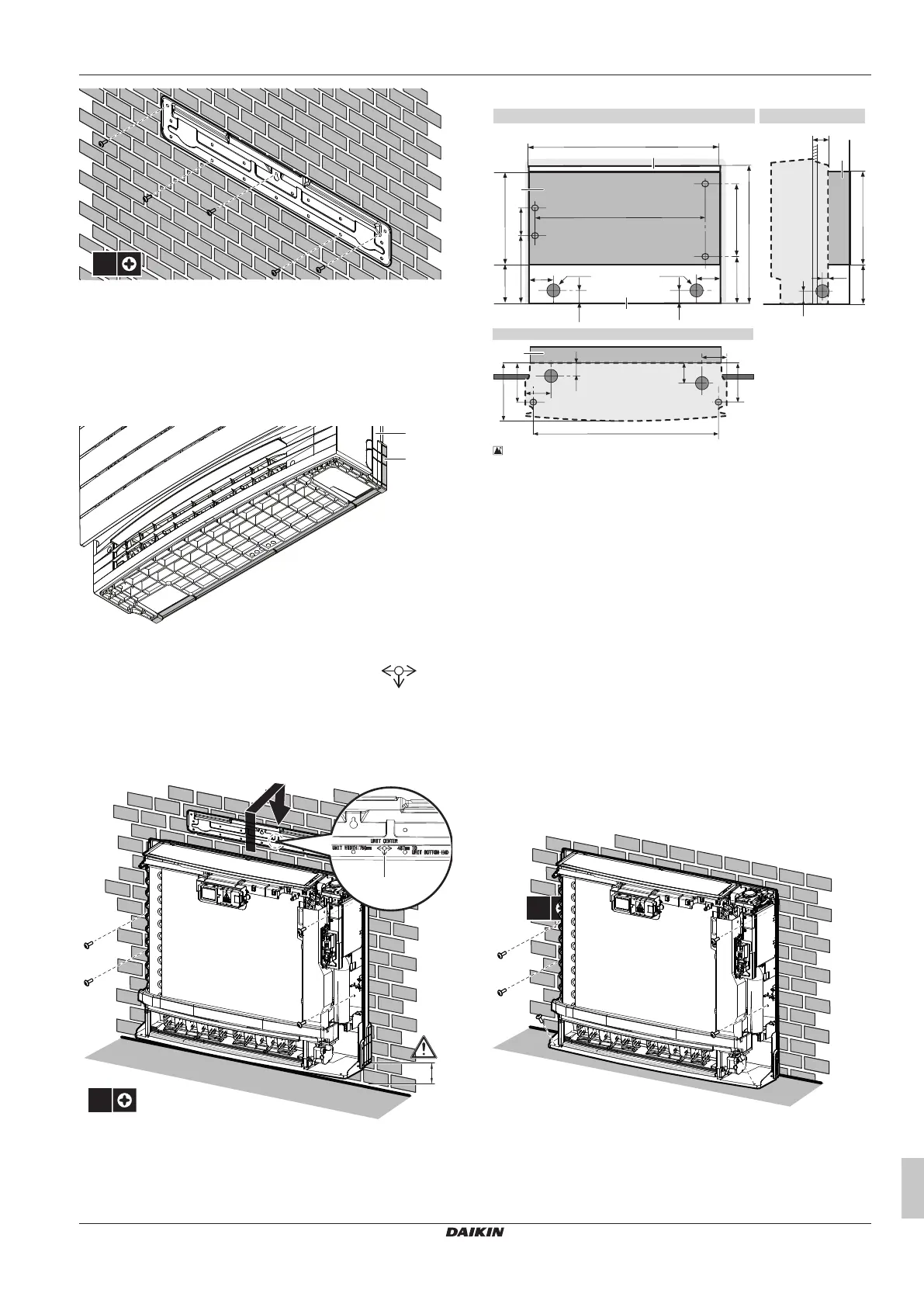

5 Unit installation
Installation manual
7
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
3P477070-2P – 2022.09
10 Drill a wall hole, depending on which side piping is taken out.
See "5.2.2To drill a wall hole"[48].
11 Open the front panel and remove the front grille.
12 Remove the slit portions using nippers. See "5.2.3 To remove
the slit portions"[48].
13 If necessary for the skirting board, remove the slit portion on the
bottom frame.
a
b
a Bottom frame
b Slit portion
14 Align the unit using the alignment symbol on the
mounting plate: 375mm from the alignment symbol to the each
side (unit width 750mm), 487mm from the alignment symbol to
the bottom of the unit.
15 Hook the unit on the mounting plate and secure the unit to the
wall using 4 screws M4×25L (field supply).
≤60
a
a Alignment symbol
16 When the complete installation is finished, attach the front panel
and the front grille in their original position.
Half-concealed installation
5
4
30
f
734~740
170
350
70
200
593~595
170 350
d e
c
c
a
A B
(mm)
a
a
75
54
Ø60
Ø60
54
75
C
159
238
689
159
b b
06
75
75
54
h
g
627.5
115
285
b
b
b
b
300
 5‒3 Indoor unit installation drawing: Half-concealed installation
A Front view
B Side view
C Top view
a Extra filler board
b Screw hole 6×
c Hole
d Left-back piping hole location
e Right-back piping hole location
f Right/left piping hole location
g Left-bottom piping hole location
h Right-bottom piping hole location
17 Make a hole in the wall as illustrated above.
18 Install the extra filler board (field supply) in accordance with the
space between the unit and the wall. Make sure there is no gap
between the unit and the wall.
19 Drill a wall hole, depending on which side piping is taken out.
See "5.2.2To drill a wall hole"[48].
20 Remove the slit portions using nippers. See "5.2.3 To remove
the slit portions"[48].
21 Open the front panel, remove the front grille, remove the top
and side casings.
22 Secure the unit to the extra filler board and to the floor using 6
screws M4×25L (field supply).
23 When the complete installation is finished, attach the front panel
and the front grille in their original position.
