System Overview
This intelligent Touch Controller is capable of controlling / monitoring up to 64 groups of indoor units henceforth
termed
group(s)
.
Main functions of the intelligent Touch Controller :
1. Collective starting / stopping of operation of the indoor units connected to the
intelligent
Touch Controller.
2. Starting / stopping of operation, temperature setting, switching between temperature control modes and
enabling / disabling of operation with the hand-held remote control by zone or group .
3. Scheduling by zone or group .
4. Monitoring of the operation status by zone or group .
5. Display of the air conditioner operation history.
6. Forced STOP contact input from a central monitoring panel (no voltage, normally open contact).
7. Power distribution of the air conditioners. (With the optional DCS002A51)
∗ A group of indoor units include :
∗ Zone control with the intelligent Touch Controller
∗ Zone control, which allows collective settings for more than one group, is available with the intelligent Touch
Controller, which facilitates the setting operations.
q One indoor unit without a remote control.
e Up to 16 indoor units controlled with one or two remote controls.
¡One setting commands all of the units in one zone.
¡Up to 128 zones can be set with one intelligent Touch Controller.
(The maximum number of groups in one zone is 64.)
¡Groups can be zoned at will with the intelligent Touch Controller.
¡Units in one group can be divided into more than one zone.
w One indoor unit controlled with one or two remote controls.

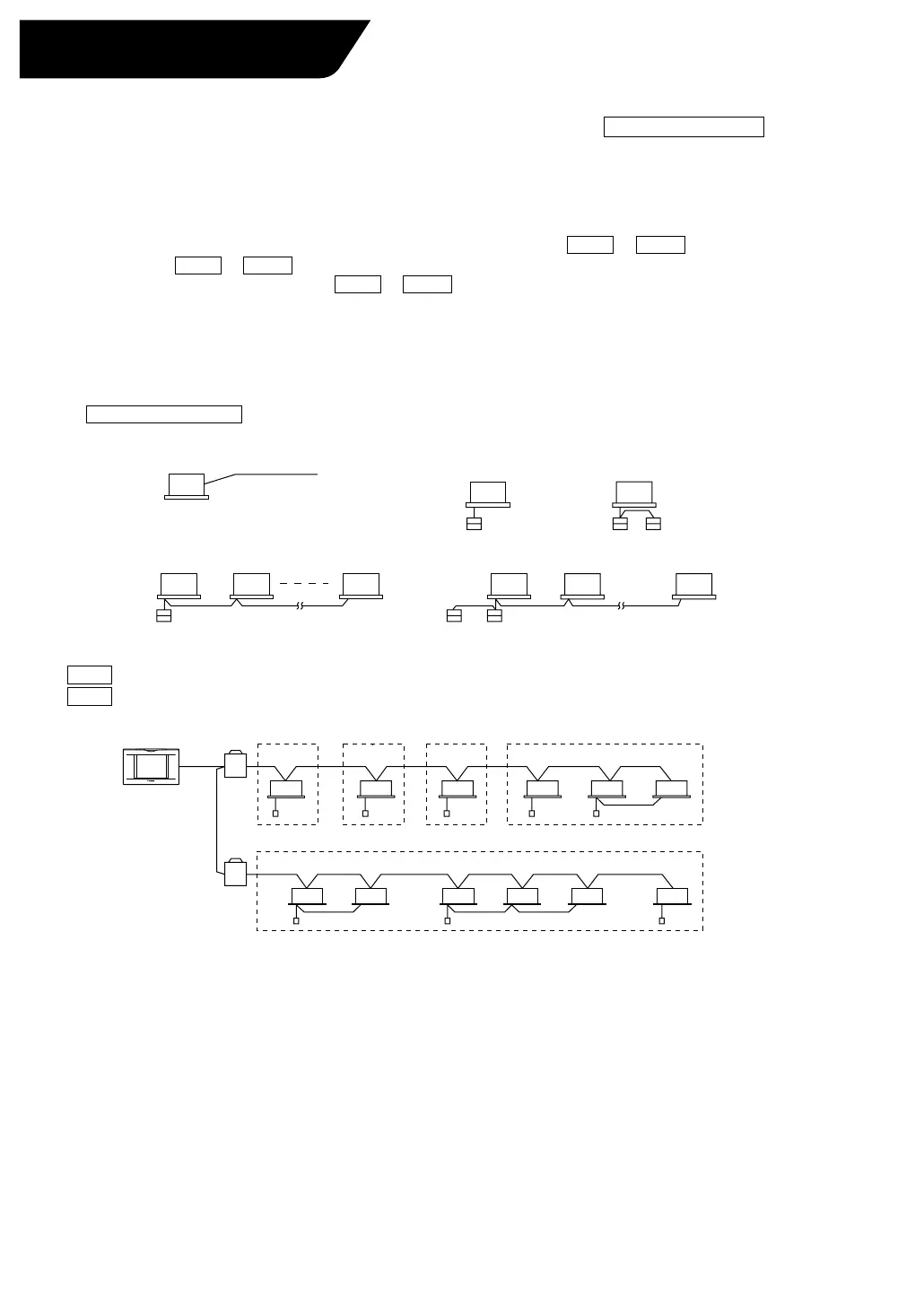

intelligent Touch Controller
Zone 1
Up to 16 units Up to 16 unitsTwo remote controlsRemote control
No remote control
Remote control Remote control
or
Indoor unit
Zone 5
Zone 2 Zone 3 Zone 4
