www.DaikinApplied.com 17 IM 972-2 • MAVERICK I ROOFTOP SYSTEMS
Wiring Diagrams

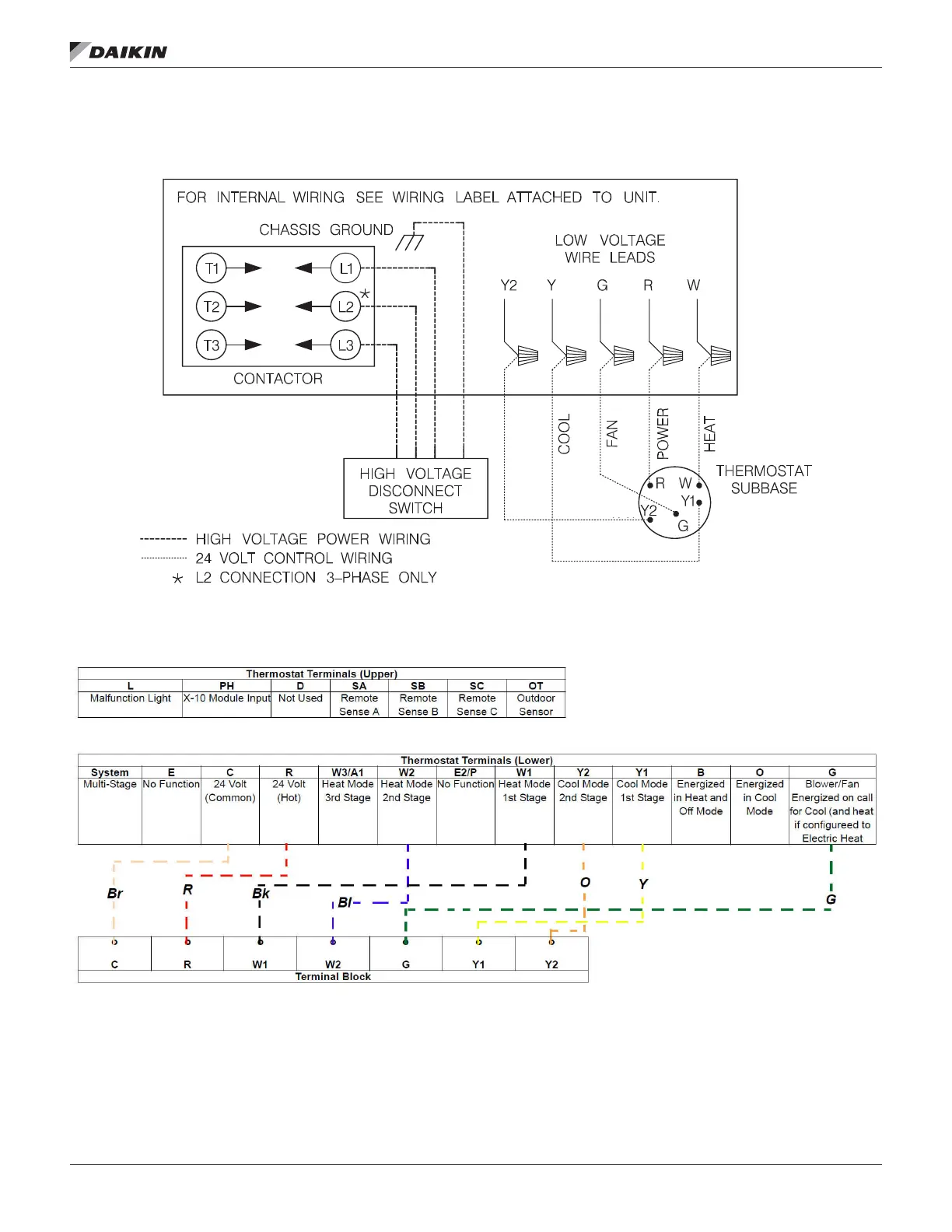

Figure 17: Typical Customer Supplied Thermostat Wiring Diagram
Figure 18: Optional Factory Supplied T-170 Thermostat Wiring Diagram
