www.DaikinApplied.com 19 IM 972-2 • MAVERICK I ROOFTOP SYSTEMS

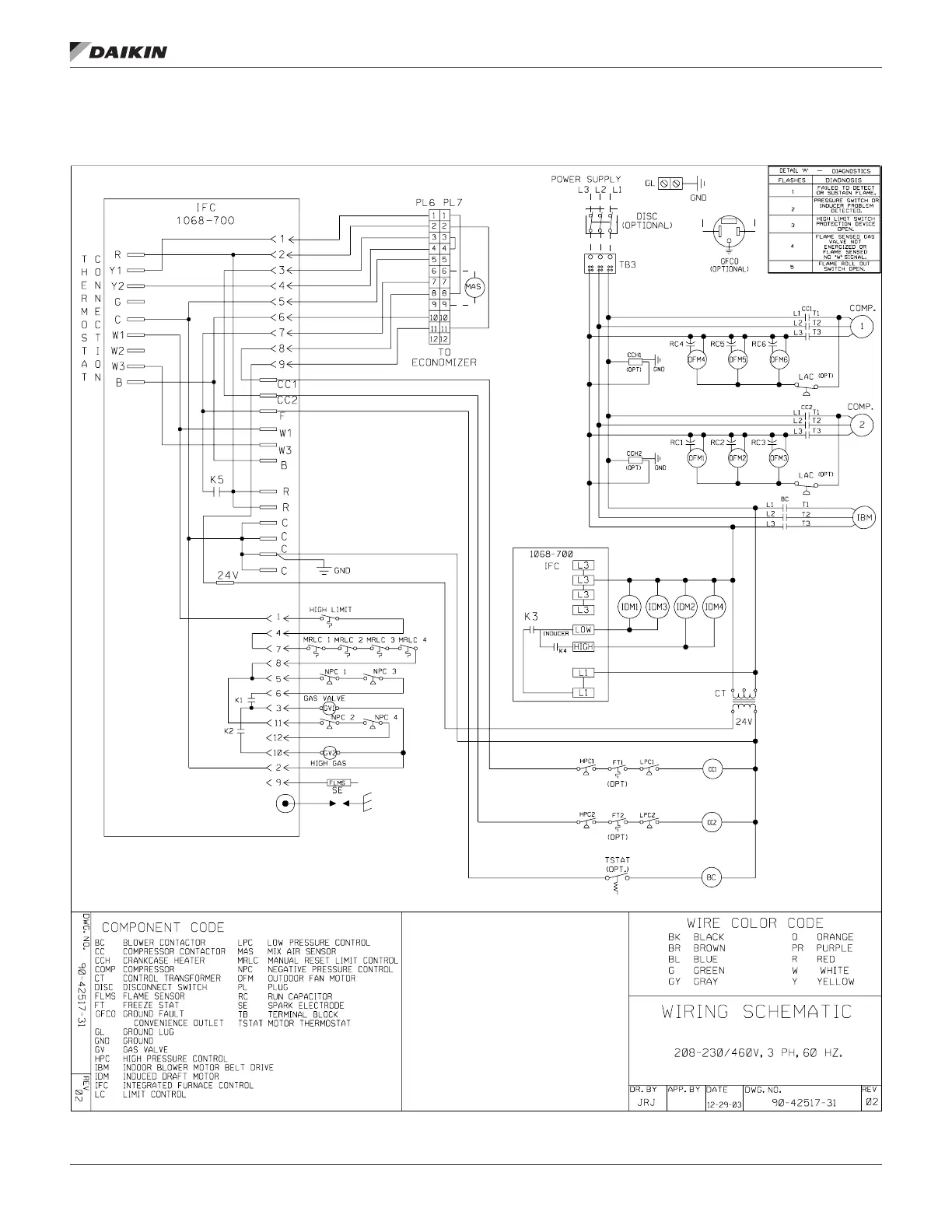

Figure 20: Wiring Diagram: MPS 015B – 025B, 208-230/460 V (Cooling Only)
