www.DaikinApplied.com 21 IM 972-2 • MAVERICK I ROOFTOP SYSTEMS

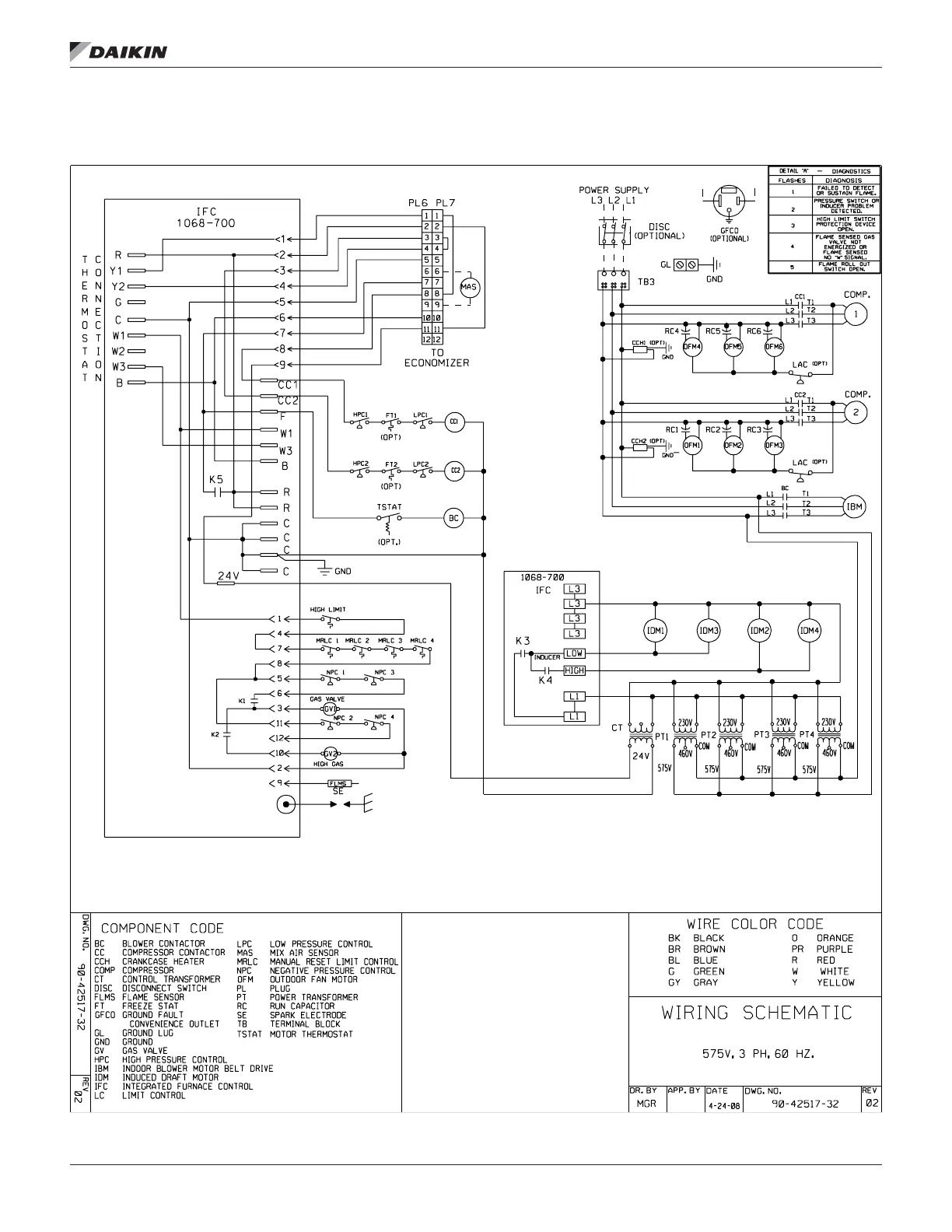

Figure 22: Wiring Diagram: MPS 015B – 025B, 575V (Cooling Only)
