English
UNIT CONFIGURATION

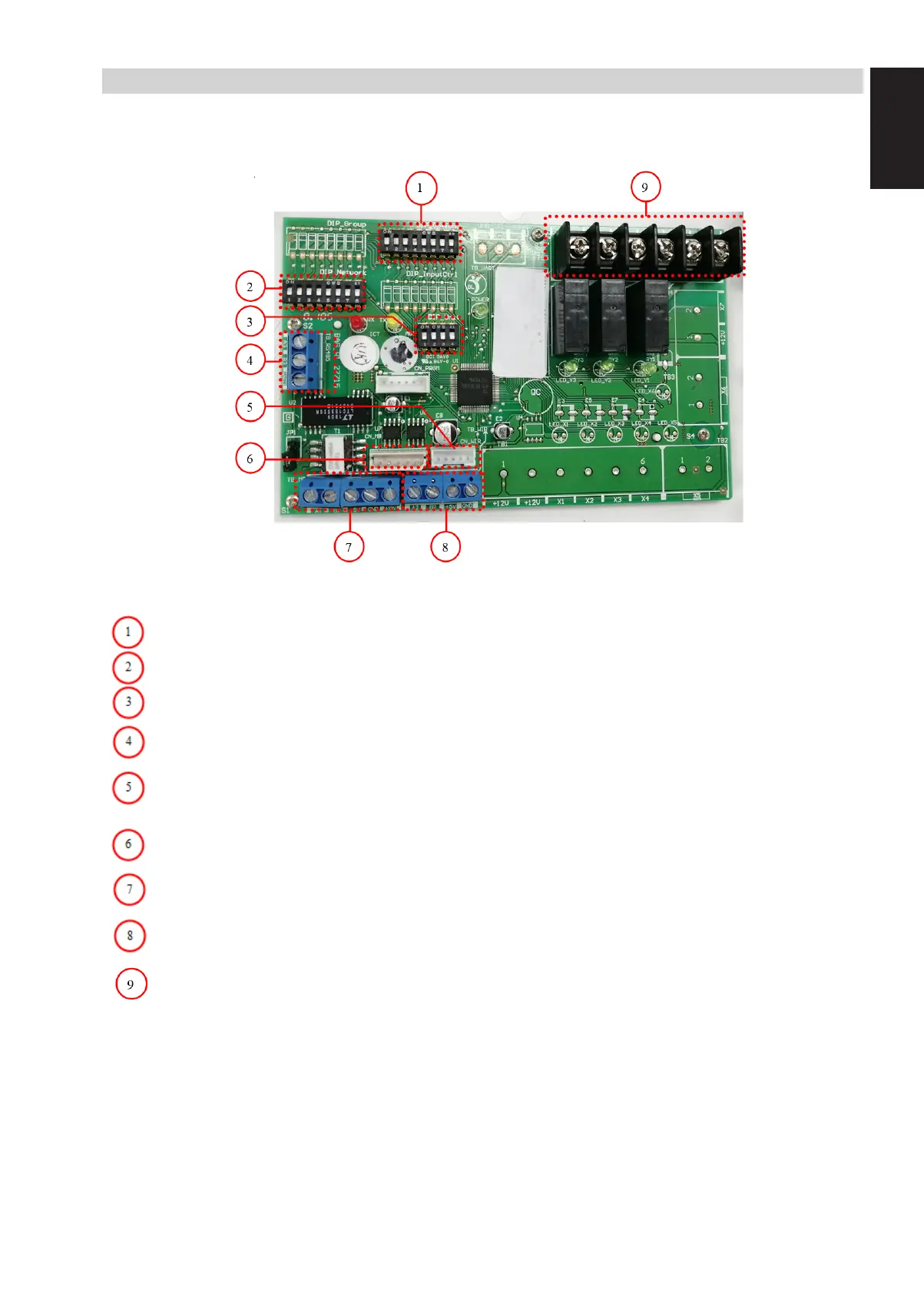

1 BOARD DESCRIPTIONS
Descriptions
Option setting dip switch, DIP_Option
Network ID dip switch, DIP_Network
Unit ID dip switch, DIP_Unit
Connector for connection to BNG and Modbus Master
Connector for connection to SLM8 (BRC51A)/ SQSLM8
(BRC51A64)/ SLM9/ SQSLM9/ SHIRO
Connector for connection to mainboard controller
Sequential type mainboard controller (with RS-485)
Sequential type wired panel (with RS-485)
Dry contact outputs
Y1: On/ Off status output
Y2: Heat/ Cool or Dry or Fan operating mode output
Y3: Unit faulty status output
4
Note:
Communication harness wire to/ from sequential type mainboard controller and sequential type wired
can be procured locally.
