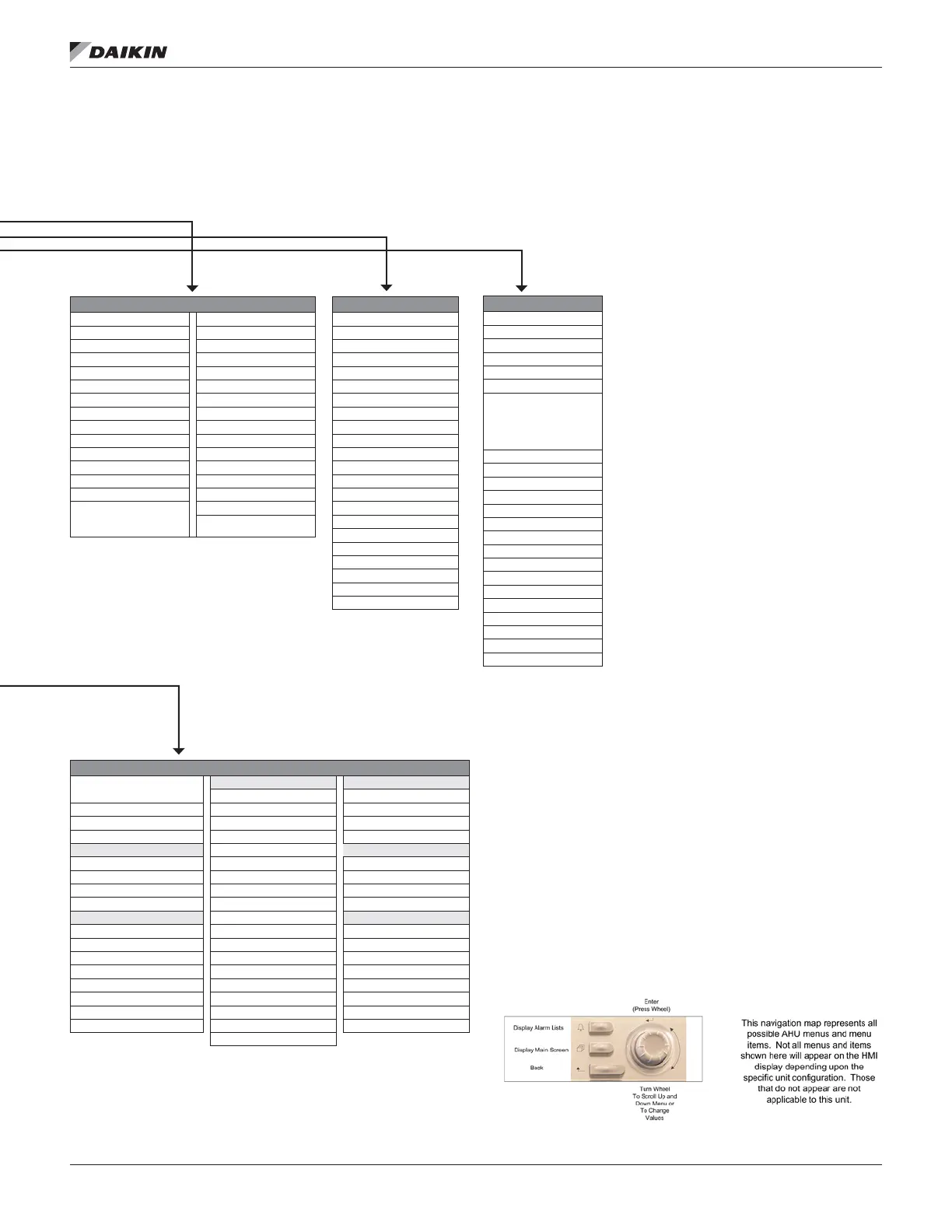

keyPad/dIsPlay Menu sTruCTure
www.DaikinApplied.com 119 IM 893-10 • ROOFPAK SINGLEZONE UNITS
Cooling Set-Up
Clg Stage Time= 5min
Clg DB= 2.0°F
Clg Period= 20s
Clg Gain= 1
Clg PAT= 40s
CW Max Chg= 15%
Clg Lo OAT Lk=
55ºF (RTU/SCU)
0°F (MPS)
25°F (DPS or RTU w/
VFD Cmps)
OAT Diff= 2.0°F
Min EWT= 55°F
Clg Reset= None
Min Clg Spt= 55.0°F
Min Clg Spt @= 0/NA
Max Clg Spt= 65.0°F
Max Clg Spt@= 100/NA
Lead Circuit= #1
Staging Type= Std
CFanOut1 Spt= 55°F
CFanOut2 Spt= 65°F
CFanOut3 Spt= 75°F
Cond Fan Diff= 5°F
Unocc Diff= 3°F
DT Above Spt= ________
DT Below Spt= ________
Htg/Clg ChgOvr Set-Up
Ctlr Temp Src= RAT
AplyTstatchg= No
Use Tstat Spt= No
Occ Clg DB= 2.0°F
Clg Period= 60s
Clg Gain= 0.1
Clg PAT= 600s
Max Clg Chg= 5.0°F
Occ Htg DB= 2.0°F
Htg Period= 60s
Htg Gain= 0.1
Htg PAT= 600s
Max Htg Chg= 5.0°F
CalDRemSpt@10°C= No
CalDRemSpt@50°F= No
CalDRemSpt@30°C= No
CalDRemSpt@86°F= No
DemandShed= Ena
ClgDmdShdInc= 4°F
HtgDmdShdInc= 4°F
ClgShedRate= 2.0°F/hr
HtgShedRate= 2.0°F/hr
RF/EF Set-Up
RF/EF Ctrl= Tracking MinExStrtTm= 120s
Rem RAF Cap= 5% MinExStopTm= 120s
Rem ExhF Cap= 5% MinExOAPos= 5%
BSP DB= 0.01in MinExSAFCap= 10%
BSP Period= 5s ExhOnOAPos= 40%
BSP Gain= 0.2s ExhMxOAPos= 100%
Max Spd Chg= 4% Exh Stg 1 On= 40%
Sup Fan Max= 100% Exh Stg 1 Off= 30%
RF @ SF Max= 95% Exh Stg 2 On= 55%
Sup Fan Min= 30% Exh Stg 2 Off= 40%
RF @ SF Min= 25% Exh Stg 3 On= 70%
Lo Fan Diff= 75% Exh Stg 3 Off= 50%
Hi Fan Diff- 75% Max RF/EF Hz= 60Hz
RFEF Ctrl Dly= 30s Max Vent Spd= 100%
Min Speed=
5% (with Exhaust Fan)
33% (with Return Fan)
Max RFEF RPM= 2600
ECM Status= _________
Min OA Set-Up
AplyMinOAChg= No (Uses
MinOAT Type Instance Name)
CFM RESET FAN SPEED RESET
OA Flow= XXXXXCFM Min Fan Diff= 20%
Min OA Reset= None MinOAFlwSpt= 2000CFM Max Fan Diff= 50%
BSPOAOvrd= No Field Stn Rst= No Min Clg Spd= 40%
RstLmtSnsr= None Field Stn Cfg= VDC Des Clg Spd= 100%
EXTERNAL RESET Min CFM= 0 CFM BSP RESET
OA @ MinV/mA= 0% Max CFM= 10000 CFM MinRFEFTm= 120s
OA @ MaxV/mA= 100% V/A @Min CFM= 0.0/V BSP OvdST= 5s
Min V/mA= 0.0/V V/A @Max CFM= 10.0/V BSP OvdGain= 0.2
Max V/mA= 10.0/V OA CFM DB= 3% BSP OvdMaxChg= 4%
CO
2
RESET OA CFM Period= 30s DAMPER LIMITING
IAQ Reset= Yes OA CFM Gain= 0.1 RstTLmt= 32.0ºF
PPM@DCVLmt= 800PPM OA CFM Max Chg= 5% RstTSmplTm= 5s
PPM@VntLmt= 1000PPM Design Flow= Yes RstTGain= 0.2
IAQ PPM= XXXXPPM Des Flo DB= 3% RstPAT= 60s
Min PPM= 0 PPM DF Period= 30s RstTMaxChg= 4%
Max PPM= 2000 PPM Des Flo Gain= 0.1 0–30% OA Max= 30%
V/A @Min PPM= 0.0/V DF Max Chg= 5% Min Inc Rate= 0.03
V/A @Max PPM= 10.0/V RH Lvl Pos= ____________ Max Inc Rate= 1.0
LH Lvl Pos= ____________
To Next Page
