IM 893-10 • ROOFPAK SINGLEZONE UNITS 18 www.DaikinApplied.com
InTroduCTIon
Condenser Fan Arrangement
Table 5 shows the condenser fan numbering conventions and
locations for each unit size.

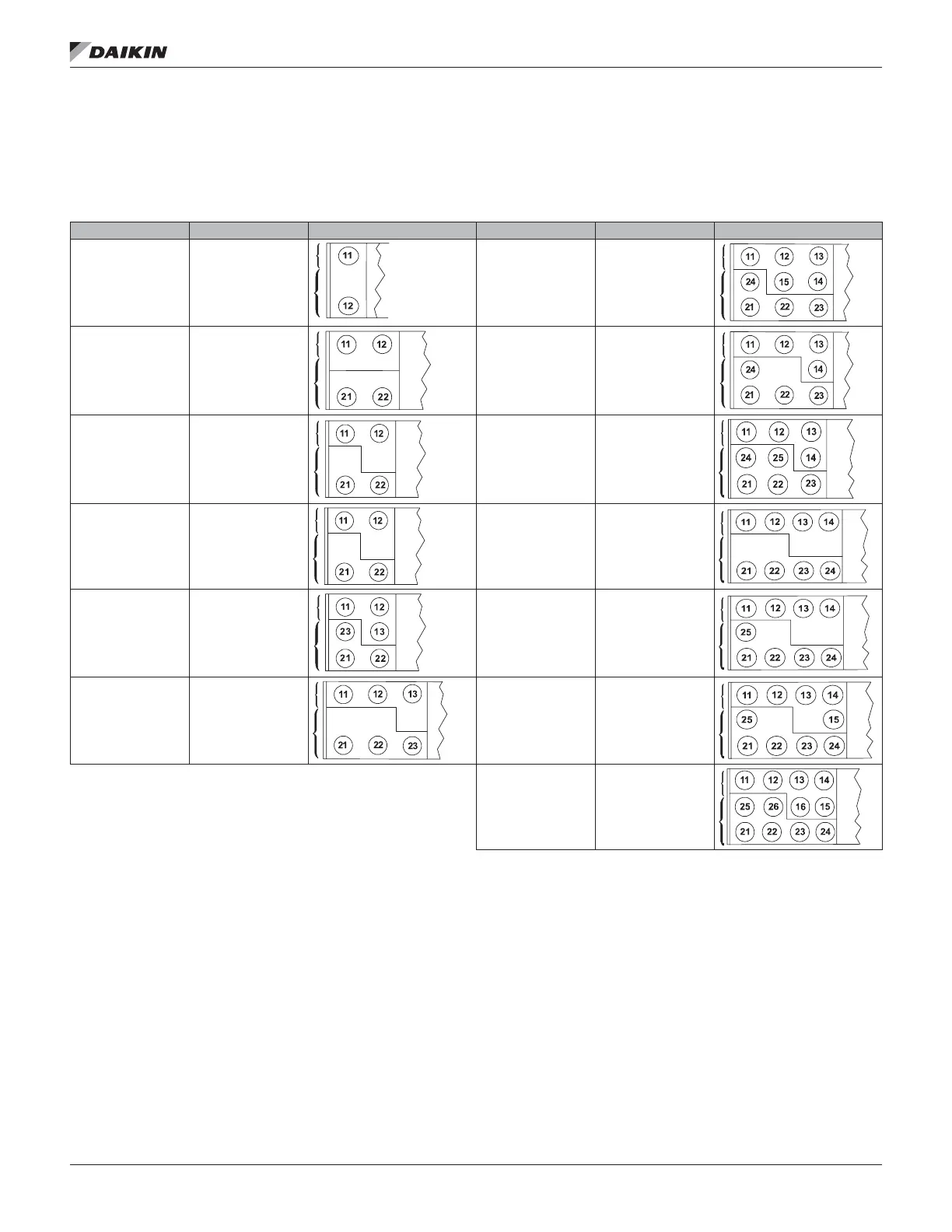

Table 5: Condenser Fan Arrangement
Unit size Refrigerant circuit Arrangement Unit size Refrigerant circuit Arrangement
015, 016, 025, 026,
020, 021
1
2
074
1
2
030, 031, 035, 042
1
2
075, 079, 090, 091
1
2
045
1
2
100, 101
1
2
050, 051
1
2
110
1
2
061, 063, 068
1
2
120
1
2
070, 071, 080, 081
1
2
125
1
2
130, 140
1
2
