Daikin RMKD112DVM Service Manual

Si181180 Outdoor Unit
Removal Procedure 3
6 The outdoor unit has 2
discharge grilles.

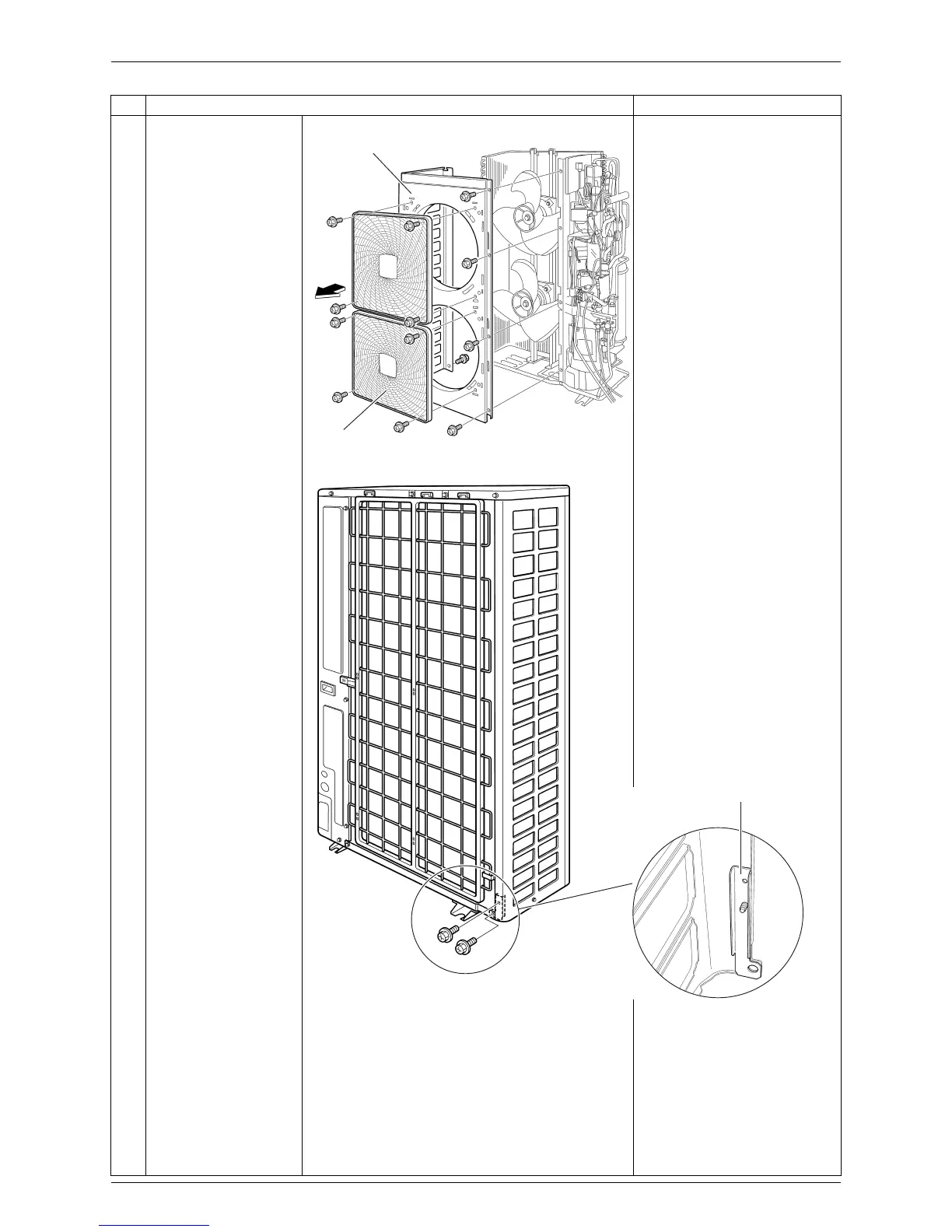

Remove the 4 screws
and unfasten the 4
hooks to remove a
discharge grille.
7 Remove the 7 screws
of the front panel (1).
Push the front panel (1)
upward and remove it.

On the rear side of the front
panel (1), a reinforce plate is
attached. Be careful not to
lose it while removing the
front panel (1).
Step
Procedure Points
Front panel (1)
Discharge grille
(R9213)
(R9215)
Reinforce plate
