Daikin RMKD112DVM Service Manual

Outdoor Unit Si181180
2 Removal Procedure
1. Outdoor Unit
1.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
2
3
4
5
Remove the 8 screws
and remove the top
panel.
Remove the screw of
the front panel (2).
Push the front panel (2)
downward to release
the hook and remove it.
Remove the screw and
remove the piping cover
(front).
Remove the 4 screws
and remove the piping
cover (rear).
Detach the outdoor
temperature thermistor.
Remove the 6 screws
and remove the right
side panel.

It is possible to remove only
the front panel (2) without
removing the top panel.

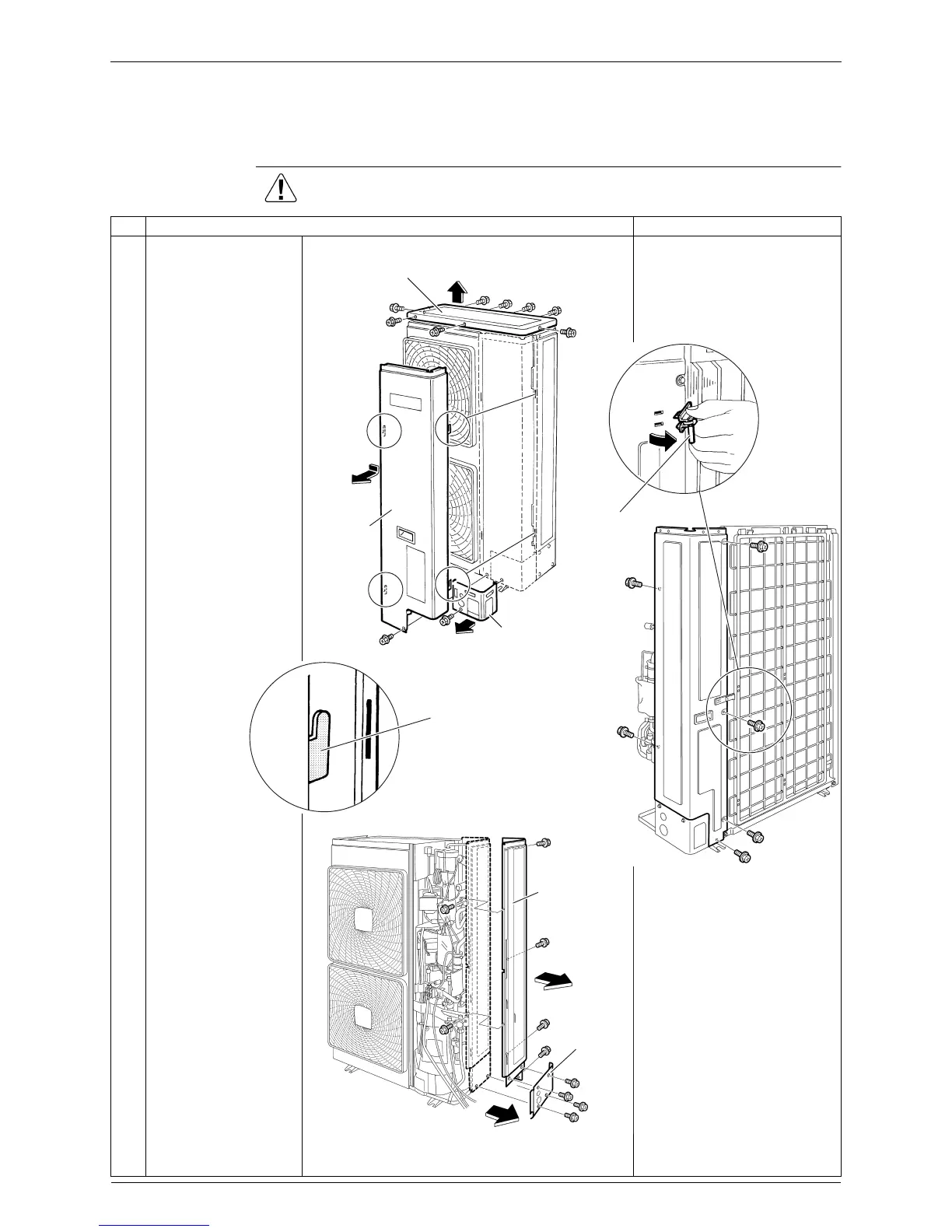

Top panel
(R12962)
Front panel
(2)
Piping cover
(front)
Hook
(R12963)
Right side
panel
Piping cover
(rear)
(R9211)
Outdoor temperature
thermistor
