Outdoor Unit Si18-797

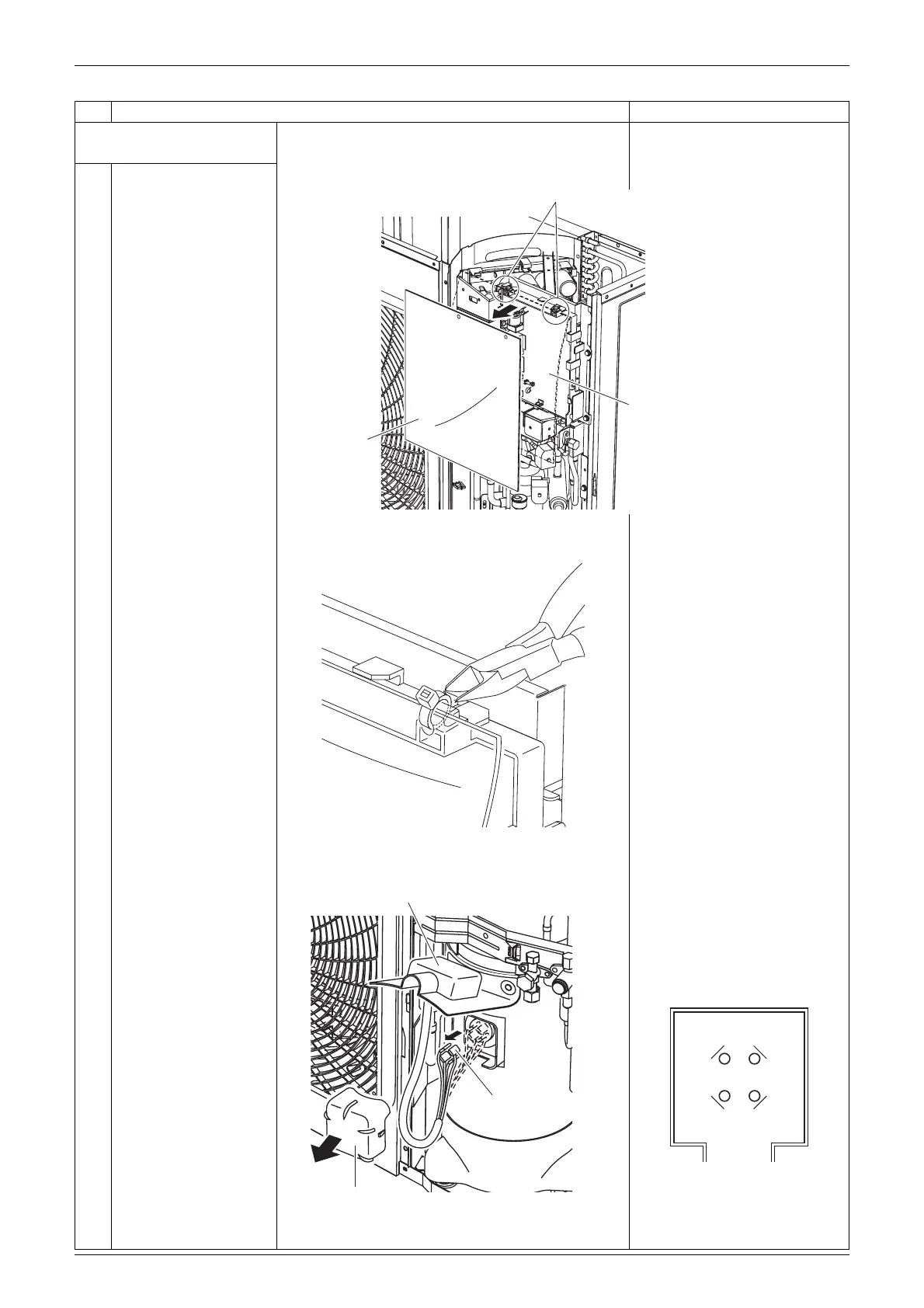

12 Removal Procedure
3. Remove the power filter
PCB.
1
Cut off the 2 top clamps
and remove the drip
proof cover.
Cut off with nippers.
The clamp is to be kept in stock.
2
Tilt up the compressor's
sound proof cover.
Using long nose pliers, pull out
the following.
U: Red
V: White
W: Blue
N: Brown
3
Remove the terminal
cover.
4
Disconnect the
compressor lead
connector (terminal).
Step
Procedure Points
Clamps
Power filter PCB
Drip proof cover
(Q0527)
(Q0471)
Sound proof cover
Terminal
Terminal cover
(Q0473)
NW
UV
