44
TM-FT-0415-B
All dimensions are in mm

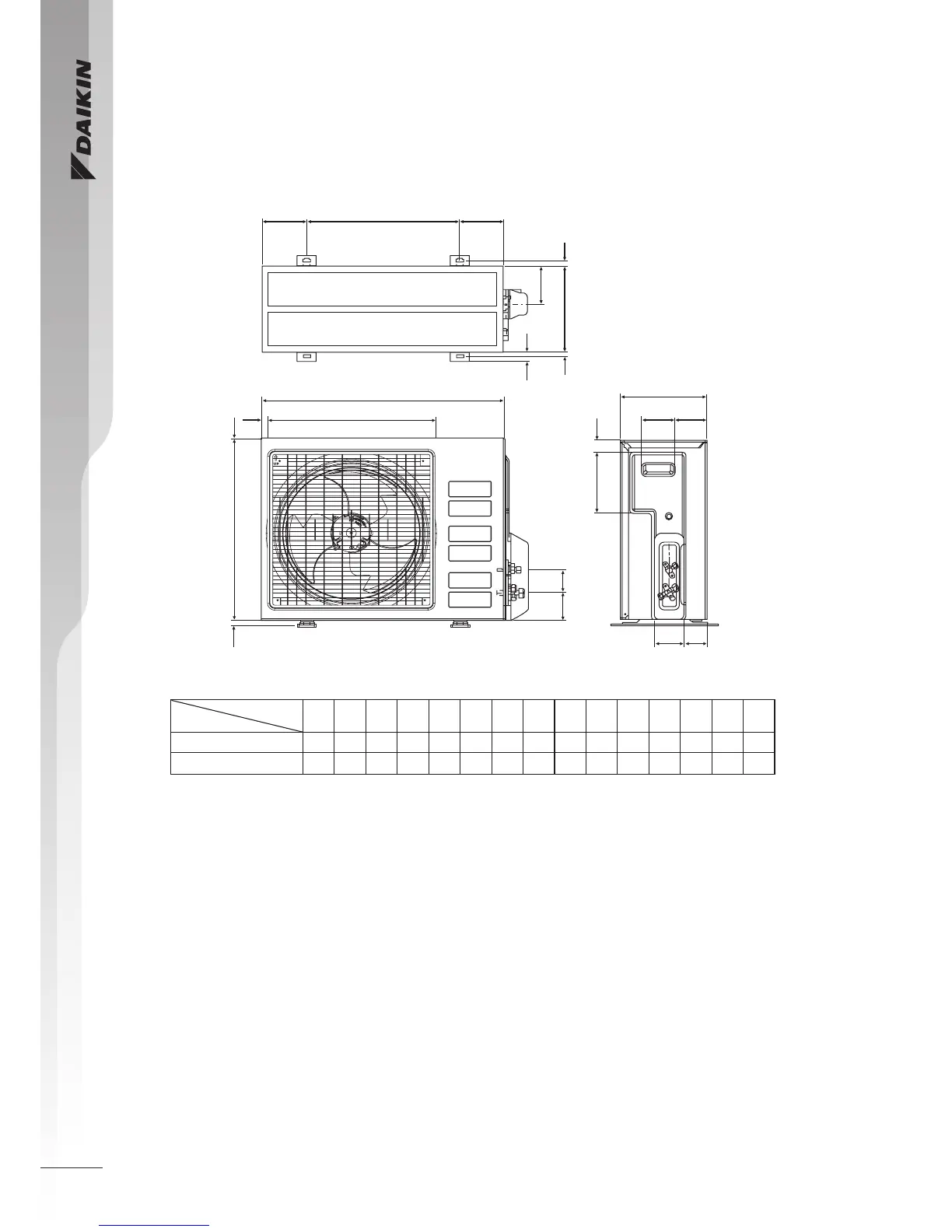

Outdoor Unit
Model: R09/15CV1
Dimension
Model
A B C D E F G H I J K L M N O
R09CV1 600 475 245 418 177 35 93 81 83 55 398 101 97 17 22
700 521 250 485 175 36 95 93 86 68 441 130 111 15 18
R15CV1
K
B
LL
C NN
M
30
A
DO
319
65
80
C
G H
I
J
E
F
