Daikin RN10FV1 - Page 46

45
TM-FT-0415-B
All dimensions are in mm

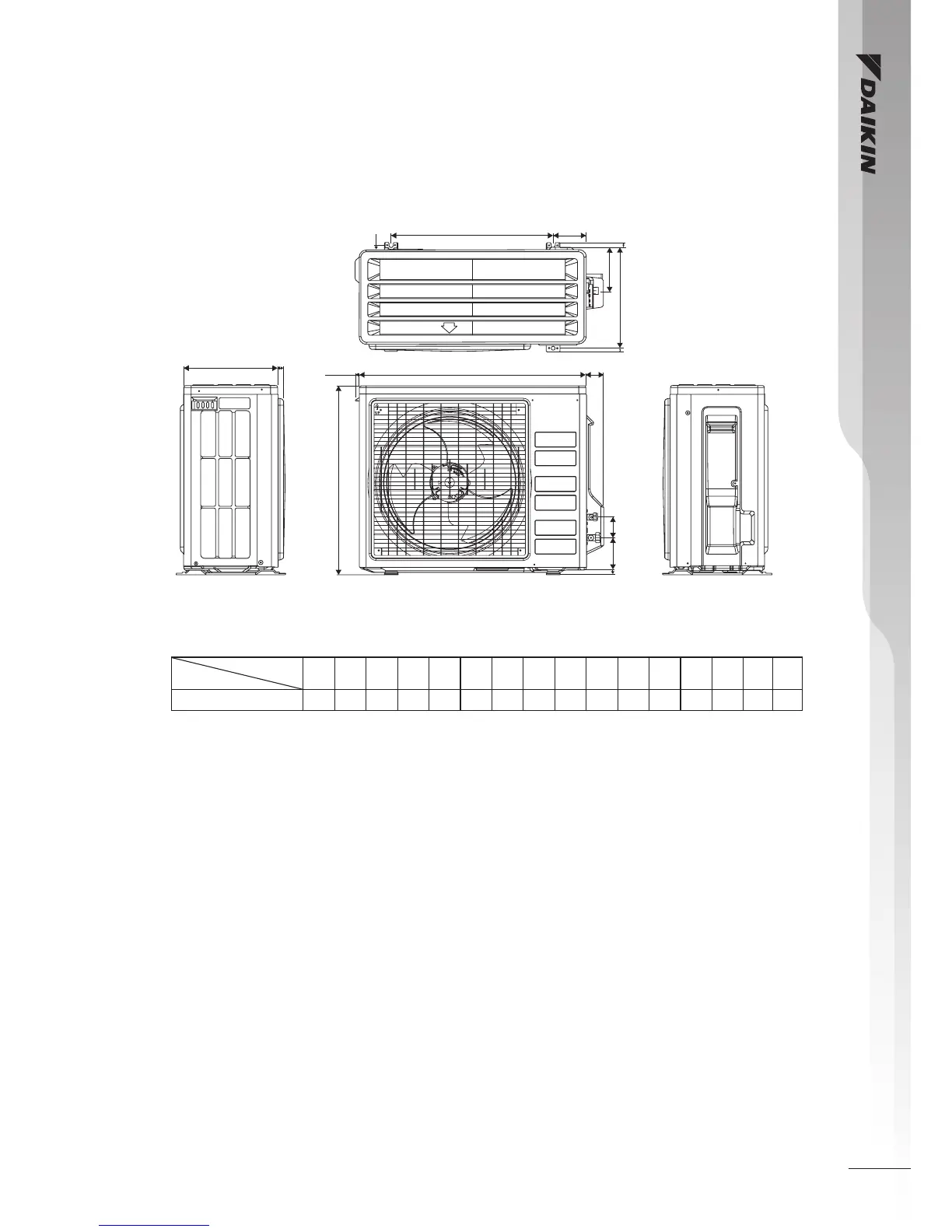

Outdoor Unit
Model: RN10/15FV1
Dimension
Model
A B C D E F G H I J K L M N O P
RN10/15FV1 550 658 51 11 273 16 14 470 96 299 94 60 14 133 8 8
H
N
J
G
B CD
E F
A
M K L
P
O
I
