Si001169 Removal of Outer Panels (Pattern 1)
Removal Procedure 9
8

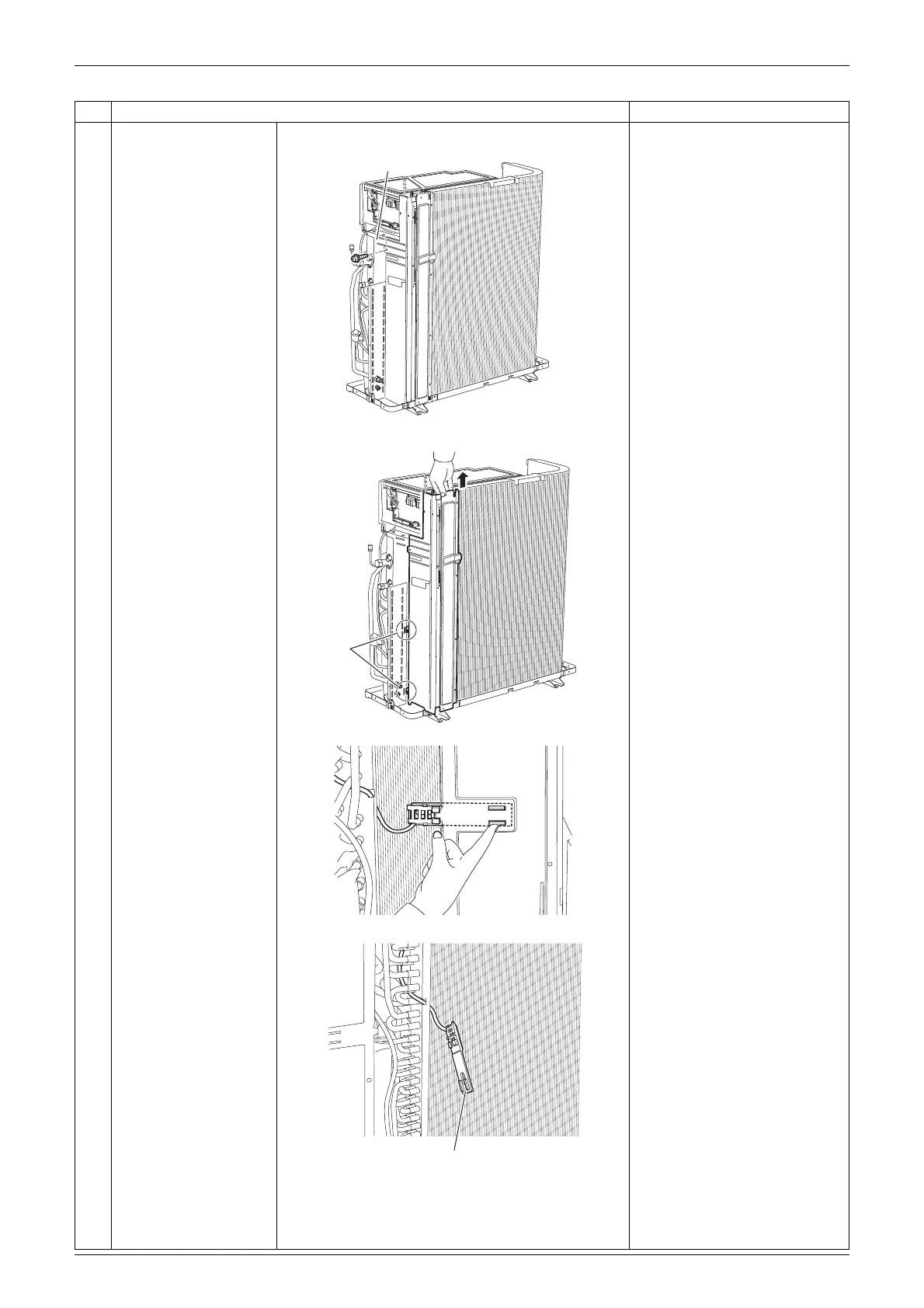

Remove the screw on
the stop valve mounting
plate.
9
Lift the rear panel
upward to unfasten the
2 hooks.
10
Push the hooks of the
outdoor temperature
thermistor holder from
inner-side of the rear
panel and detach it.
Step Procedure Points
Stop valve
mounting plate
(R16638)
(R16639)
Hook
(R9615)
Outdoor temperature thermistor holder
(R9616)
