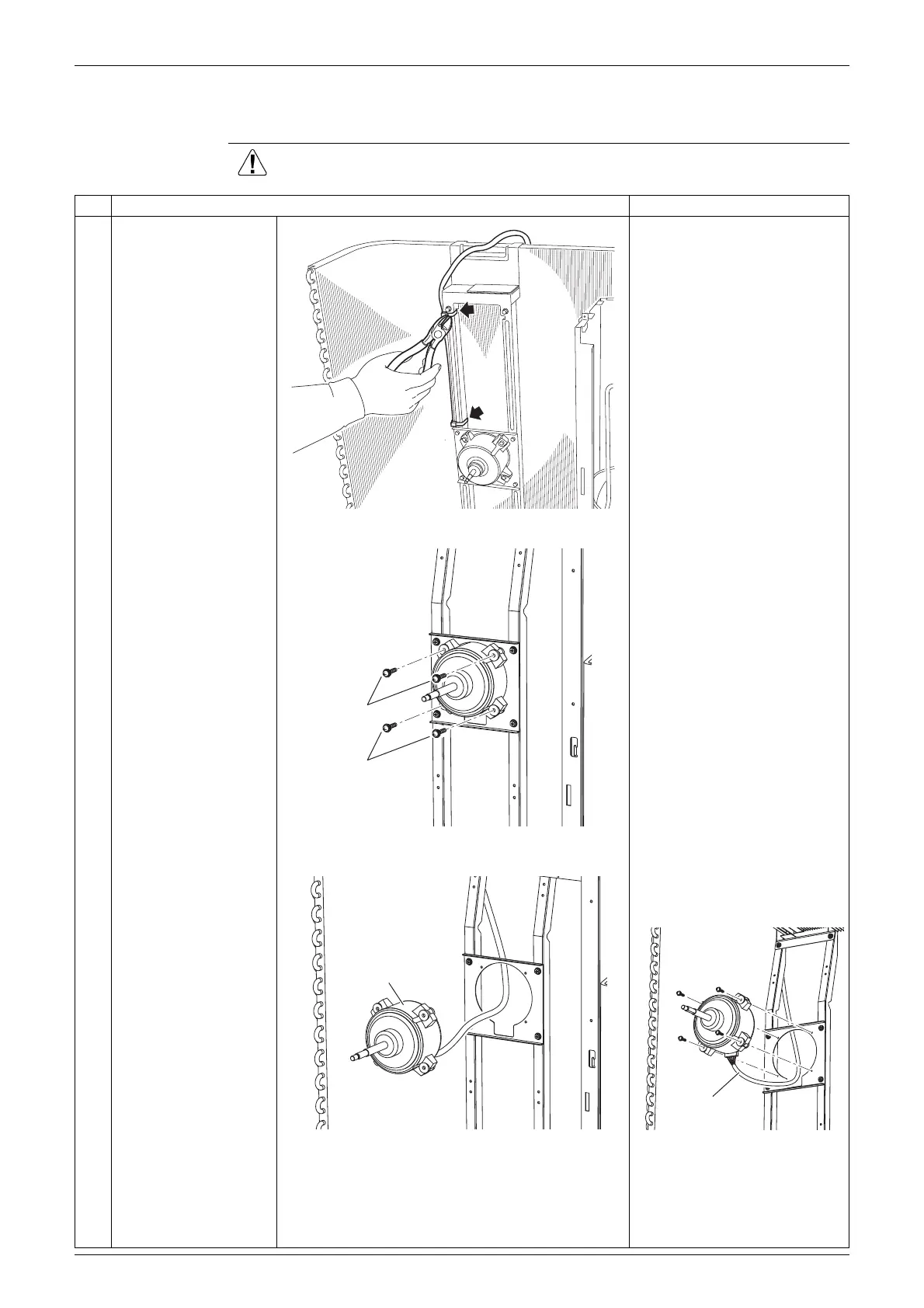

Si001169 Removal of Fan Motor
Removal Procedure 27
5. Removal of Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1 Cut the clamps at 2
locations.
Preparation
Remove the electrical box
according to the "Removal of
Electrical Box".
2
3
Remove the 2 lower
screws first.
Then, remove the 2
upper screws.
Be sure to remove the lower
screws first. If the top screws
are removed first, the fan
motor may tilt down or fall
and cause injury because its
center of gravity is shifted to
the front.
4 Remove the fan motor.
When reassembling, make
sure that the wire harness is
facing downward.
(R9630)
2
1
(R6442)
Fan motor
(R6443)
Harness
(R6444)
