Removal of Coils / Thermistors Si001169
28 Removal Procedure

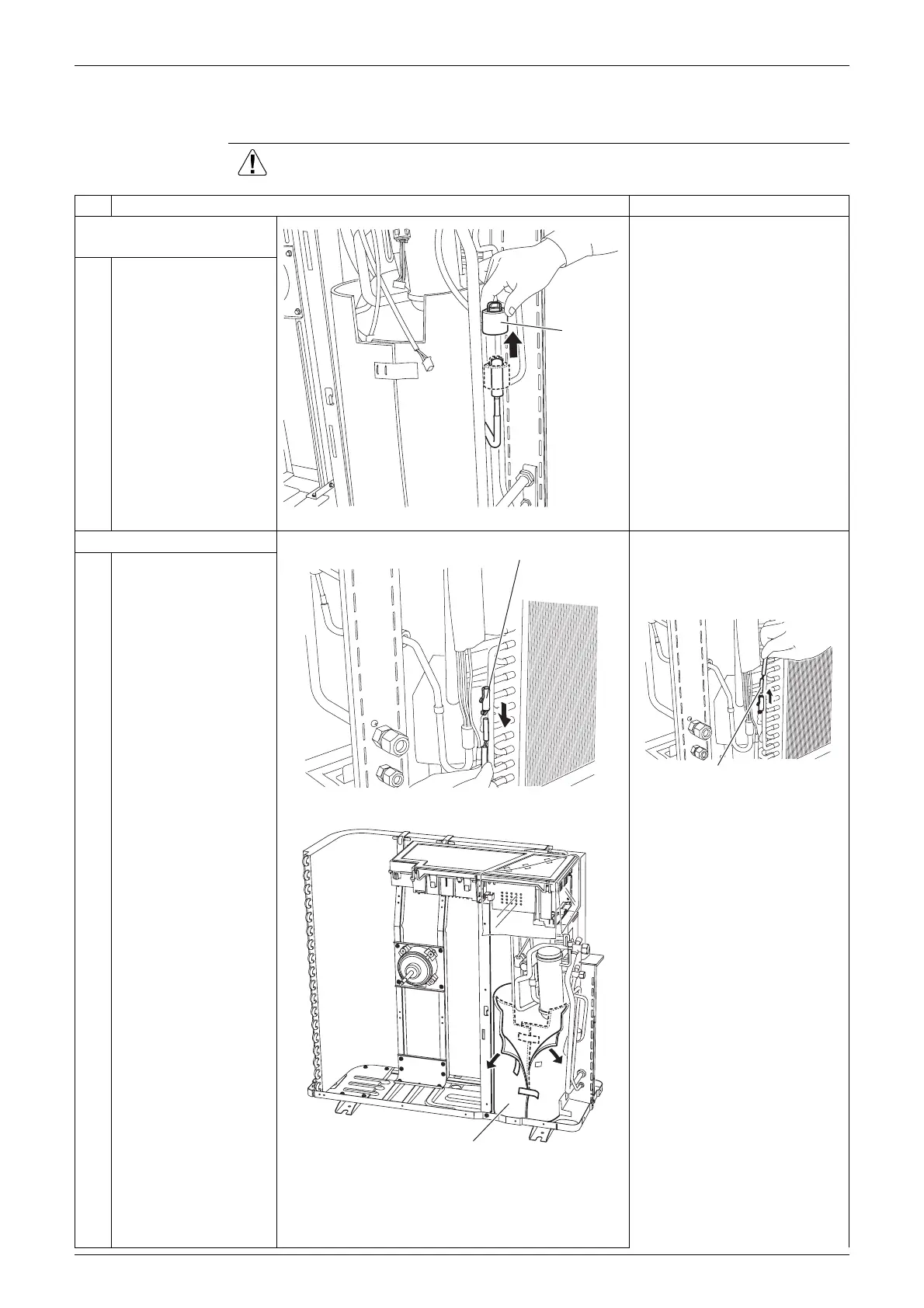

6. Removal of Coils / Thermistors
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the electronic
expansion valve coil.
1 Pull the electronic
expansion valve coil
out.
2. Remove the thermistors.
The position of outdoor heat
exchanger thermistor is
different depending on the
model.
You can remove the
thermistor ASSY with the
electrical box on.
(1) Disconnect [S90] from the
electrical box (main PCB).
(2) Release the thermistor
harness from the hook at the
bottom of electrical box.
(3) Pull out the clamp of the
thermistor harness from the
hole of the electrical box.
1
Pull out the outdoor
heat exchanger
thermistor.
2
Slightly open the sound
blanket (outer).
Electronic
expansion
valve coil
(R9631)
Outdoor heat exchanger thermistor
(R17236)
Outdoor heat exchanger
thermistor
(R9632)
Sound blanket (outer)
(R9633)
To Next Page
