Si001169 Removal of Compressor
Removal Procedure 33

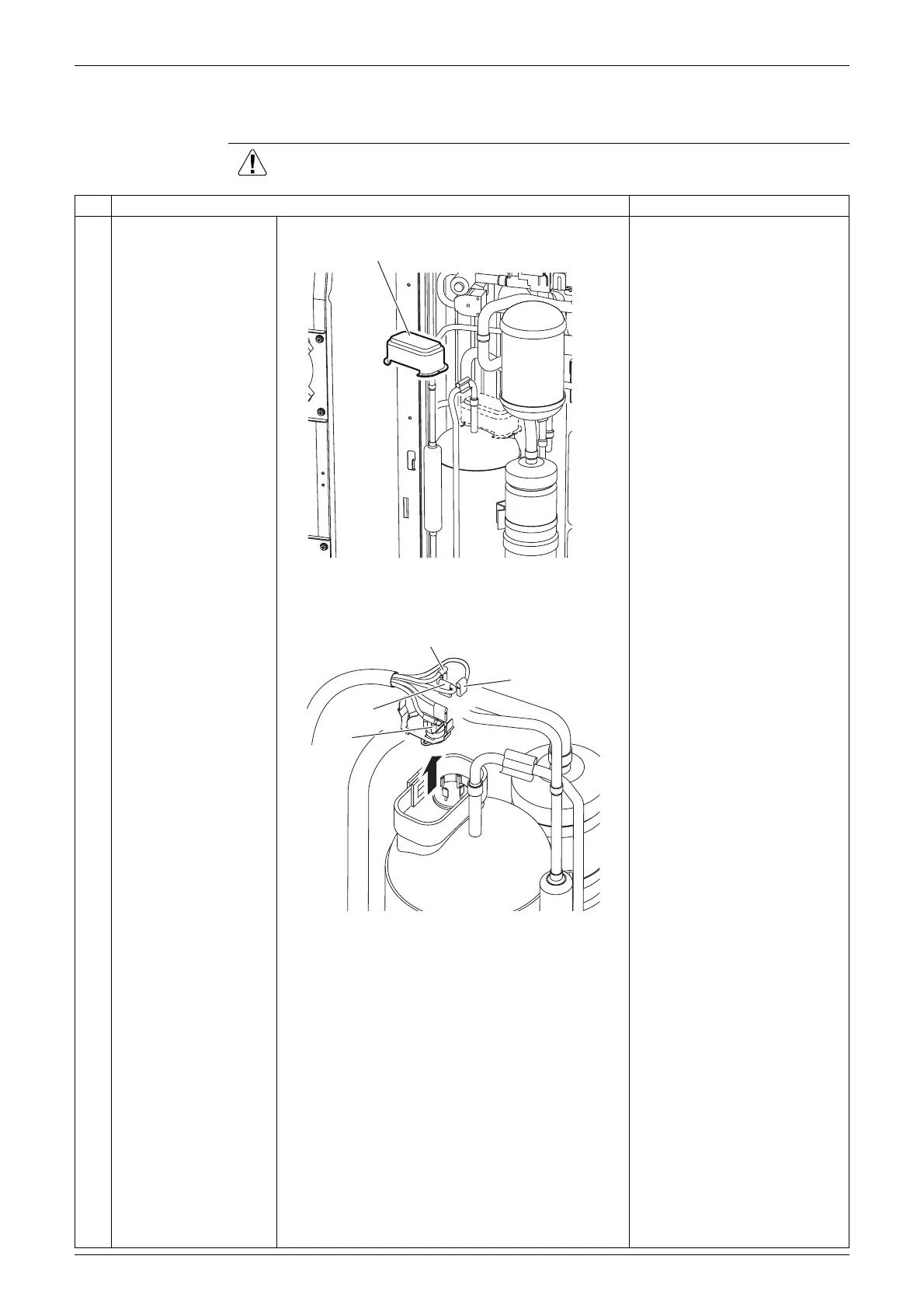

8. Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Remove the terminal
cover.
2
Pull out the 3 lead
wires.

U: red, V: yellow, W: blue
3
Remove the overload
protector (OL).
Terminal cover
(R9650)
W (blue)
U (red)
V (yellow)
OL
(R9471)
