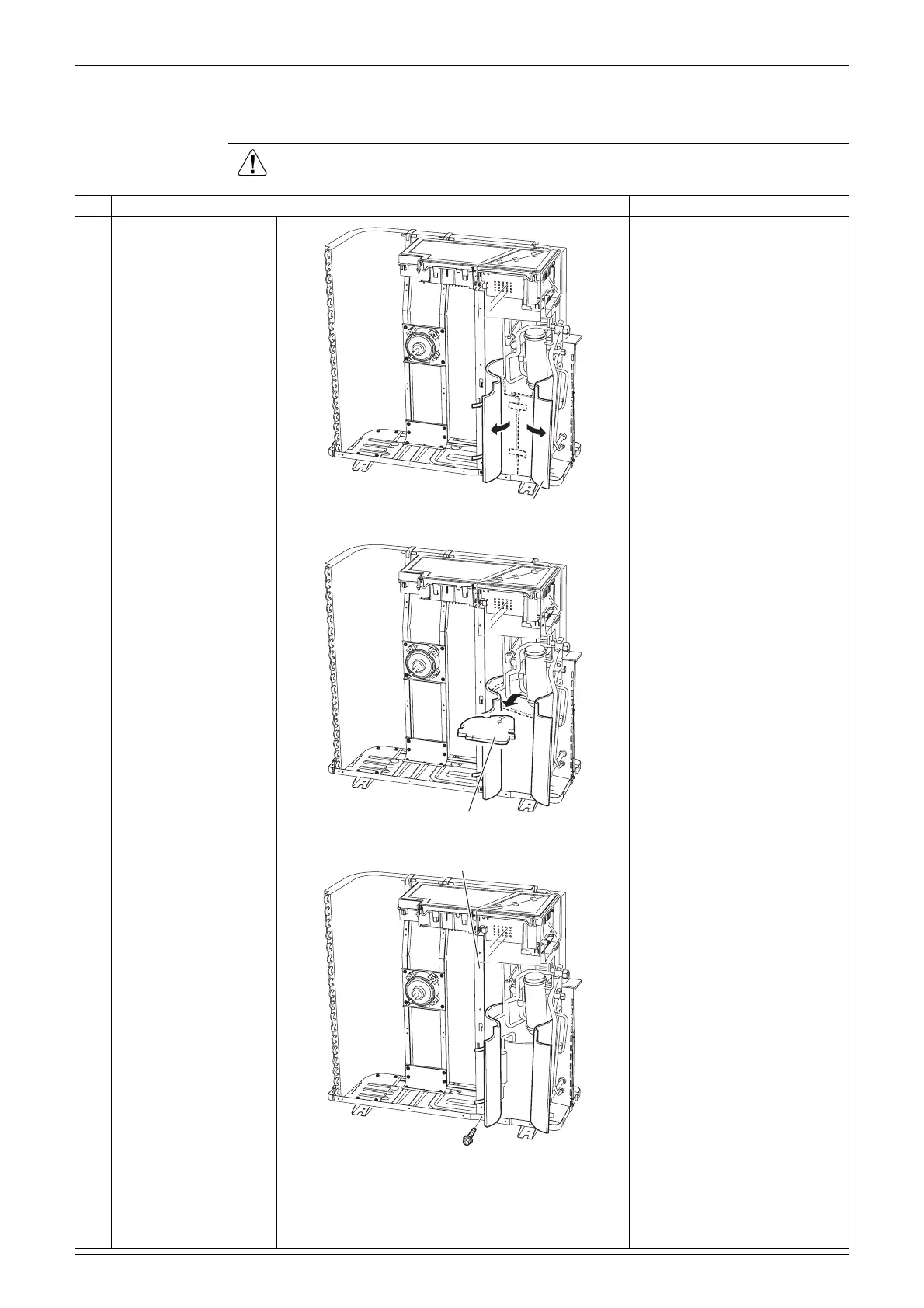

Si001169 Removal of Sound Blankets
Removal Procedure 31
7. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Open the sound blanket
(outer).
2
Remove the sound
blanket (top upper).

The sound blanket is fragile.
Carefully pass the discharge
pipe through it.
3
Remove the screw and
slightly push the
partition plate (1) to the
left for easy work.
(R16921)
Sound blanket
(outer)
Sound blanket
(top upper)
(R9641)
Partition plate (1)
(R9642)
