Removal of Electrical Box Si001169
20 Removal Procedure
3. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1 Remove the screw on
the stop valve mounting
plate.
2 Remove the screw on
the partition plate (1).
3 Remove the 2 screws
to detach the earth
wires.

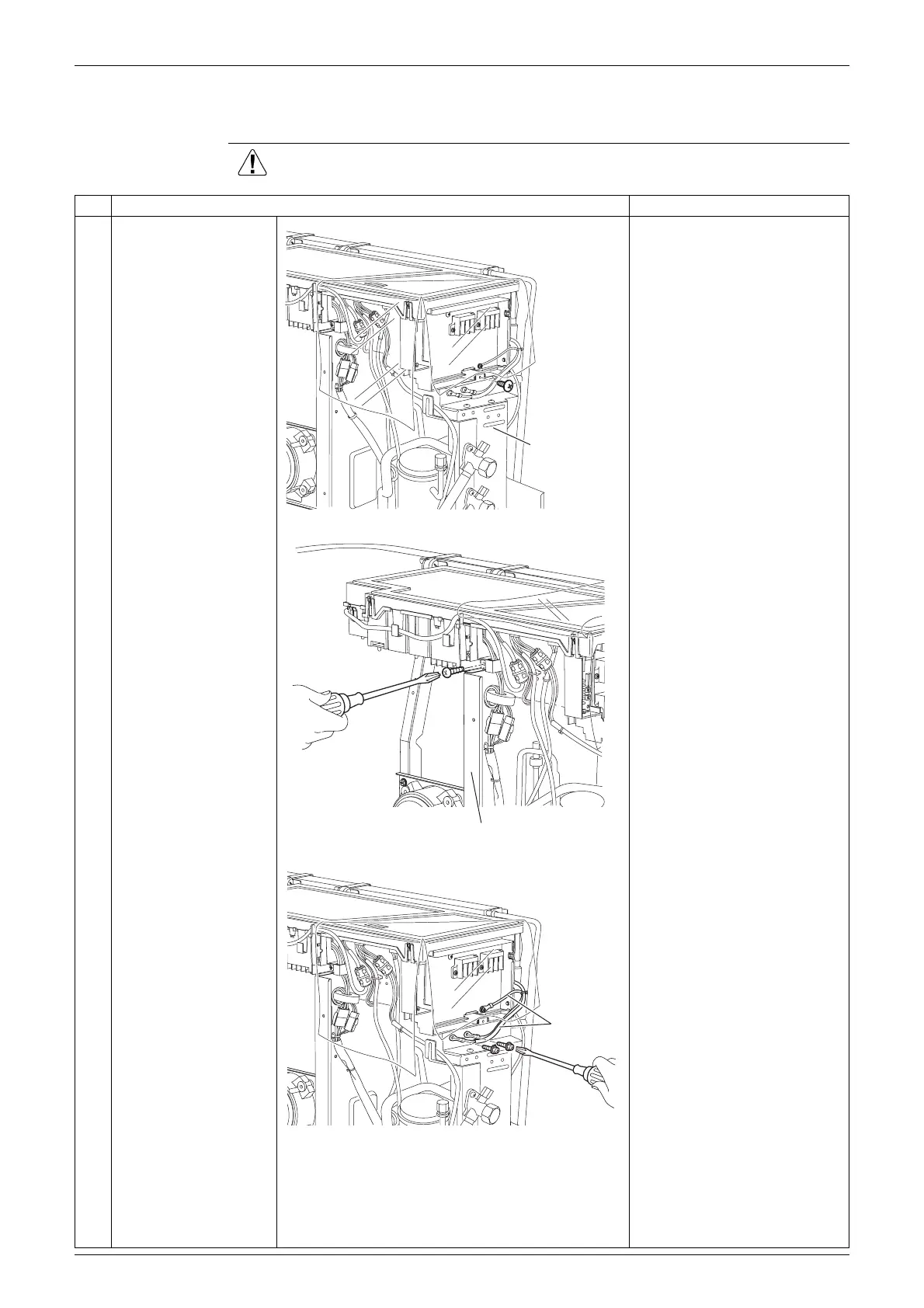

Stop valve
mounting plate
(R16641)
Partition plate (1)
(R16917)
Earth wire
(R17114)
