Si001169 Removal of Electrical Box
Removal Procedure 21
4

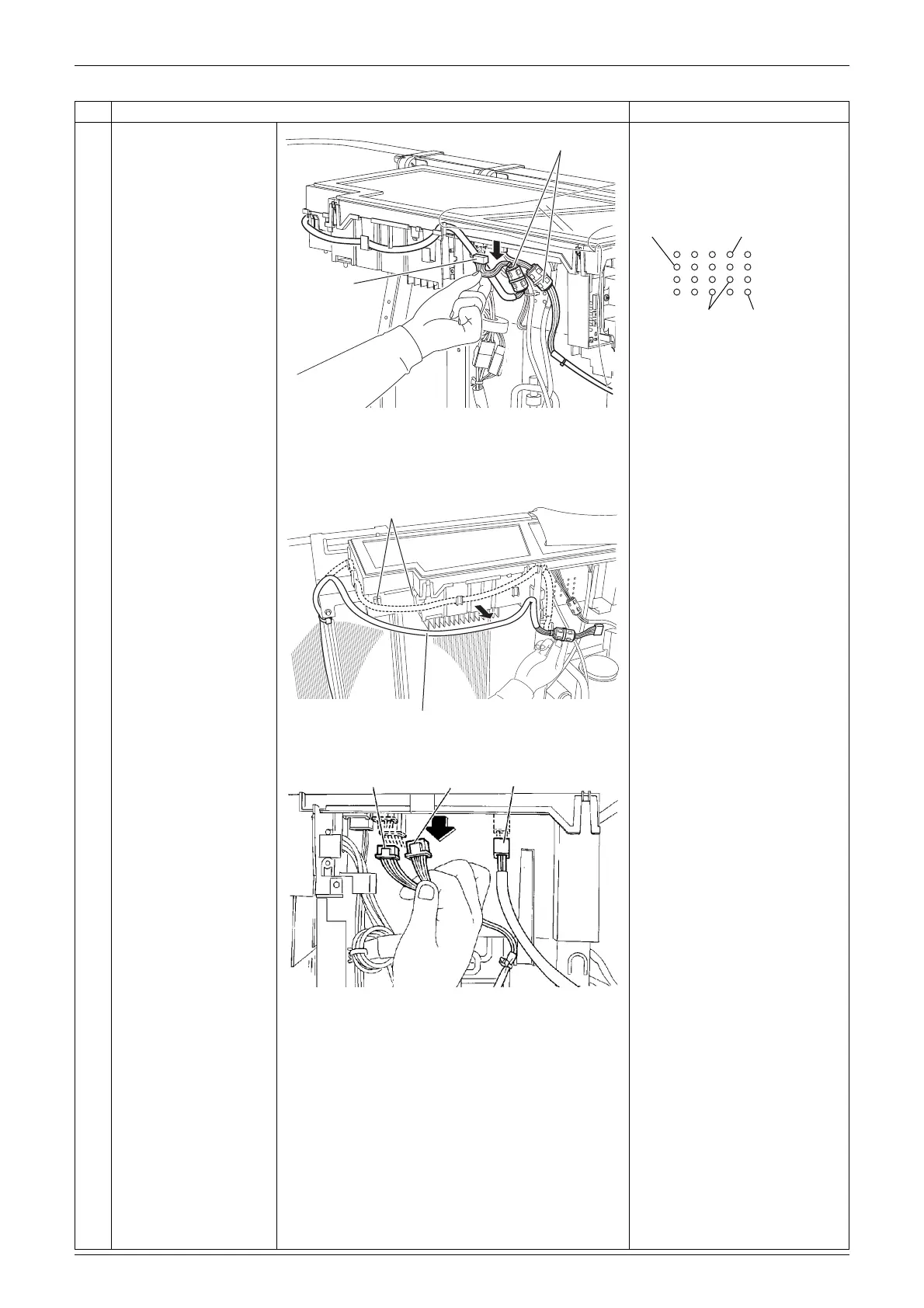

Disconnect the
connector for the fan
motor [S70] and release
the 4 clamps attached
to the electrical box.
When reassembling, insert
each clamp into the small
hole.
5
Release the fan motor
lead wire.
+
: When reassembling, do not
use these 3 hooks.
6
Disconnect the
connectors of the front
side.
[S20]: electronic expansion
valve coil
[S80]: four way valve coil
[S90]: thermistors
Step Procedure Points
[S70]
Ferrite core
(R17234)
For the ferrite core
of electronic
expansion valve coil
For the thermistor
ASSY harnesses
(either hole)
For the four way
valve coil harness
For the ferrite
core of fan
motor
(R16919)
(R17235)
Fan motor lead wire
[S20] [S90] [S80]
(R9622)
To Next Page
