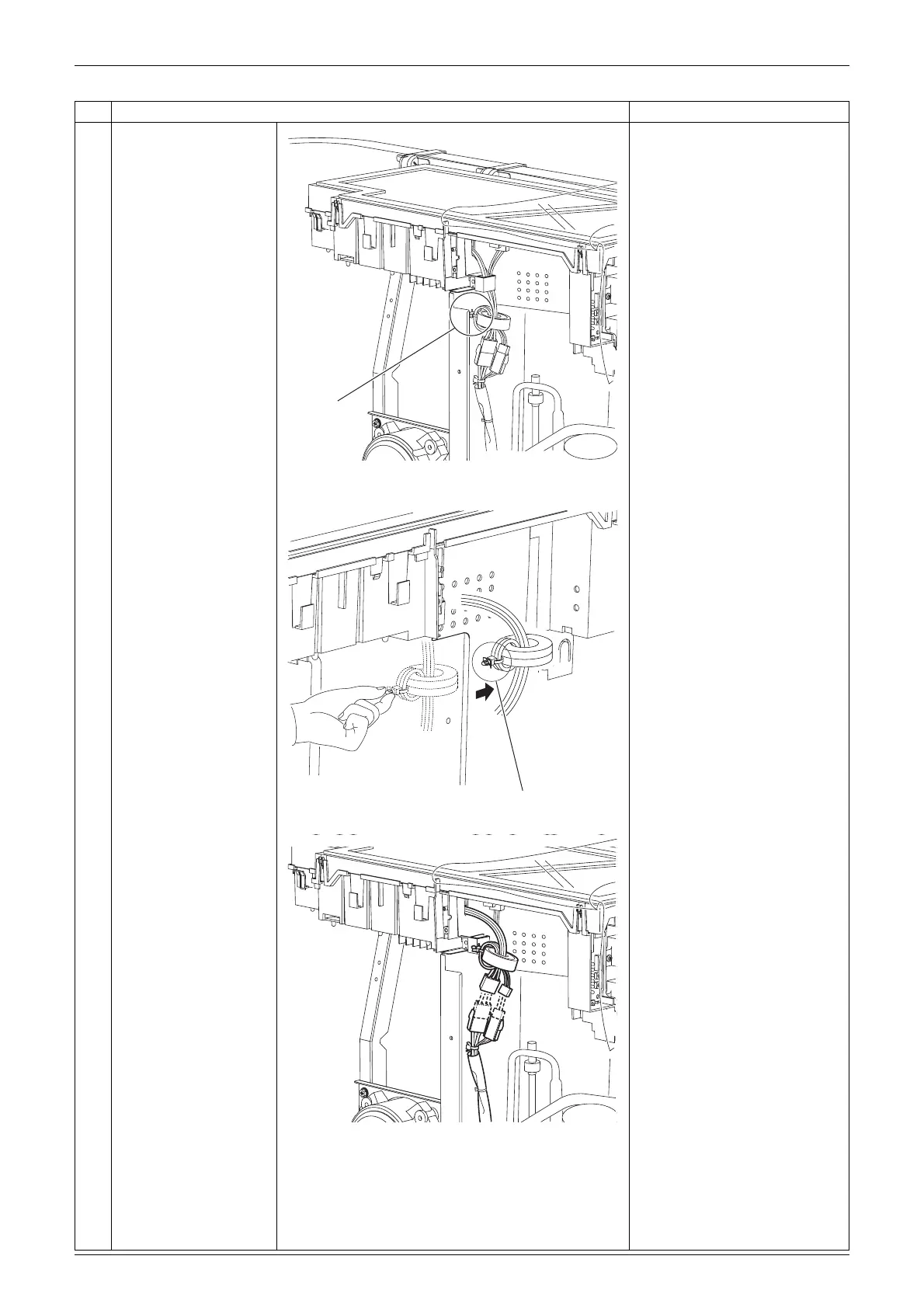

Removal of Electrical Box Si001169
22 Removal Procedure
7 The compressor lead
wire is fixed on the
partition plate (1) with a
clamp.
8 Pull out the clamp and
release the compressor
lead wire.
9 Disconnect the relay
connector for the
overload protector and
the compressor.
Step Procedure Points
(R9623)
Clamp
(R9624)
Clamp
(R9625)
