Removal of Outer Panels (Pattern 2) Si001169
14 Removal Procedure

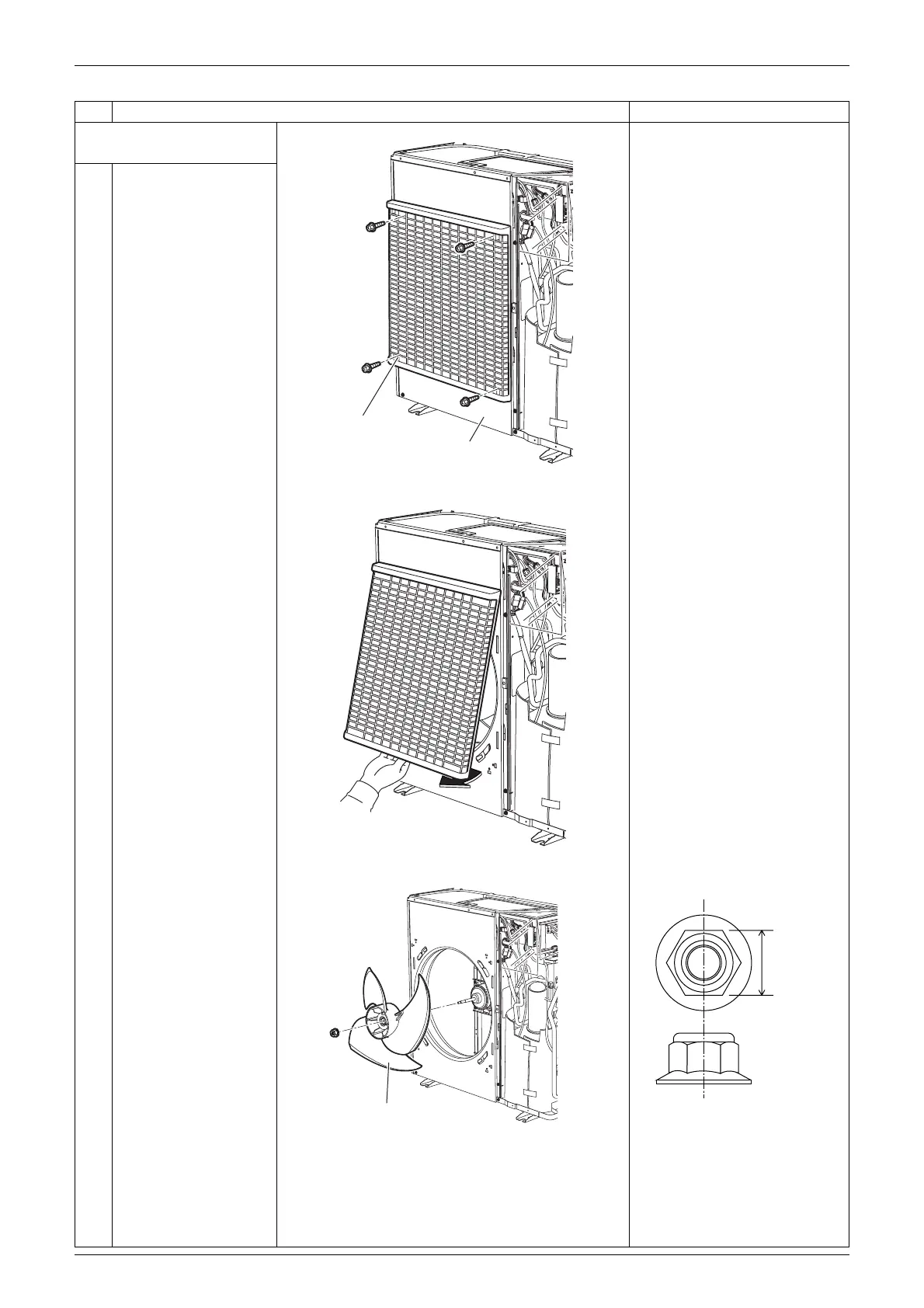

6. Remove the front panel
(1).

Remove the discharge grille
and the outdoor fan first to
remove the front panel (1).
1
Remove the 4 screws
on the discharge grille.
2
Pull the bottom of the
discharge grille and
remove it.
3
Remove the outdoor
fan fixing nut.

Nut size: M8
Step
Procedure Points
(R9757)
Discharge grille
Front panel (1)
(R9758)
(R16628)
Outdoor fan
13 mm
(0.51 inch)
(R17005)
