Si001169 Removal of PCBs
Removal Procedure 25
4

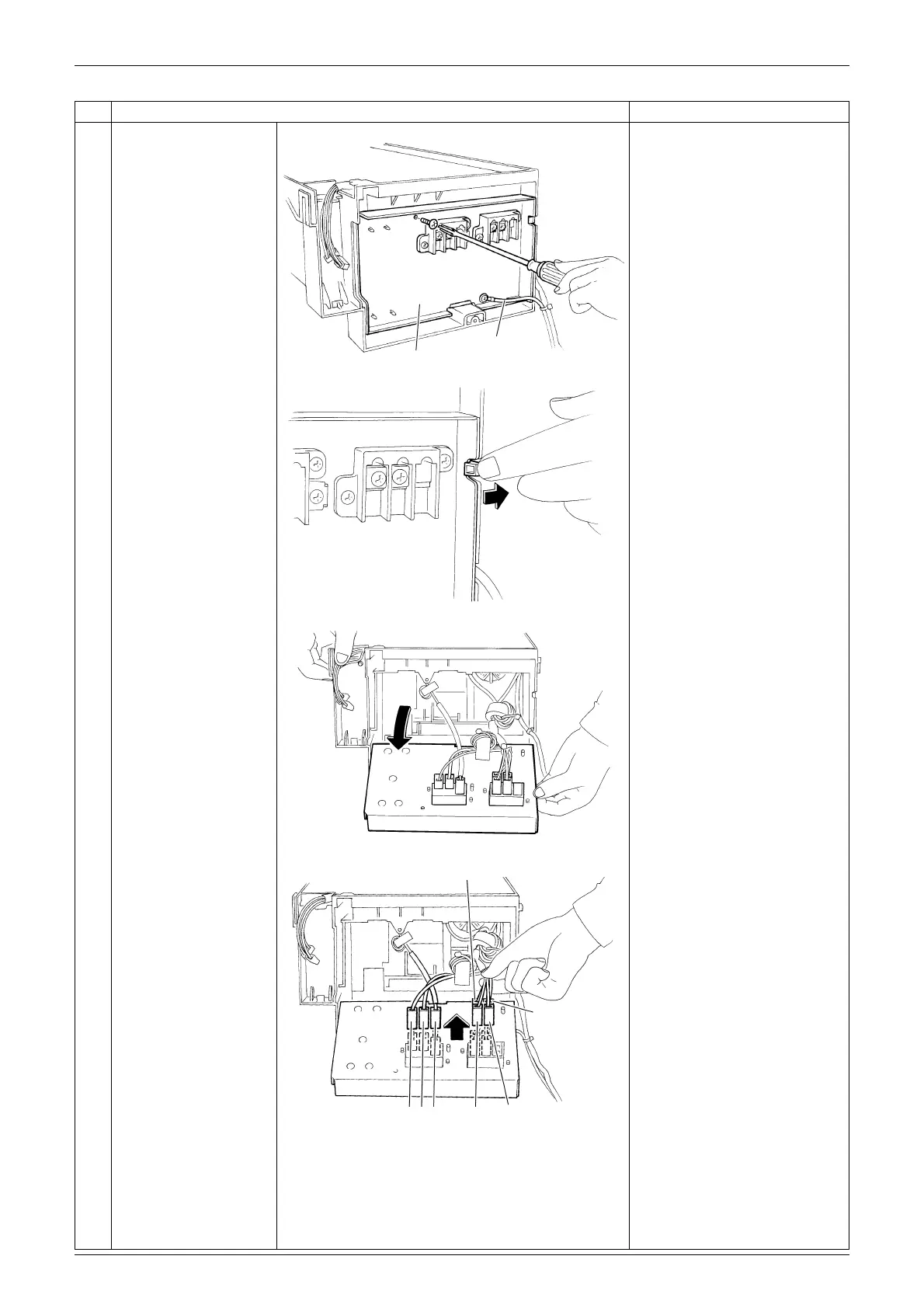

Remove the screws of
the terminal board and
the earth wire.
5
Unfasten the hook on
the right.
6
Open the terminal
board.
7
Disconnect the
harnesses.
1: Black
2: White
3: Red
L1: Black
L2: Brown
N1: White
N2: Blue
Step
Procedure Points
(R17030)
Terminal board
Earth wire
(R5283)
(R5284)
L2
N2
1
2
3
L1
N1
(R5285)
