Removal of Sound Blankets Si00-876
20 Removal Procedure
2. Remove the sound
blankets.

Since the piping ports are
torn easily, remove the
sound blanket carefully.
1
Remove the sound
blanket (top upper).
2
Remove the sound
blanket (top lower).

Some models do not have
the sound blanket (top
lower).
3
Remove the sound
blanket (outer).
4
Remove the sound
blanket (inner).

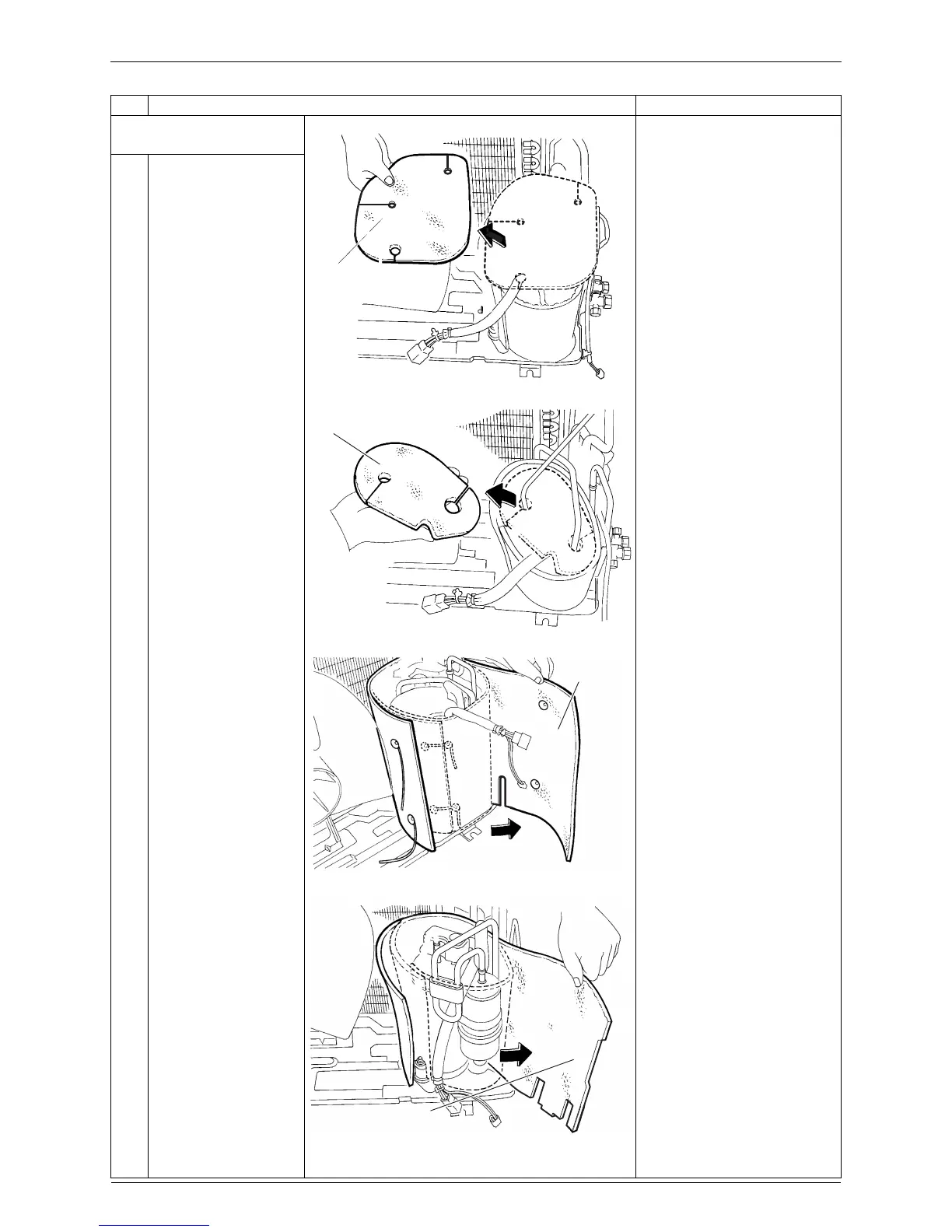

Step Procedure Points
Sound blanket
(top upper)
(R16441)
(R16442)
Sound blanket
(top lower)
(R16440)
Sound blanket
(outer)
Sound blanket
(inner)
(R16443)
