Removal of Outer Panels Si00-876
2 Removal Procedure
1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the panels.

Take care not to cut your
finger by the fins of the
outdoor heat exchanger.

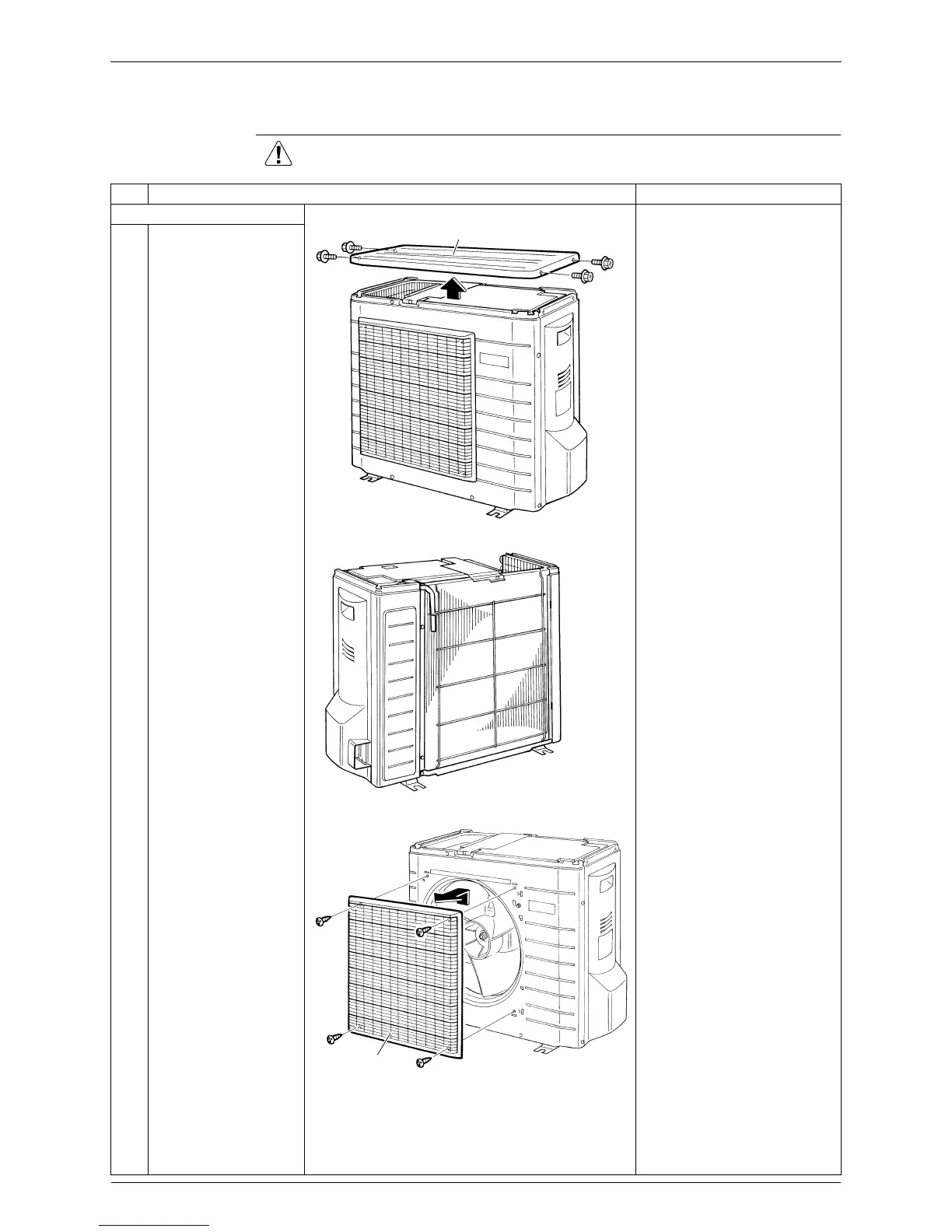

1
Remove the 4 screws
and lift the top panel.
2
Remove the 4 screws
and remove the
discharge grille.

Slide the discharge grille
upward and remove it.
Top panel
(R16425)
(R16426)
Discharge grille
(R16559)
