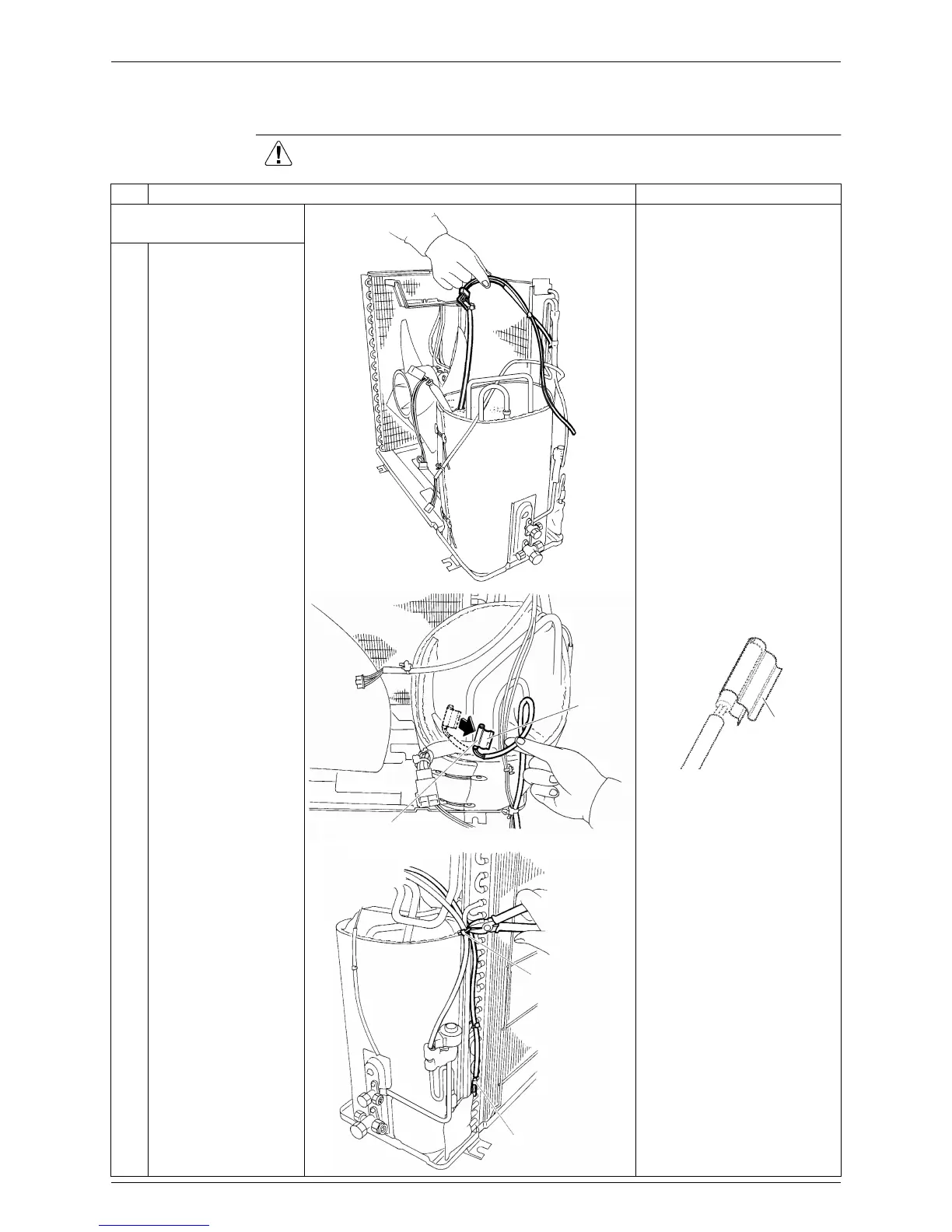

5. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the thermistor
ASSY.

Remove the outer panels
according to the “Removal
of Outer Panels / Fan
Motor”.

Remove the electrical box
according to the "Removal
of Electrical Box".
1
Release the discharge
pipe thermistor.

Be careful not to lose the
clip for the thermistor.
2
3
Cut the clamp and pull
out the outdoor heat
exchanger thermistor.
Remove the thermistor
ASSY.
(R16557)
(R16460)
Discharge pipe thermistor
Clip
(R12287)
Clip
Clamp
Outdoor heat exchanger
thermistor
(R16461)
