7 | Installation
Installer reference guide
36
RZAG71~140N
Sky Air Alpha-series
4P695307-1A – 2024.02

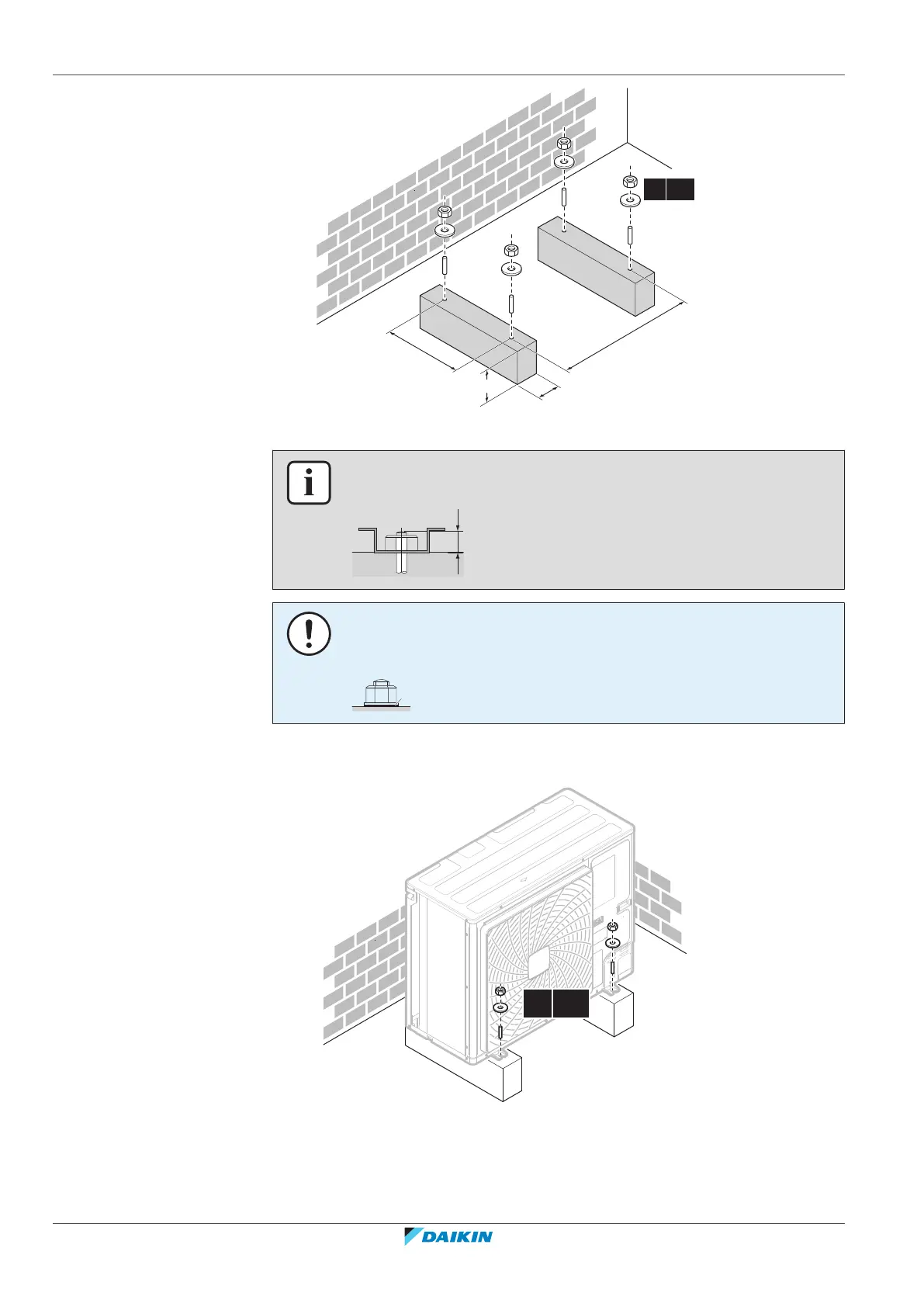

(mm)
758
>150
(480-490)
485
4× M12
a
a Make sure not to cover the drain holes of the bottom plate of the unit.
INFORMATION
The recommended height of the upper protruding part of the bolts is 20mm.
NOTICE
Fix the outdoor unit to the foundation bolts using nuts with resin washers (a). If the
coating on the fastening area is stripped off, the metal can rust easily.
7.3.4 To install the outdoor unit
7.3.5 To provide drainage
▪ Make sure that condensation water can be evacuated properly.
