Daikin Super Multi NX B series User Manual

Si12-308 Instruction
System Configuration 127

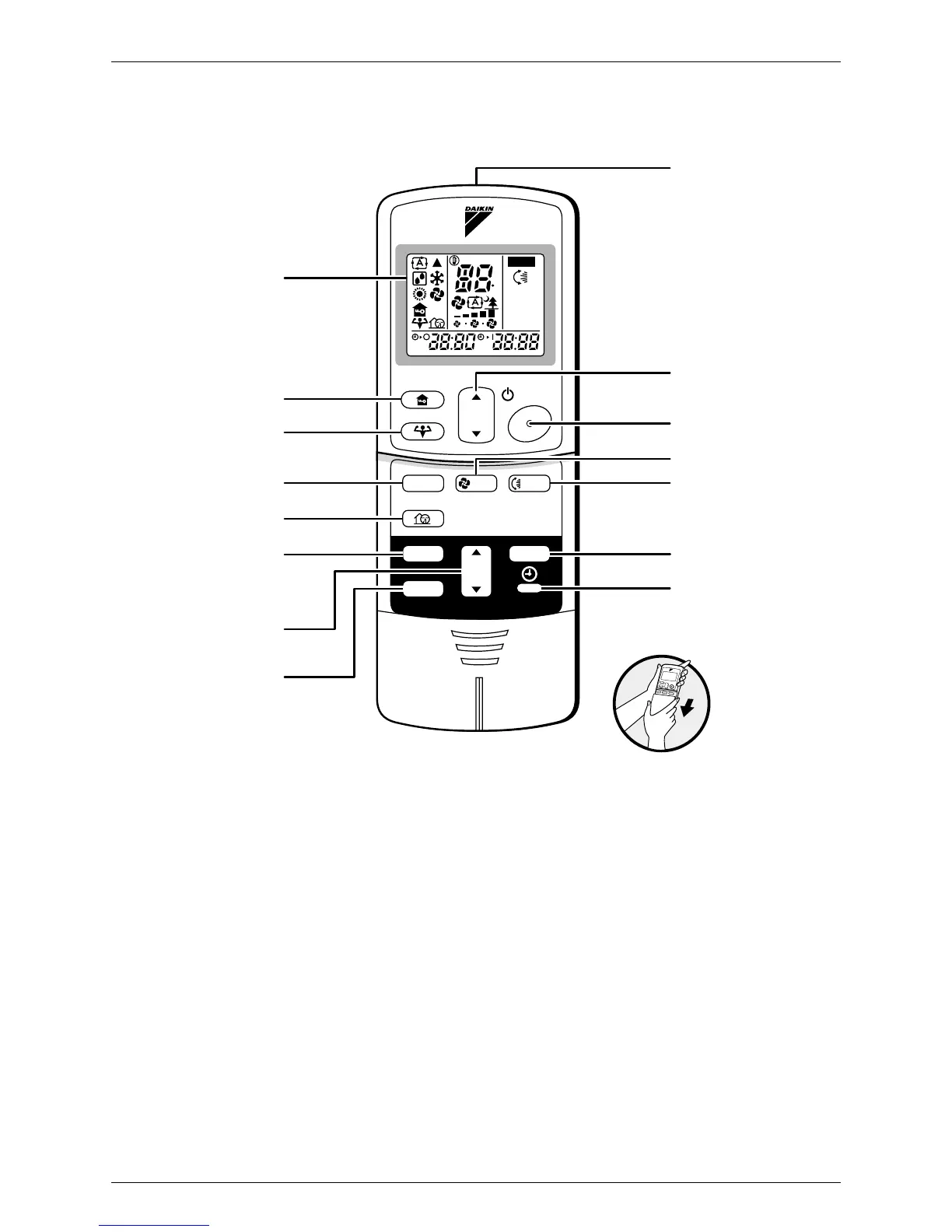

■ Remote Controller
1. Signal Transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation
4. POWERFUL button:
for POWERFUL operation
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. OUTDOOR UNIT SILENT button
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button
11. ON TIMER button
12. OFF TIMER button
13. TIMER Setting button:
• It changes the time setting.
14. TIMER CANCEL button:
• It cancels the timer setting.
15. CLOCK button
C
ON
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN SWING
SILENT
ON CANCEL
OFF
1
2
5
6
9
10
14
15
11
13
12
< ARC433A5, A6 >
3
4
7
8
