Daikin Super Multi NX B series

Outdoor Unit (80 / 90 Class) Si12-308
218 Removal Procedure
1. Outdoor Unit (80 / 90 Class)
1.1 Removal of Outer Panels
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step

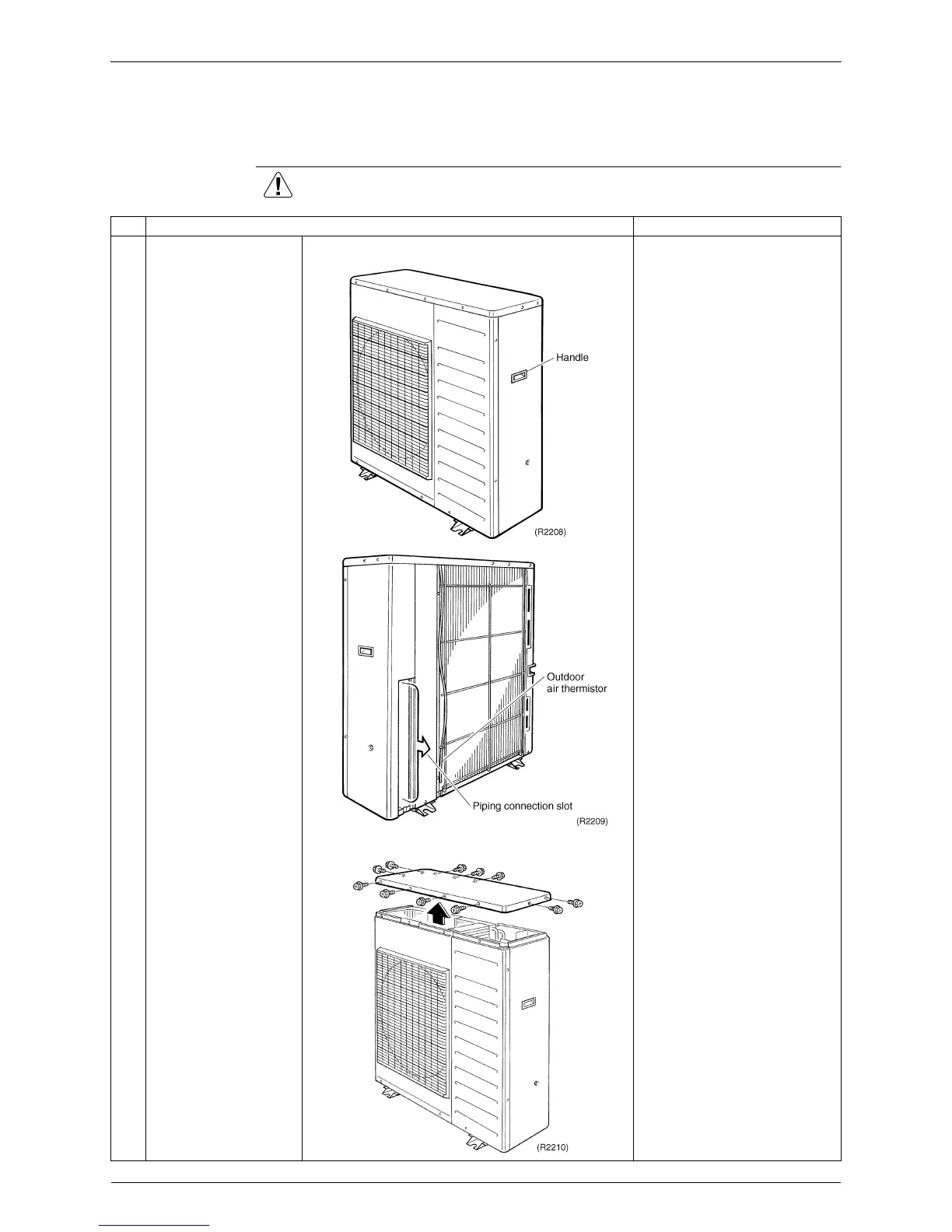

Procedure Points
1
External appearance.

Remove the piping in the
backward direction.
2
Remove 11 screws of
the top panel.
