Daikin Super Multi NX B series

Outdoor Unit (80 / 90 Class) Si12-308

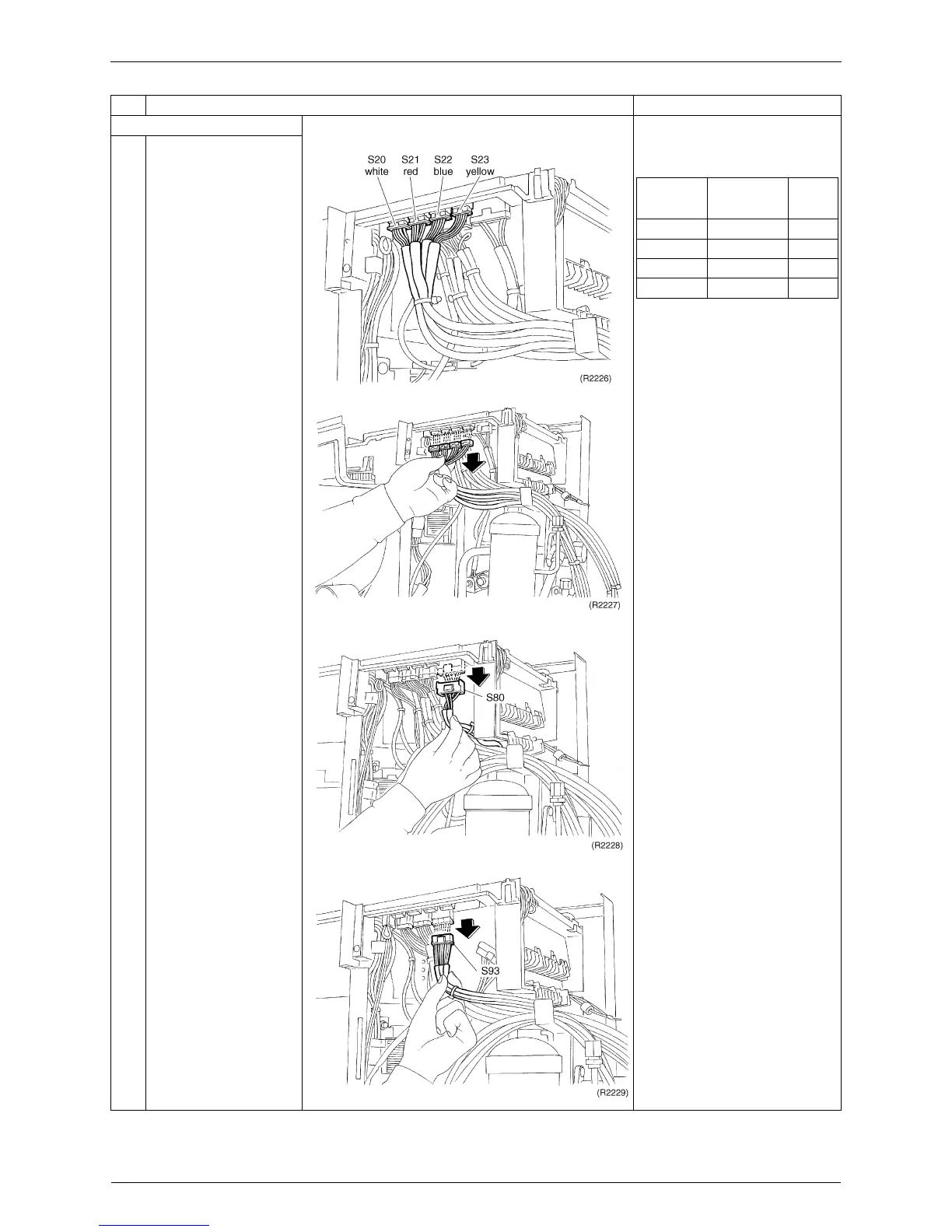

224 Removal Procedure
2. Remove each wire harness
1
Disconnect 4
connectors of the
electronic expansion
valve lead wires.

When reconnecting, make
sure to match the wire to the
correct connector.
2
Remove the four way
valve connector S80.
3
Remove the connector
S93 for liquid pipe
thermistor.
Step
Procedure Points
Connector Electronic
expansion
valve No.
Harness
length
S20 (White)
EVA 630
S21 (Red)
EVB 730
S22 (Blue)
EVC 825
S23 (Yellow)
EVD 940
