Daikin Super Multi NX B series

Si12-308 Outdoor Unit (52 / 58 / 68 / 75 Class)
Removal Procedure 249
7

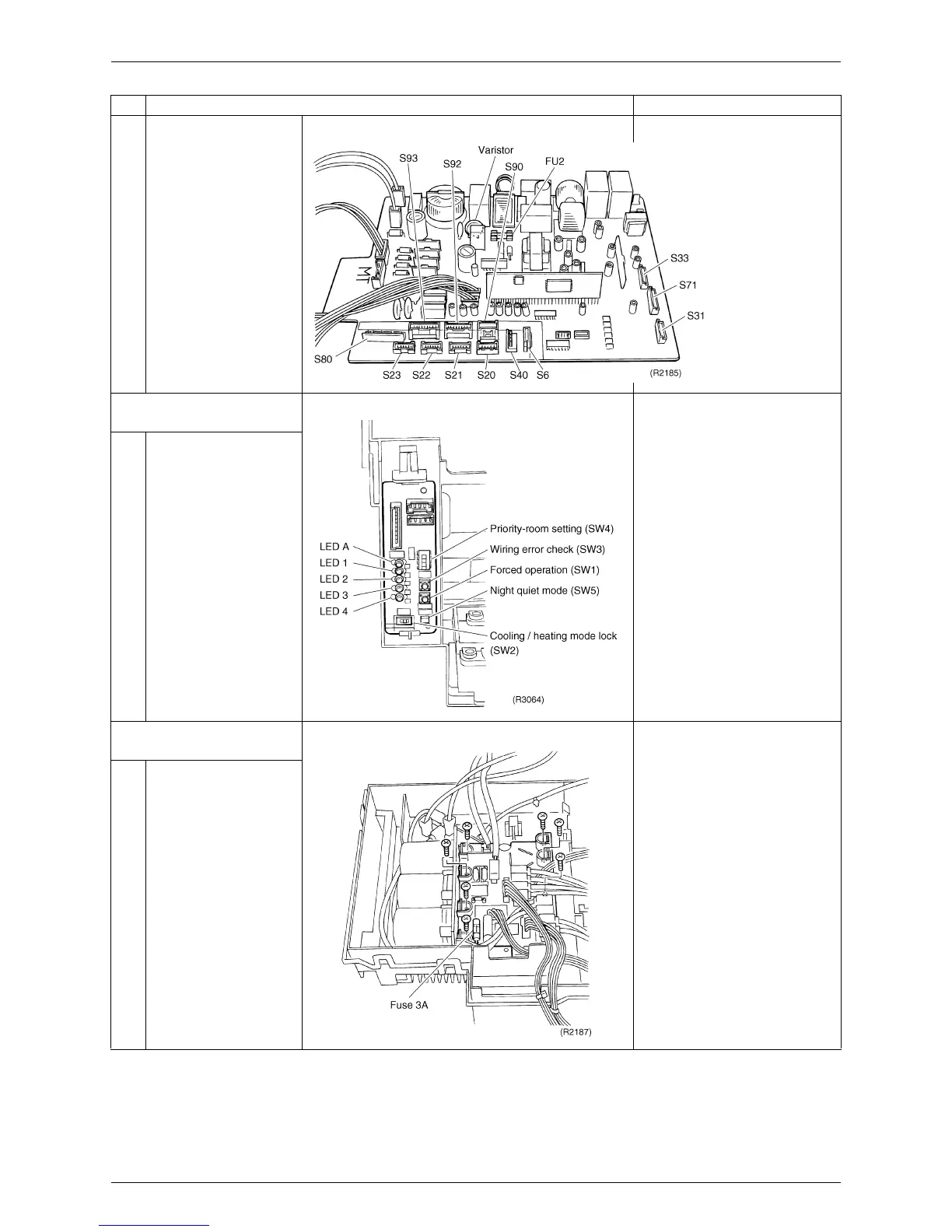

The figure shows the
control PCB.

Glass tube fuse 3A
2. Removing the service
monitor PCB
1
The figure shows the
service monitor PCB.
3. Removing the inverter
PCB.
1
Remove the 7 screws
of the inverter PCB.
Step
Procedure Points
