Daikin VRV IV - 26 Technical Data; 26.1 Service Space: Outdoor Unit

26 | Technical data
Installer and user reference guide
149
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10
26 Technical data
▪ A subset of the latest technical data is available on the regional Daikin website
(publicly accessible).
▪ The full set of latest technical data is available on the Daikin Business Portal
(authentication required).
In this chapter
26.1 Service space: Outdoor unit ................................................................................................................................................... 149
26.2 Piping diagram: Outdoor unit................................................................................................................................................. 151
26.3 Wiring diagram: Outdoor unit ................................................................................................................................................ 151

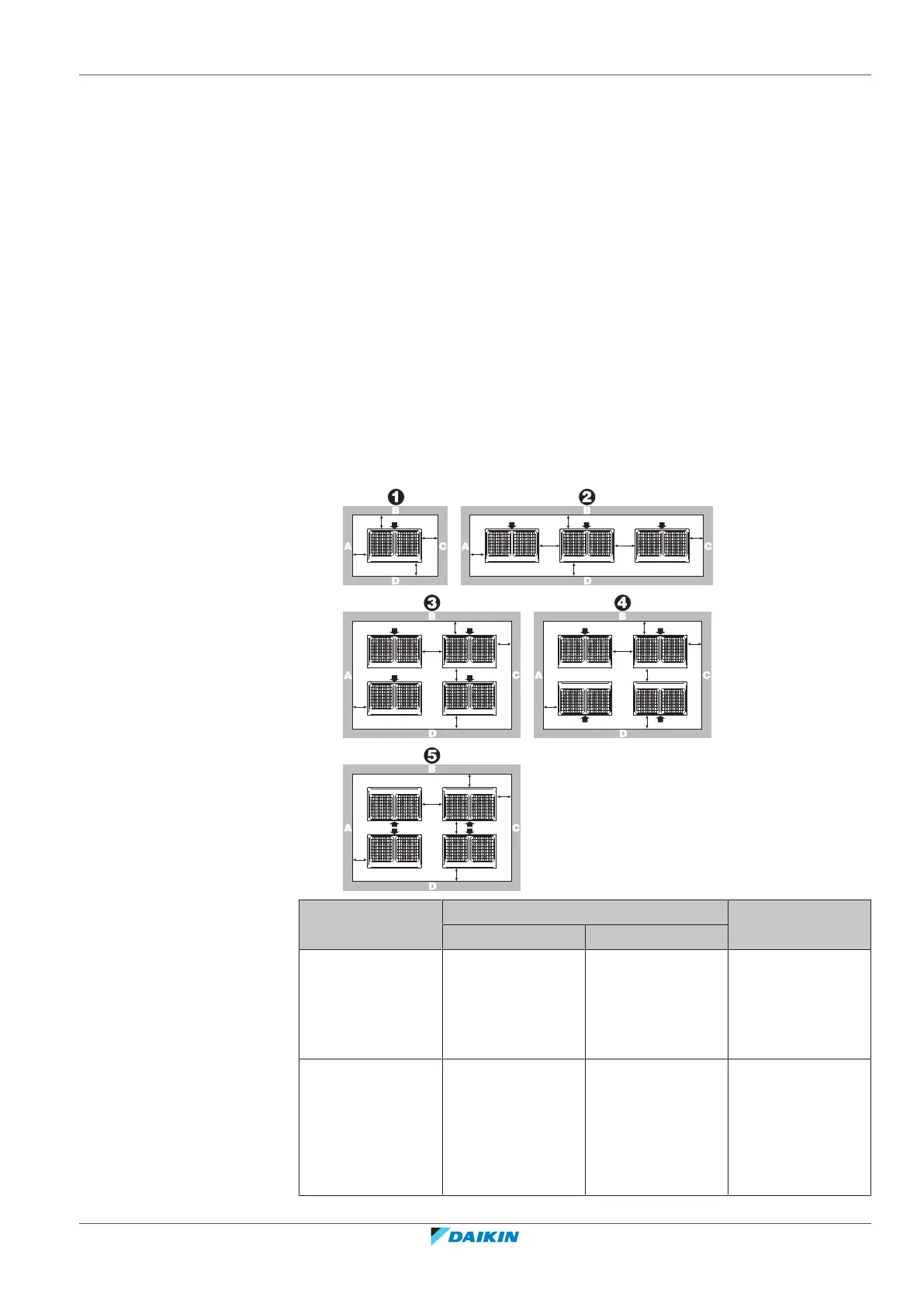

26.1 Service space: Outdoor unit
Make sure the space around the unit is adequate for servicing and the minimum
space for air inlet and air outlet is available (refer to the figure below and choose
one of the possibilities).
a
b
a
c
d
a
b
a
e
d
e
c
a
b
a
e
d
f
c
a
b
a
e
b
d
c
a
b
a
e
d
f
c
Layout A+B+C+D A+B
Possibility 1 Possibility 2
1 a≥10mm
b≥300mm
c≥10mm
d≥500mm
a≥50mm
b≥100mm
c≥50mm
d≥500mm
a≥200mm
b≥300mm
2 a≥10mm
b≥300mm
c≥10mm
d≥500mm
e≥20mm
a≥50mm
b≥100mm
c≥50mm
d≥500mm
e≥100mm
a≥200mm
b≥300mm
e≥400mm
