16 About the units and options
In this chapter
16.1 Overview: About the units and options ................................................................................................................................. 54
16.2 Identification label: Outdoor unit........................................................................................................................................... 54
16.3 About the outdoor unit .......................................................................................................................................................... 55
16.4 System layout.......................................................................................................................................................................... 55
16.5 Combining units and options.................................................................................................................................................. 56
16.5.1 About combining units and options....................................................................................................................... 56
16.5.2 Possible combinations of indoor units................................................................................................................... 56
16.5.3 Possible combinations of outdoor units................................................................................................................ 56
16.5.4 Possible options for the outdoor unit.................................................................................................................... 57
16.1 Overview: About the units and options
This chapter contains information about:
▪ Identification of the outdoor unit
▪ Where the outdoor unit fits in the system layout
▪ With which indoor units and options you can combine the outdoor units

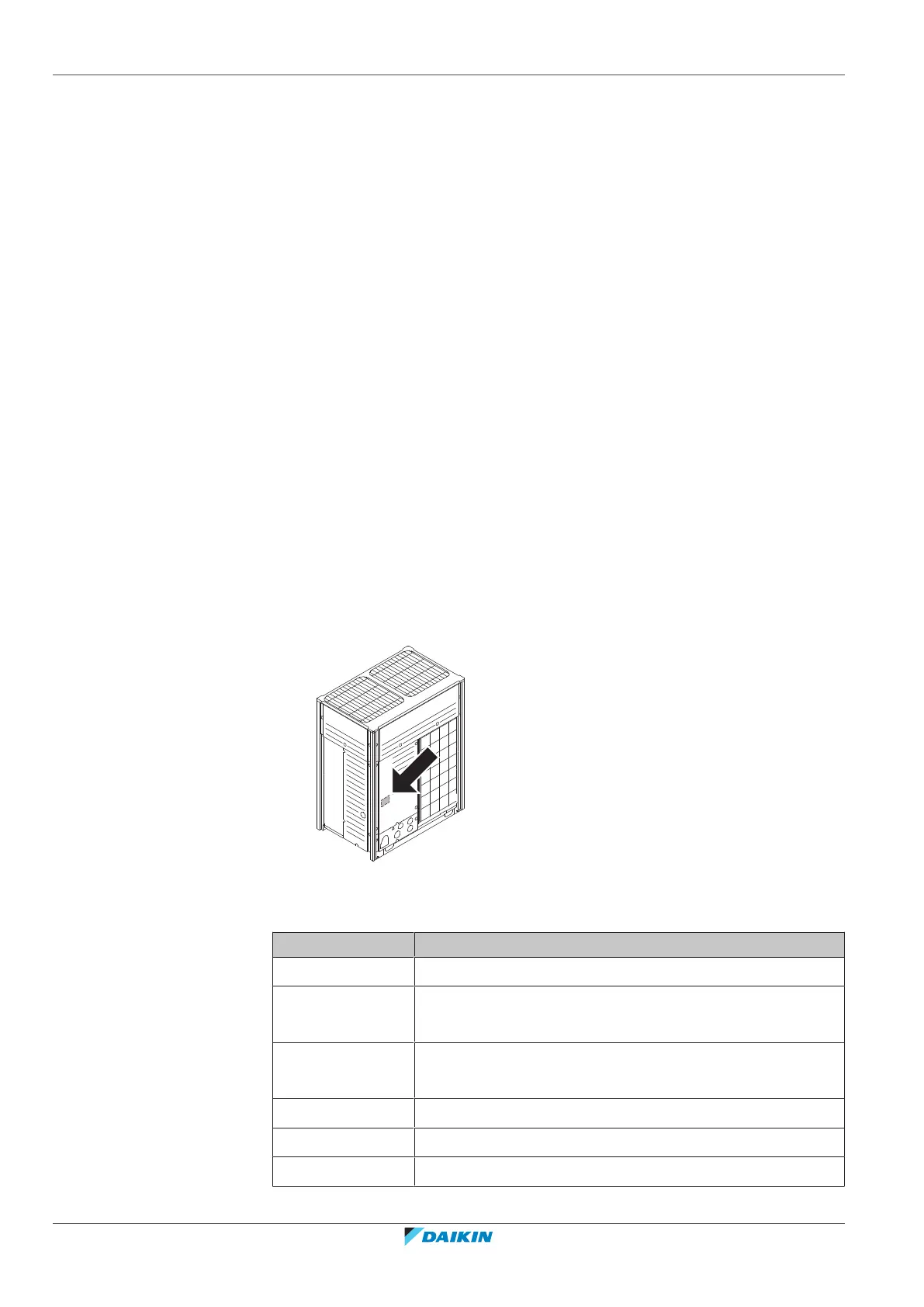

16.2 Identification label: Outdoor unit
Location
Model identification
Example: R X Y L Q 10 T7 Y1 B [*]
Code Explanation
R Outdoor air cooled
X Y=Heat pump (continuous heating)
X=Heat pump (no continuous heating)
Y Y=Pair module only
(a)
M=Multi module only
L Low ambient
Q Refrigerant R410A
10 Capacity class
