15 | About the box
Installer and user reference guide
50
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10
15 About the box
In this chapter
15.1 About LOOP BY DAIKIN ........................................................................................................................................................... 50
15.2 Overview: About the box........................................................................................................................................................ 50
15.3 To unpack the outdoor unit ................................................................................................................................................... 51
15.4 To remove the accessories from the outdoor unit................................................................................................................ 51
15.5 Accessory pipes: Diameters.................................................................................................................................................... 52
15.6 To remove the transportation stay ........................................................................................................................................ 52
15.1 About LOOP BY DAIKIN
is part of Daikin's wider commitment to reduce our environmental footprint.
With we want to create a circular economy for refrigerants. One of the actions
to achieve this, is the reuse of reclaimed refrigerant in VRV units produced and sold
in Europe. For more information about the countries that are in scope, visit: http://
www.daikin.eu/loop-by-daikin.
15.2 Overview: About the box
This chapter describes what you have to do after the box with the outdoor unit is
delivered on-site.
It contains information about:
▪ Unpacking and handling the outdoor unit
▪ Removing the accessories from the unit
▪ Removing the transportation stay
Keep the following in mind:
▪ At delivery, the unit MUST be checked for damage. Any damage MUST be
reported immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation position to
prevent damage during transport.
▪ When handling the unit, take into account the following:
Fragile, handle the unit with care.
Keep the unit upright in order to avoid compressor damage.
▪ Prepare the path along which you want to bring the unit inside in advance.

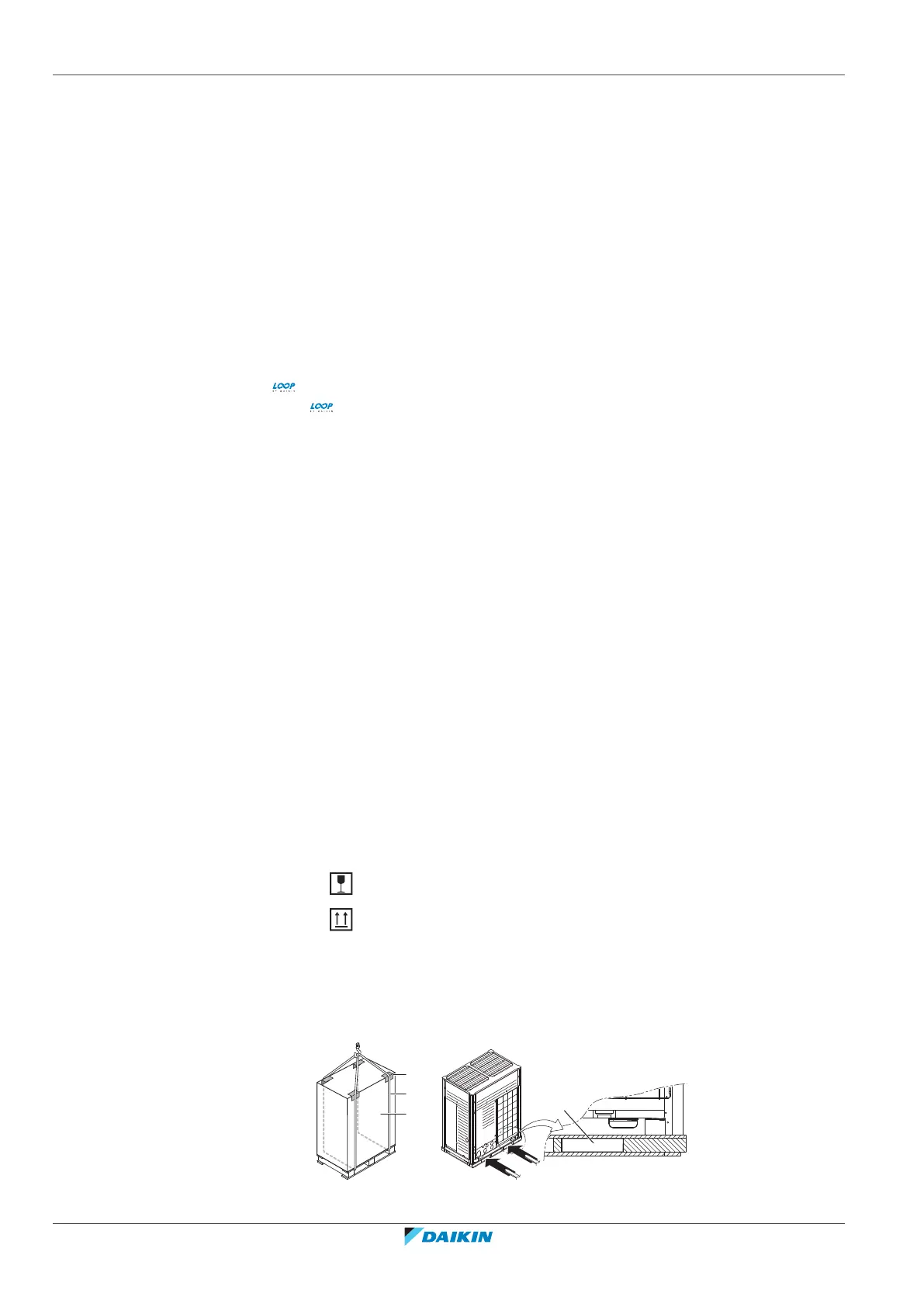

▪ Lift the unit preferably with a crane and 2 belts of at least 8m long as shown in
the figure below. Always use protectors to prevent belt damage and pay
attention to the position of the unit's centre of gravity.
a Packaging material
