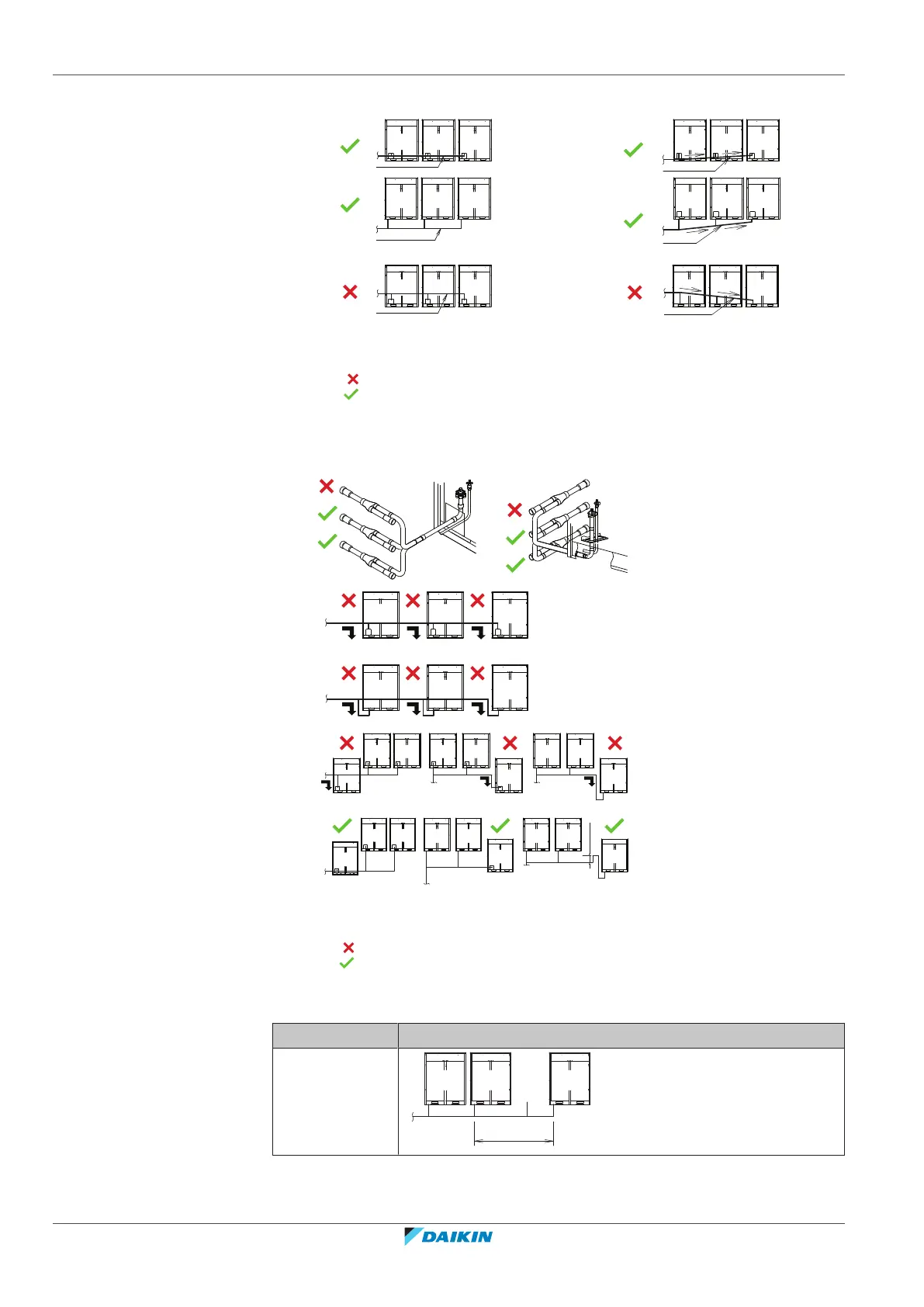

18 | Piping installation
Installer and user reference guide
80
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10
Pattern 1
a
b
b
a
Pattern 2
b
a
a
b
a
b
b
a
a
a To indoor unit
b Piping between outdoor units
NOT allowed (oil remains in piping)
Allowed
▪ To avoid the risk of oil retention to the outmost outdoor unit, always connect the
stop valve and the piping between outdoor units as shown in the 4 correct
possibilities of the figure below.
a
b b b
a
b b b
a
b
a
b
a
b
a
a
a
≥200 mm
a To indoor unit
b Oil collects to the outmost outdoor unit when the system stops
NOT allowed (oil remains in piping)
Allowed
▪ If the piping length between the outdoor units exceeds 2 m, create a rise of
200mm or more in the gas line within a length of 2m from the kit.
If Then
≤2m
a
b
≤2 m
