Oil Heater
The oil sump is equipped with an immersion heater that is installed in a tube so that it can be removed without disturbing the oil.

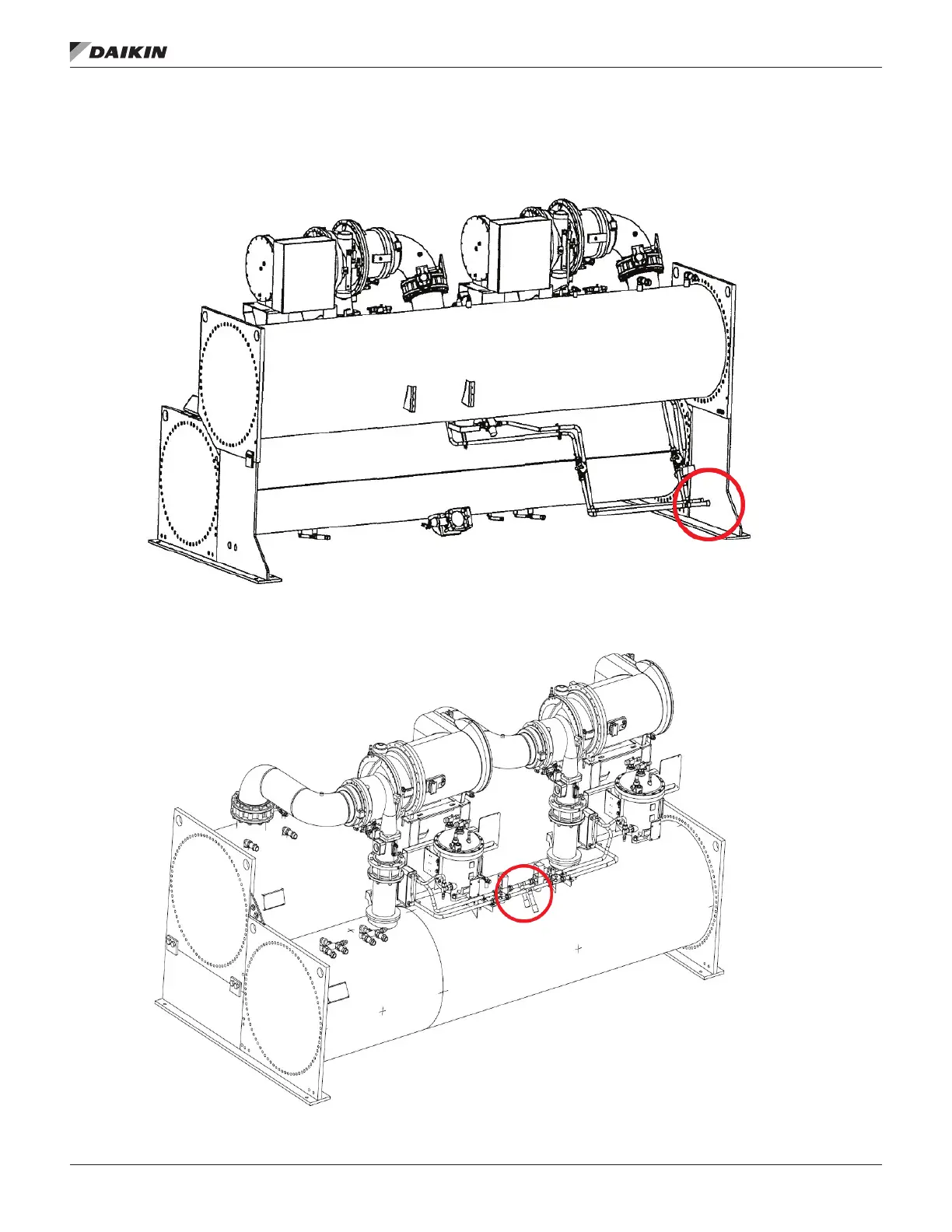

Figure 9: Oil Cooler Water Connection - Right side
Figure 10: Oil Cooler Water Connection - Middle
