Daintree GE Current WA100-PM User Manual

Installation GuideDaintree
®
Networked Wireless Adapter (WA100-PM)
16
15
Plug load control functionality for the WA100-PM is made
availablewithWA100-PMrmwareprovidedinversion3.5.3.1.
DuringtestingthePlugLoadcycleson/offinsyncwiththe
lightingload.Relaysusedtocontrolplugloadsmustbe
compliantwithUL498(AttachmentPlugandReceptacles)
or equivalent.

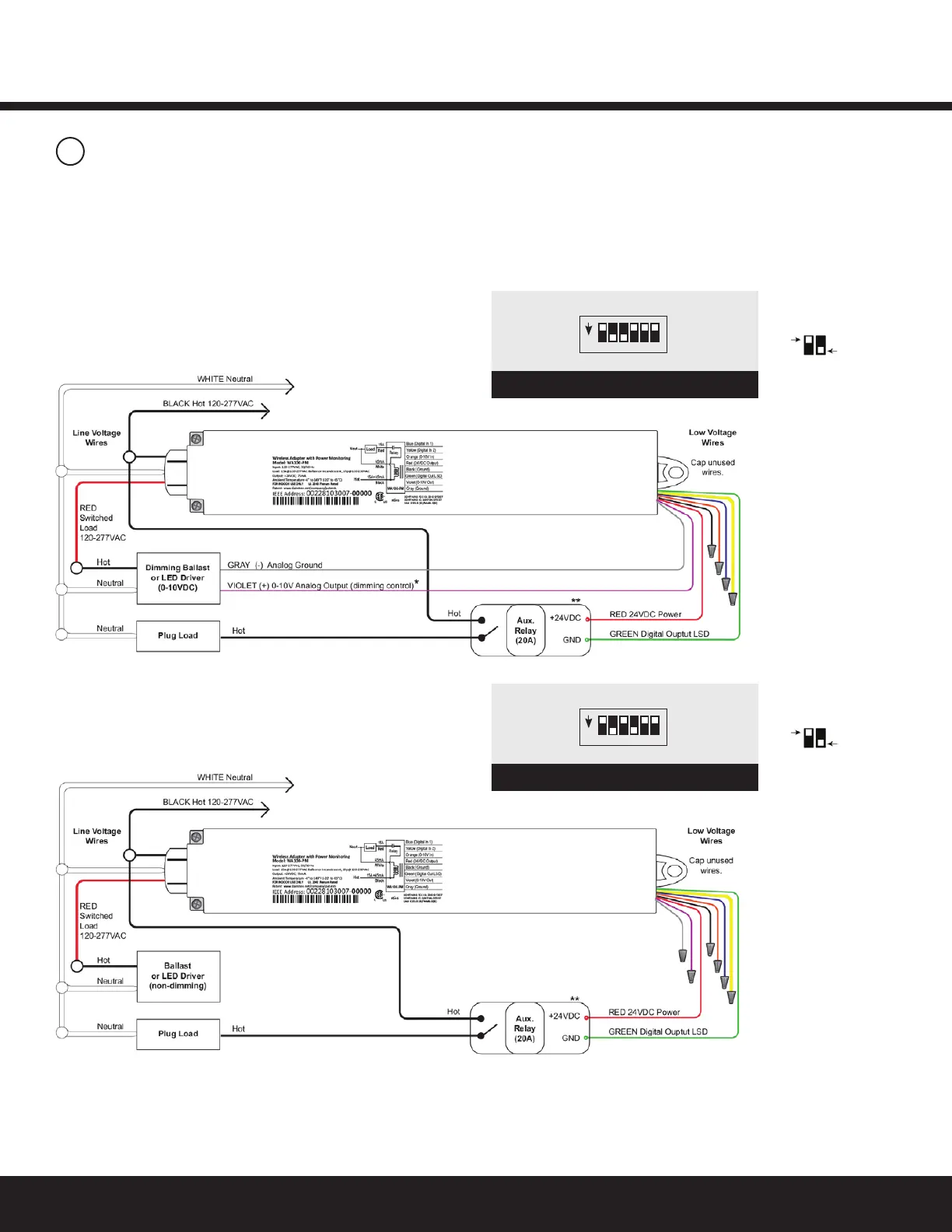

Wiring for Combination Plug Load
(Basic Aux Relay) and Dimming Light
Inthewiringdiagrambelow,theWA100-PMisusedto
controlbothadimminglightandaplugloadcircuit.
Wiring for Combination Plug Load (Basic Aux Relay)
and On/Off Light
Inthewiringdiagrambelow,theWA100-PMisusedtocontrol
bothanOn/Offlightandaplugloadcircuit.
Plug Load Applications
OFF
ON
Perform Installation Test Suite 1
DIP Switches
Driver:On/Off+
0-10V dimming.
PlugLoad:
On/Off
WiredSensor:
None
On
1 2 3 4 5 6
(#2,3 On)
Perform Installation Test Suite 1
DIP Switches
Driver:
On/Off
PlugLoad:
On/Off
WiredSensor:
None
On
1 2 3 4 5 6
(#2,4 On)
OFF
ON
*0-10VDimmingoutput,5mAavailable,Upto10LEDdriversor
 uorescentballaststypical;thechanceofnoiseonthesignal
increases with more.
**RelaysusedtocontrolplugloadsmustbecompliantwithUL498
(Attachment Plug and Receptacles) or equivalant.
