Note: The display panel on the indoor unit would look like
one of following:

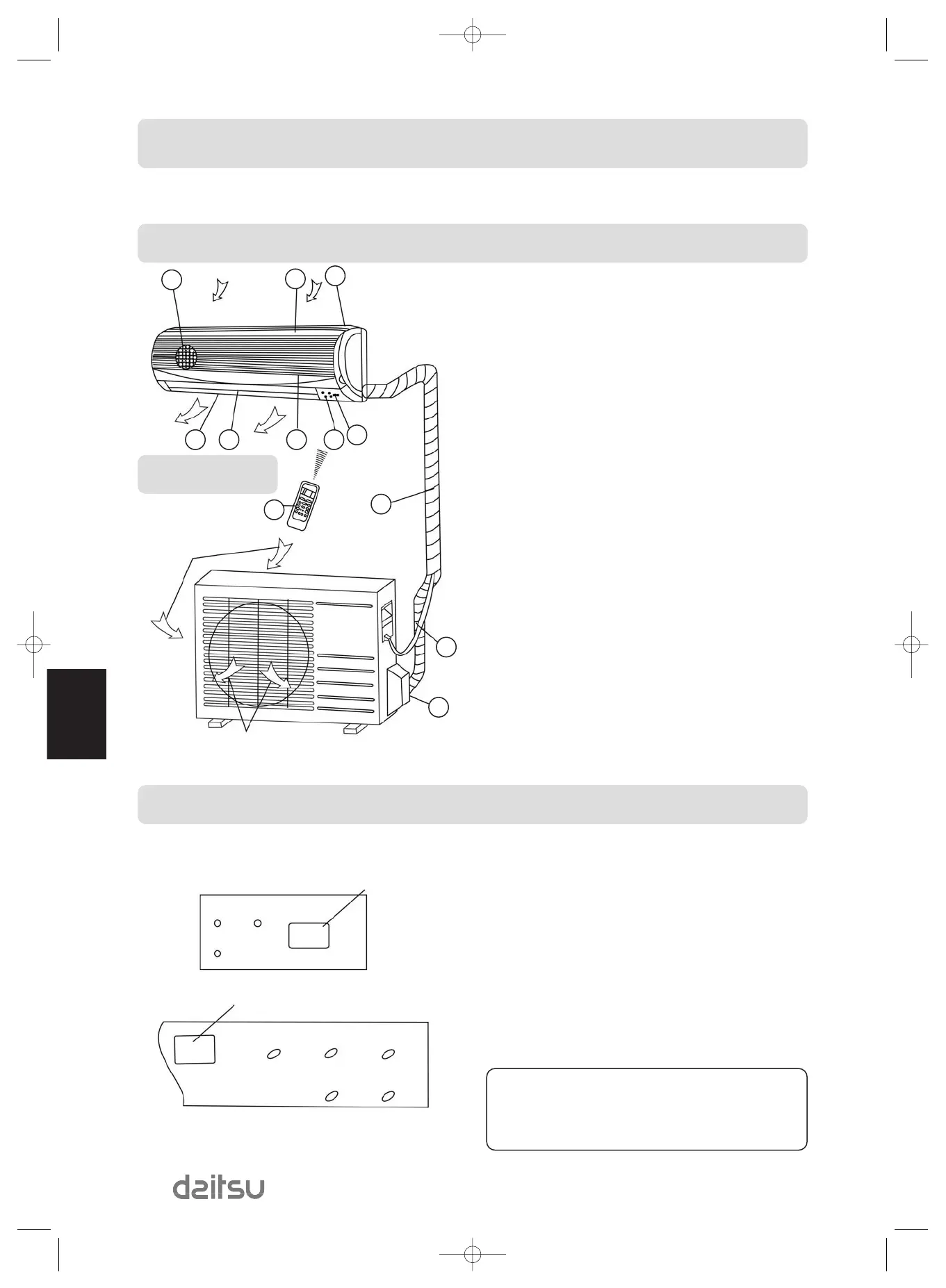

PARTS NAMES
Indoor unit
1- Front panel frame
2- Front panel
3- Air filter
4- Horizontal air flow grille
5- Vertical air flow louver
6- Room temperature sensor
7- Display panel
8- Infrared signal receiver
9- Remote controller
10- Drain hose, refrigerant connecting pipe
11- Connective cable
12- Stop valve
Display panel
OPERATION indicator:
The indicator flashes once every second after power is on
and illuminates when the air conditioner is in operation.
TIMER indicator:
The indicator illuminates when TIMER is set ON.
PRE-DEF. Indicator (For cooling& heating model only):
The air conditioner starts defrosting automatically if out-
door unit frosts in heating operating.
At this time, PRE.-DEF. Indicator illuminates.
AUTO indicator:
This indicator flashes when the air conditioner is in AUTO
operation.
ECON indicator:
This indicator illuminates while the air conditioner is in
economic operation.
Outdoor unit
Indoor unit
Display panel
12
11
10
9
4 5 6 7
8
3
2
1
Air inlet
Air outlet
Air inlet
Air outlet
Infrared signal receptor
Infrared signal receptor
TIMER OPERATION
PRE-DEF
OPERATION AUTO TIMER
ECON PRE-DEF
Note:
All the pictures in this manual are for explanation
purpose only. They may be slightly different from the air
conditioner you purchased. The actual shape shall
prevail.
